Nvidia JETSON XAVIER NX Design Guide

Modular Connector
NVIDIA Jetson Xavier NX DG-09693-001_v1.7 | 10
4.3 Module Installation and Removal
To install the Jetson Xavier NX module correctly, follow the sequence and mounting hardware
instructions:
Here are some suggested assembly guidelines.
1. Assemble any required thermal solution on the module.
2. Install the module
a) Start with baseboard that has suitable standoff to match SODIMM connector height.
b) Insert module fully at an angle of 25-35 degree into the SODIMM connector.
c) Arc down the module board until the SODIMM connector latch engages.
d) Secure the module to the baseboard with screws into the standoff/spacer. The
developer kit (shown in Figure 3 2) uses a standoff and screws to secure the module
to the system/base- board.

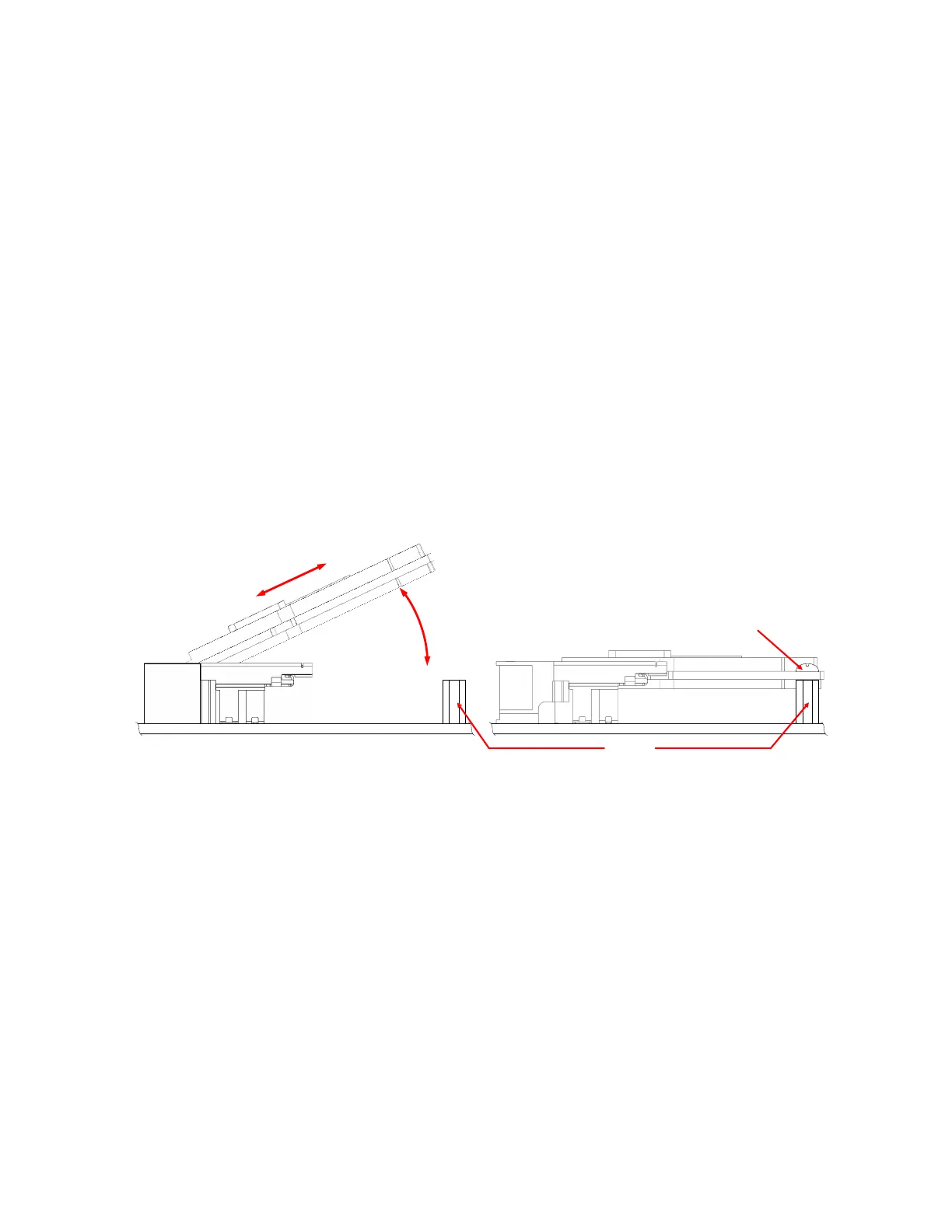

Figure 4-2. Module to Connector Assembly Diagram
Standoff
Mounting Screw
To remove the module correctly, follow the reverse of the installation sequence.

Nvidia JETSON XAVIER NX Specifications

General

Storage	16 GB eMMC 5.1
AI Performance	21 TOPS (INT8)
Operating Temperature	-25°C to 80°C
Operating System	Linux (JetPack SDK)
GPU	NVIDIA Volta architecture with 384 CUDA cores and 48 Tensor cores
CPU	6-core NVIDIA Carmel ARMv8.2 64-bit CPU 6 MB L2 + 4 MB L3
Memory	8GB 128-bit LPDDR4x
Video Decode	2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265/H.264)
Camera	Up to 6 cameras
Connectivity	Gigabit Ethernet, M.2 Key E for Wi-Fi/Bluetooth
Power	10 W / 15 W / 20 W
Dimensions	70mm x 45mm
