Nvidia JETSON XAVIER NX Design Guide

Power
NVIDIA Jetson Xavier NX DG-09693-001_v1.7 | 14

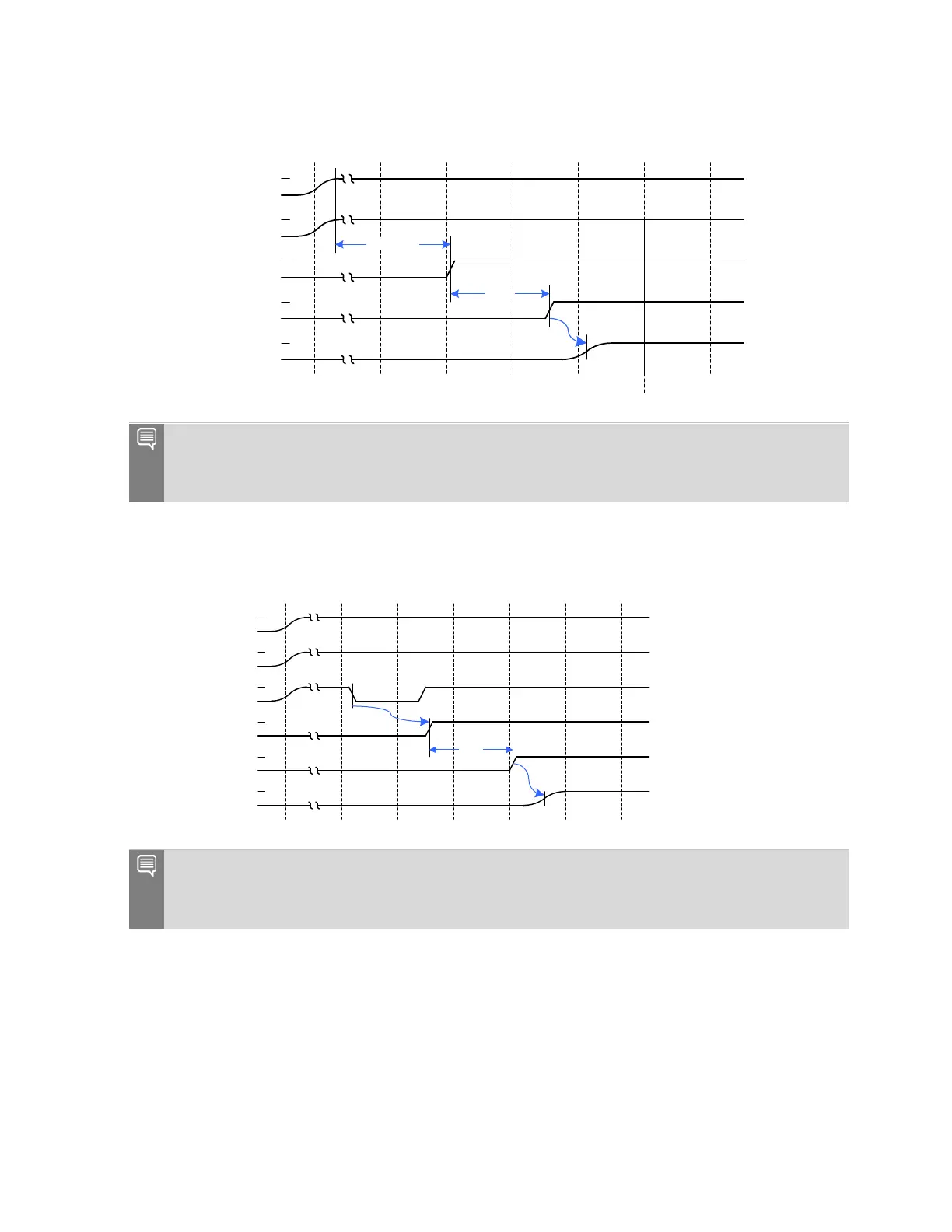

Figure 5-2. Power Up Sequence (No Power Button – Auto Power On)
POWER_E N
VDD_IN
Carrier Board Supplies
SYS_RESET*
SH UT DOW N_REQ*
~1 4ms
400ms min.
Notes:
1. SHUTDOWN_REQ* is not driven during power up. The signal is pulled to VDD_IN.
2. SYS_RESET* is driven by the PMIC during power up.
Figure 5-3. Power Up Sequence (With Power Button)
POWER_E N
VDD_IN
Carrier Board Supplies
SYS_RESET*
SHUT DOW N _REQ*
Power Button
~14ms
Note:
1. SHUTDOWN_REQ* is not driven during power up. The signal is pulled to VDD_IN.
2. SYS_RESET* is driven by the PMIC during power up.

Nvidia JETSON XAVIER NX Specifications

General

Storage	16 GB eMMC 5.1
AI Performance	21 TOPS (INT8)
Operating Temperature	-25°C to 80°C
Operating System	Linux (JetPack SDK)
GPU	NVIDIA Volta architecture with 384 CUDA cores and 48 Tensor cores
CPU	6-core NVIDIA Carmel ARMv8.2 64-bit CPU 6 MB L2 + 4 MB L3
Memory	8GB 128-bit LPDDR4x
Video Decode	2x 4K60 | 4x 4K30 | 8x 1080p60 | 16x 1080p30 (H.265/H.264)
Camera	Up to 6 cameras
Connectivity	Gigabit Ethernet, M.2 Key E for Wi-Fi/Bluetooth
Power	10 W / 15 W / 20 W
Dimensions	70mm x 45mm
