MIPI CSI Video Input
NVIDIA Jetson Xavier NX DG-09693-001_v1.7 | 56

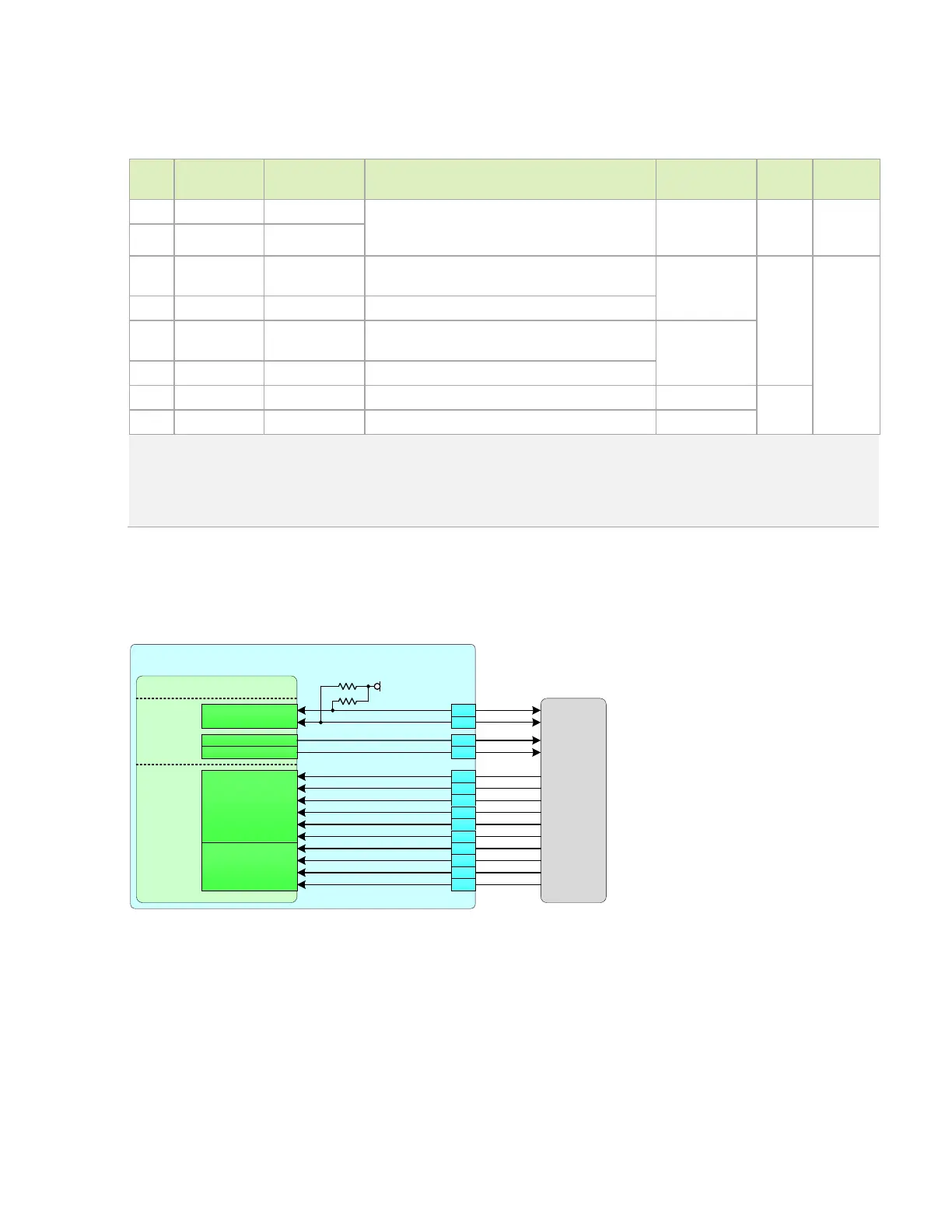

Table 9-2. Camera Miscellaneous Pin Descriptions
Pin #
Module Pin
Name
Xavier Signal Usage/Description
Recommended
Usage
Directio
n
Pin Type
213 CAM_I2C_SCL CAM_I2C_SCL
Camera I2C. 2.2kΩ pull-up to 3.3V on the module.
Cameras
(shared)
Bidir
Open
Drain –
3.3V
215 CAM_I2C_SDA CAM_I2C_SDA
116 CAM0_MCLK
EXTPERIPH1_C
LK
Camera 0 Reference Clock
Camera #1
Output
CMOS –
1.8V
114 CAM0_PWDN SOC_GPIO04 Camera 0 Powerdown or GPIO
122 CAM1_MCLK
EXTPERIPH2_C
LK
Camera 1 Reference Clock
Camera #2
120 CAM1_PWDN SOC_GPIO05 Camera 1 Powerdown or GPIO
118 GPIO01 SOC_GPIO41 GPIO #1 or Generic Clock Output #1 Camera #3
Output
(note)
216 GPIO11 SOC_GPIO42 GPIO #11 or Generic Clock Output #2 Camera #4
Notes:
1. In the Type/Dir column, Output is from Jetson Xavier NX. Input is to Jetson Xavier NX. Bidir is for Bidirectional signals.
2. The direction shown in this table for CAM[1:0]_MCLK and CAM[1:0]_PWDN is true when used for those functions. These pins are
GPIOs and can support input or output (bidirectional). The direction indicated for GPIO01 and GPIO11 is associated with their use
as clock outputs.
Figure 9-1. 4 Lane CSI Camera Connection Example
Came ra
Module
4-lane CSI
Jetson
SoC
CAM
CAM_I2C_SCL
CAM_I2C_SDA
EXTPERIPH1_CLK
SOC_GPIO04
2. 2kΩ
2. 2kΩ
VDD_3 V3_SY S
CAM_I2C_SCL
CAM_I2C_SDA
CAM0_MCLK
CAM0_PWDN
215
116
114
213
DS I/CSI
CSI_E_CLK_ P
CSI_E_CLK_
N
CSI_E_D0_P
CSI_E
_D0_N
CSI_E_D1_P
CSI_E_D1_N
CSI_F
_D0_P
CSI_F_D0_N
CSI_F_D1_P
CSI_F
_D1_N
54
CSI4_CLK_P
CSI4_CLK_N
CSI4_D0_P
CSI4_D0_N
CSI4_D1_P
CSI4_D1_N
CSI4_D2_P
CSI4_D2_N
CSI4_D3_P
CSI4_D3_N
52
48
46
60
58
42
40
66
64
