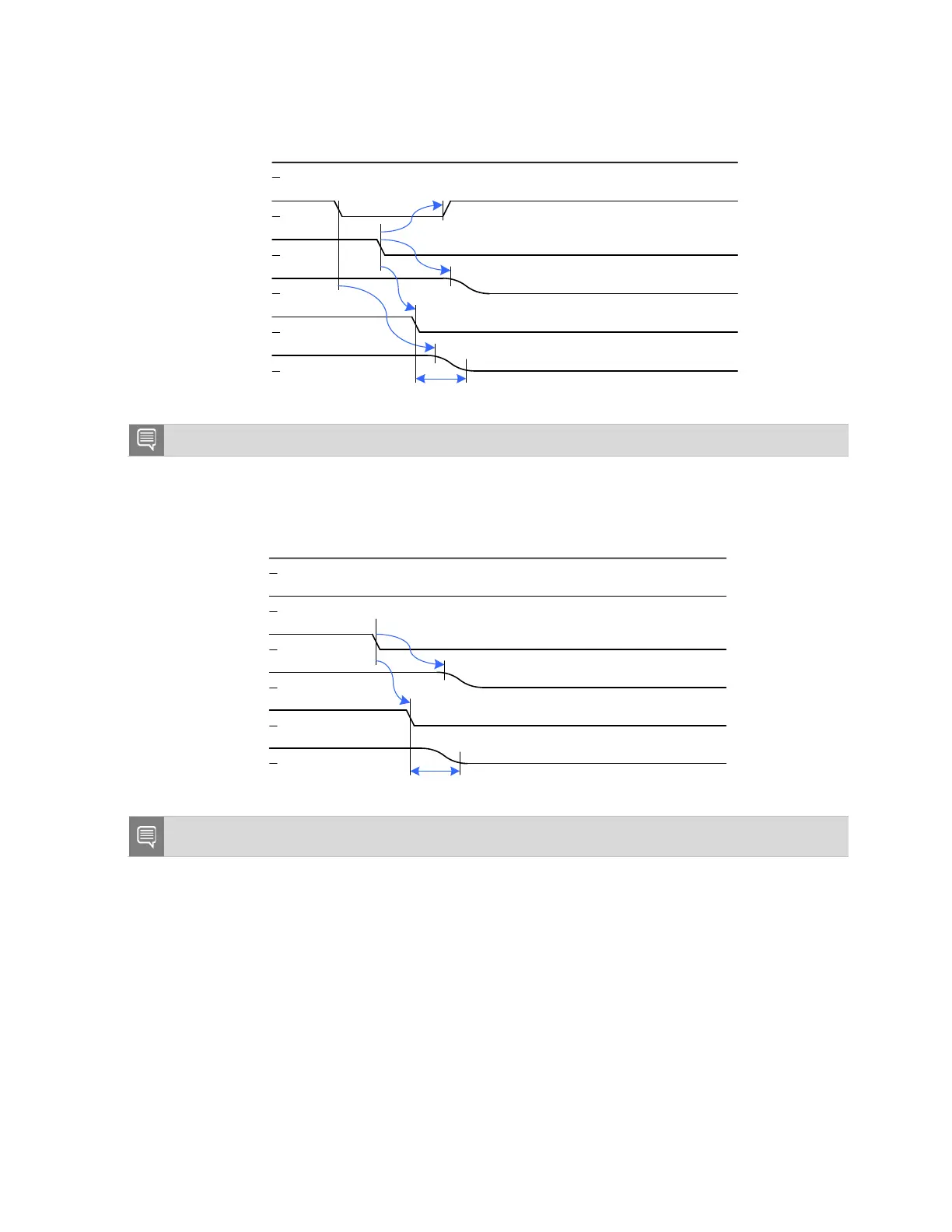

Figure 5-4. Power Down (Initiated by SHUTDOWN_REQ* Assertion)
POWER_E N
SH UT DOW N_REQ*
VDD_IN
Carrier Board Supplies
Modu le Power
SYS_RESET*
3.3V: T < 1.5mS
1.8V: T < 4mS
Note: SYS_RESET* is driven by the PMIC during power down.
Figure 5-5. Power Down (Initiated by POWER_EN De-assertion)
POWER_E N
SH UT DOW N_REQ*
VDD_IN
Carrier Board Supplies
Module P ower
SYS_RESET*
3.3V: T < 1.5mS
1.8V: T < 4mS
Note: SYS_RESET* is driven by the PMIC during power down.
