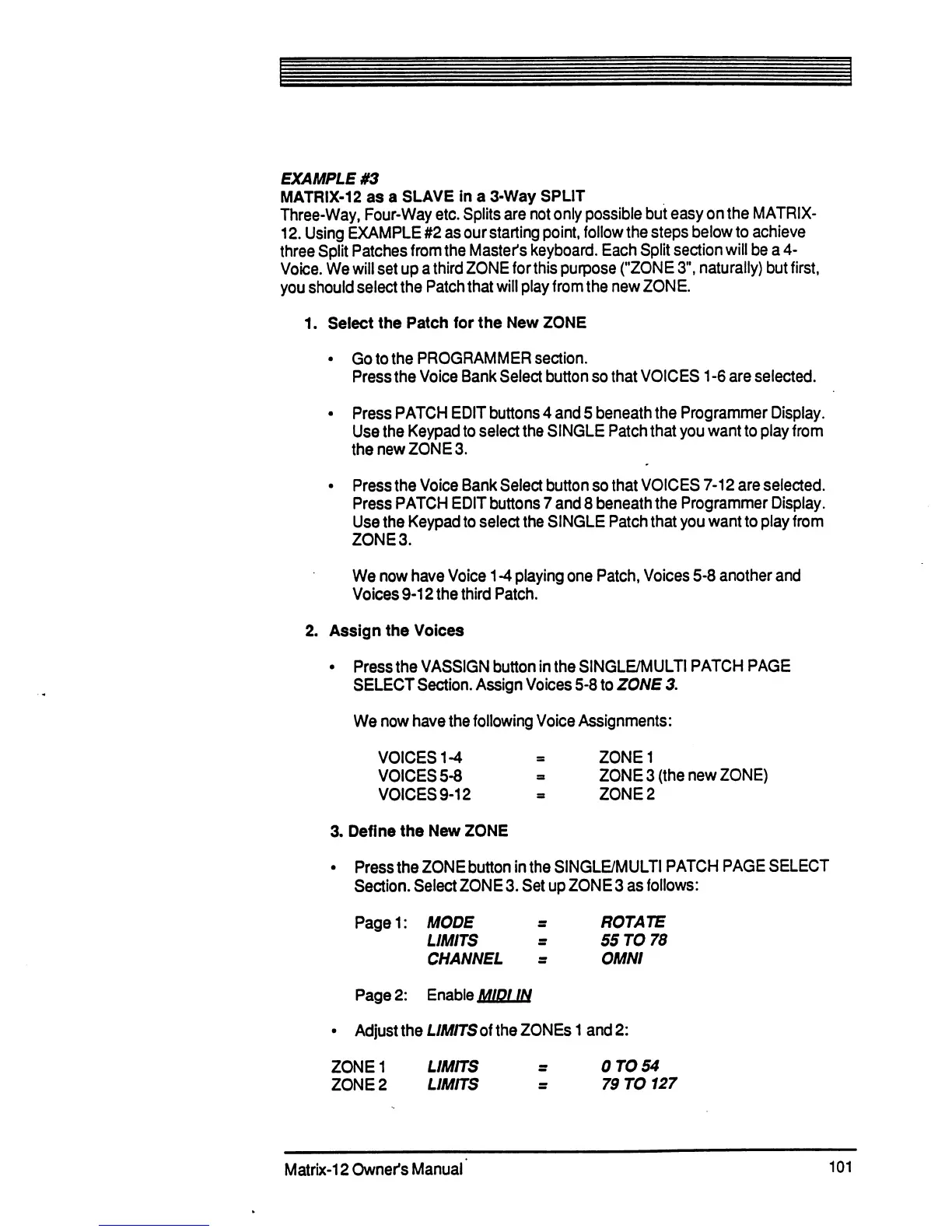

EXAMPLE #3
MATRIX-12 as a SLAVE in a 3-Way SPLIT
Three-Way, Four-Way etc. Splits are not only possible but easy on the MATRIX-
12. Using EXAMPLE #2 as our starting point, follow the steps below to achieve
three Split Patches from the Master's keyboard. Each Split section will be a 4-
Voice. We will set up a third ZONE forthis purpose ("ZONE 3", naturally) but first,
you should select the Patch that will play from the new ZON E.
1. Select the Patch for the New ZONE
• Go to the PROGRAMMER section.
Press the Voice Bank Select button so that VOICES 1-6 are selected.
• Press PATCH EDIT buttons 4 and 5 beneath the Programmer Display.
Use the Keypad to select the SINGLE Patch that you want to play from
the new ZONE 3.
• Press the Voice Bank Select button so that VOICES 7-12 are selected.
Press PATCH EDIT buttons 7 and 8 beneath the Programmer Display.
Use the Keypad to select the SINGLE Patch that you want to play from
ZONE 3.
We now have Voice 1 -4 playing one Patch, Voices 5-8 another and
Voices 9-12 the third Patch.
2. Assign the Voices
• Press the VASSIGN button in the SINGLE/MULTI PATCH PAGE
SELECT Section. Assign Voices 5-8 to ZONE 3.
We now have the following Voice Assignments:
VOICES 1-4 = ZONE1
VOICES 5-8 = ZONE 3 (the new ZONE)
VOICES 9-12 = ZONE 2
3. Define the New ZONE
• Press the ZONE button in the SINGLE/MULTI PATCH PAGE SELECT
Section. Select ZONE 3. Set up ZONE 3 as follows:
Pagei: MODE = ROTATE
LIMITS = 55 TO 78
CHANNEL = OMNI
Page 2: Enable MIDI IN
• Adjustthe LIMITS of the ZONEs 1 and 2:
ZONE1 LIMITS = 0TO54
ZONE 2 LIMITS = 79 T0127
