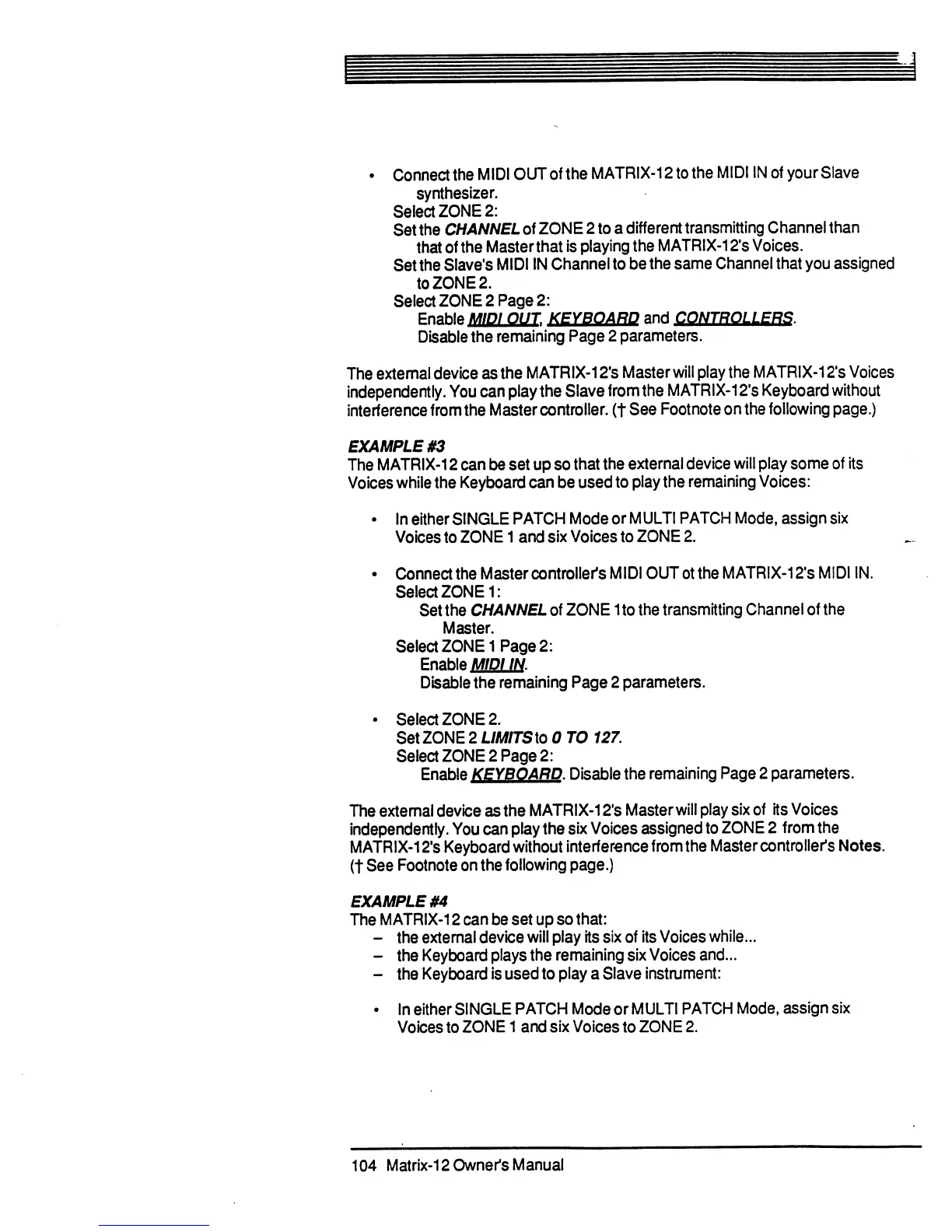

Oberheim Matrix-12 - Page 104

• Connect the MIDI OUT of the MATRIX-12 to the MIDI IN of your Slave
synthesizer.
Select ZONE 2:
Set the CHANNEL of ZONE 2 to a different transmitting Channel than
that of the Master that is playing the MATRIX-12's Voices.
Set the Slave's MIDI IN Channel to be the same Channel that you assigned
to ZONE 2.
Select ZONE 2 Page 2:
Enable MIDI OUT KEYBOARD and CONTROLLERS.
Disable the remaining Page 2 parameters.
The external device as the MATRIX-12's Master will play the MATRIX-12's Voices
independently. You can play the Slave from the MATRIX-12's Keyboard without
interference from the Master controller, (t See Footnote on the following page.)
EXAMPLE #3
The MATRIX-12 can be set up so that the external device will play some of its
Voices while the Keyboard can be used to play the remaining Voices:
• In either SINGLE PATCH Mode or MULTI PATCH Mode, assign six
Voices to ZONE 1 and six Voices to ZONE 2.
• Connect the Master controller's MIDI OUT ot the MATRIX-12's MIDI IN.
Select ZONE 1:
Set the CHANNEL of ZONE 1 to the transmitting Channel of the
Master.
Select ZONE 1 Page 2:
Enable MIDI IN
Disable the remaining Page 2 parameters.
• Select ZONE 2.
Set ZONE 2 UMITSlo 0 TO 127.
Select ZONE 2 Page 2:
Enable KEYBOARD. Disable the remaining Page 2 parameters.
The external device as the MATRIX-12's Master will play six of its Voices
independently. You can play the six Voices assigned to ZONE 2 from the
MATRIX-12's Keyboard without interference from the Master controller's Notes.
(t See Footnote on the following page.)
EXAMPLE #4
The MATRIX-12 can be set up so that:
- the external device will play its six of its Voices while...
- the Keyboard plays the remaining six Voices and...
- the Keyboard is used to play a Slave instrument:
• In either SINGLE PATCH Mode or MULTI PATCH Mode, assign six
Voices to ZONE 1 and six Voices to ZONE 2.
