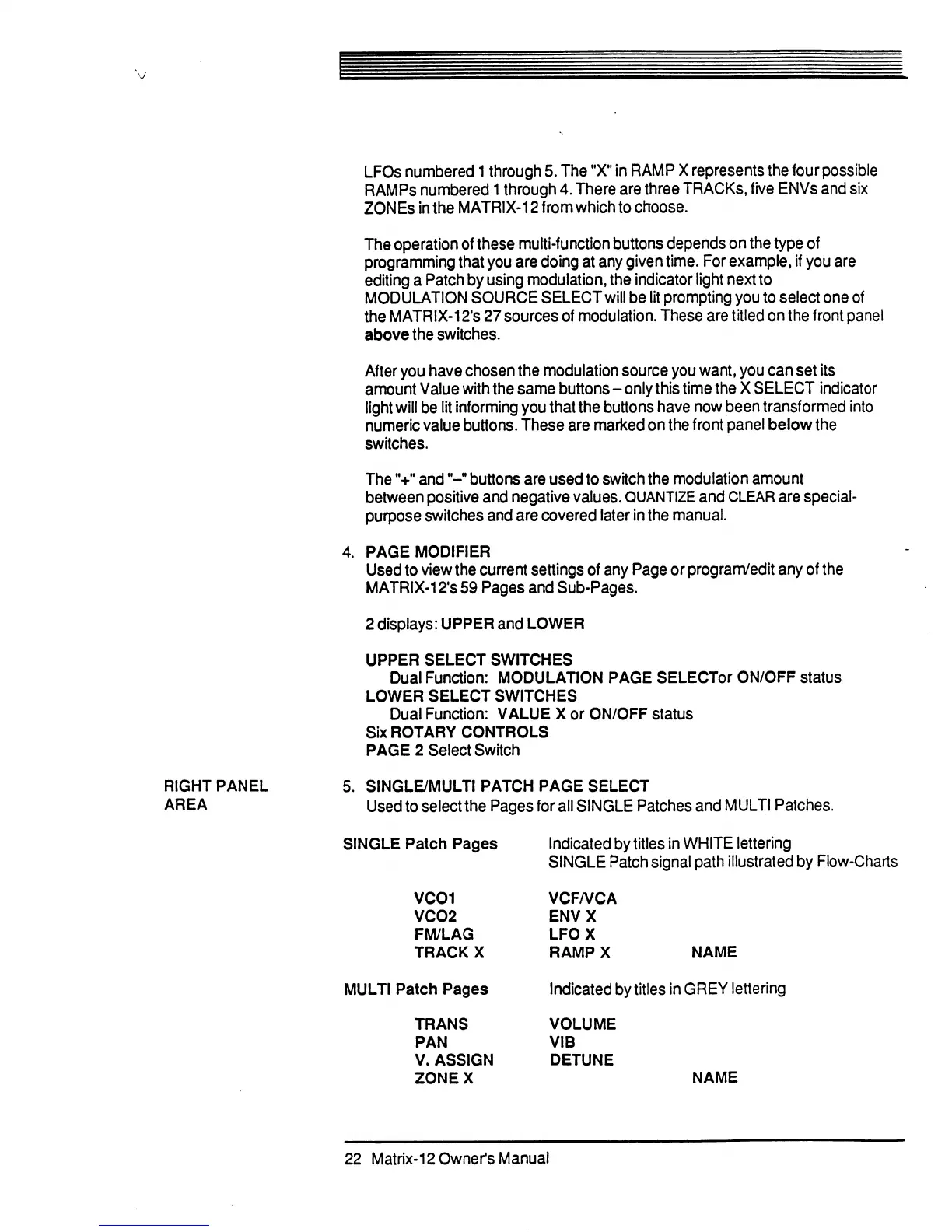

LFOs numbered 1 through 5. The MXfl in RAMP X represents the four possible
RAMPs numbered 1 through 4. There are three TRACKS, five ENVs and six
ZONEs in the MATRIX-12 from which to choose.
The operation of these multi-function buttons depends on the type of
programming that you are doing at any given time. For example, if you are
editing a Patch by using modulation, the indicator light next to
MODULATION SOURCE SELECT will be lit prompting you to select one of
the MATRIX-12's 27 sources of modulation. These are titled on the front panel
above the switches.
After you have chosen the modulation source you want, you can set its
amount Value with the same buttons - only this time the X SELECT indicator
light will be lit informing you that the buttons have now been transformed into
numeric value buttons. These are marked on the front panel below the
switches.
The V and"-" buttons are used to switch the modulation amount
between positive and negative values. QUANTIZE and CLEAR are special-
purpose switches and are covered later in the manual.
4. PAGE MODIFIER
Used to view the current settings of any Page or program/edit any of the
MATRIX-12's 59 Pages and Sub-Pages.
2 displays: UPPER and LOWER
UPPER SELECT SWITCHES
Dual Function: MODULATION PAGE SELECTor ON/OFF status
LOWER SELECT SWITCHES
Dual Function: VALUE X or ON/OFF status
Six ROTARY CONTROLS
PAGE 2 Select Switch
RIGHT PANEL 5. SINGLBMULTI PATCH PAGE SELECT
AREA Used to select the Pages for all SINGLE Patches and MULTI Patches.
SINGLE Patch Pages Indicated by titles in WHITE lettering
SINGLE Patch signal path illustrated by Flow-Charts
VCO1 VCF/VCA
VCO2 ENV X
FM/LAG LFO X
TRACK X RAMP X NAME
MULTI Patch Pages Indicated by titles in GREY lettering
TRANS VOLUME
PAN VIB
V. ASSIGN DETUNE
ZONE X NAME
22 Matrix-12 Owner's Manual
