LEFT LF2 LF1 MID RT1 RT2 RIGHT
(OFF)

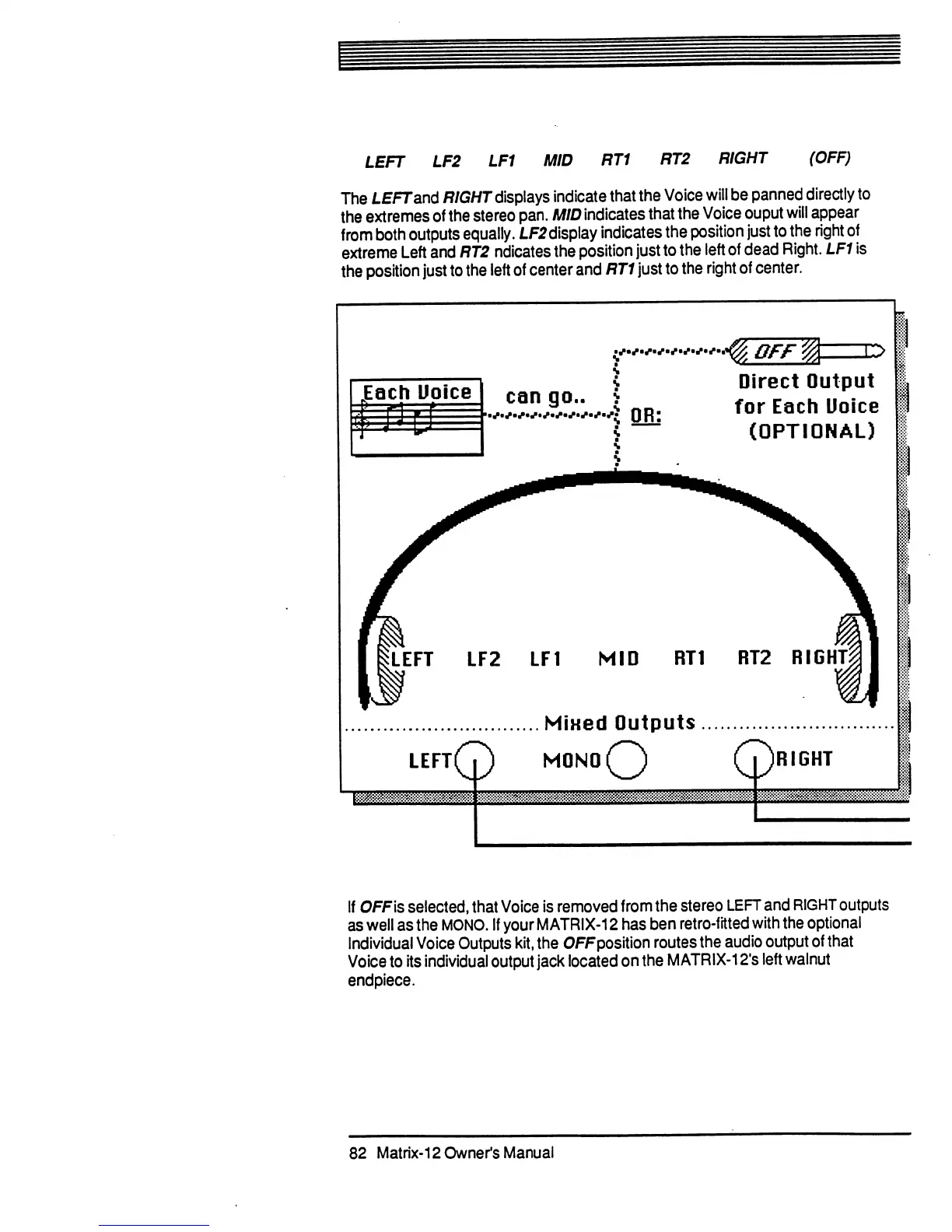

The LEFTand RIGHT displays indicate that the Voice will be panned directly to
the extremes of the stereo pan. MID indicates that the Voice ouput will appear
from both outputs equally. LFZdisplay indicates the position just to the right of
extreme Left and RT2 ndicates the position just to the left of dead Right. LF1 is
the position just to the left of center and RT1 just to the right of center.
OFF y
i
ach Uoice
S
can go.. ?
Direct Output
for Each Uoice
(OPTIONAL)
Mined Outputs
LEFT
)RIGHT
If OFFis selected, that Voice is removed from the stereo LEFT and RIGHT outputs
as well as the MONO. If your M ATRIX-12 has ben retro-fitted with the optional
Individual Voice Outputs kit, the OFFposition routes the audio output of that
Voice to its individual output jack located on the M ATRIX-12's left walnut
endpiece.
