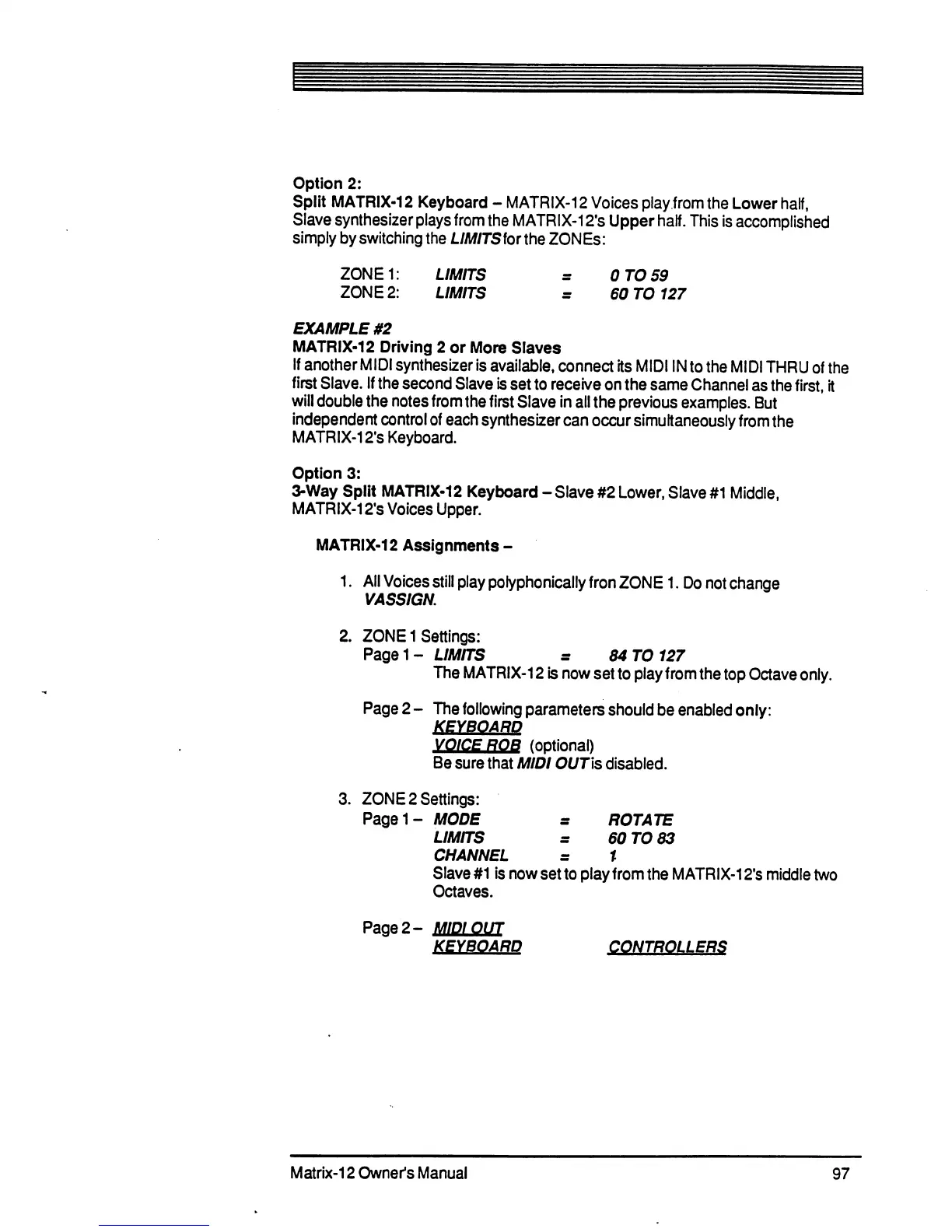

Oberheim Matrix-12 - Page 97

Option 2:
Split MATRIX-12 Keyboard - MATRIX-12 Voices play from the Lower half,
Slave synthesizer plays from the MATRIX-12's Upper half. This is accomplished
simply by switching the L/M/TSforthe ZONEs:
ZONE1: LIMITS = 0 TO 59
ZONE 2: LIMITS = 60 T0127
EXAMPLE #2
MATRIX-12 Driving 2 or More Slaves
If another MIDI synthesizer is available, connect its MIDI IN to the MIDI THRU of the
first Slave. If the second Slave is set to receive on the same Channel as the first, it
will double the notes from the first Slave in all the previous examples. But
independent control of each synthesizer can occur simultaneously from the
MATRIX-12's Keyboard.
Option 3:
3-Way Split MATRIX-12 Keyboard -Slave#2 Lower, Slave#1 Middle,
MATRIX-12's Voices Upper.
MATRIX-12 Assignments -
1. All Voices still play polyphonically fron ZONE 1. Do not change
VASSIGN.
2. ZONE 1 Settings:
Pagei- LIMITS = 84 T0127
The MATRIX-12 is now set to play from the top Octave only.
Page 2 - The following parameters should be enabled only:
KEYBOARD
VOICE rob (optional)
Be sure that MIDI OUTls disabled.
3. ZONE 2 Settings:
Pagei- MODE > ROTATE
LIMITS = 60 TO 83
CHANNEL = %
Slave #1 is now set to play from the M ATRIX-12's middle two
Octaves.
Page 2- midi our
KEYBOARD CONTROLLERS
