Olympus SLIDEVIEW VS200 - Removing transportation lock from stage

9 Unboxing
This chapter describes how to remove the transportation locks from the VS200 scan-
ner after shipping.
ATTENTION
The transportation locks must be remounted each time before the unit is trans-
ported. Make absolutely sure not to lose the transportation locks and the
mounting material.
ATTENTION
Mögliche Geräteschäden durch Inbetriebnahme mit montierten Trans-
portsicherungen!
Wird der Scanner in Betrieb genommen, ohne dass zuvor die Trans-
portsicherungen vollständig demontiert wurden, kann es zu Geräteschäden
kommen.
Demontieren Sie vor Inbetriebnahme des Scanners unbedingt alle Trans-
portsicherungen!
9.2.1 Removing transportation lock from stage
The units described below must be assembled and adjusted by Olympus. If these units are
assembled or adjusted by the customer, the operations are not ensured.
Hex screwdriver (size 2.5mm)
1. Go to the right side of the scanner.

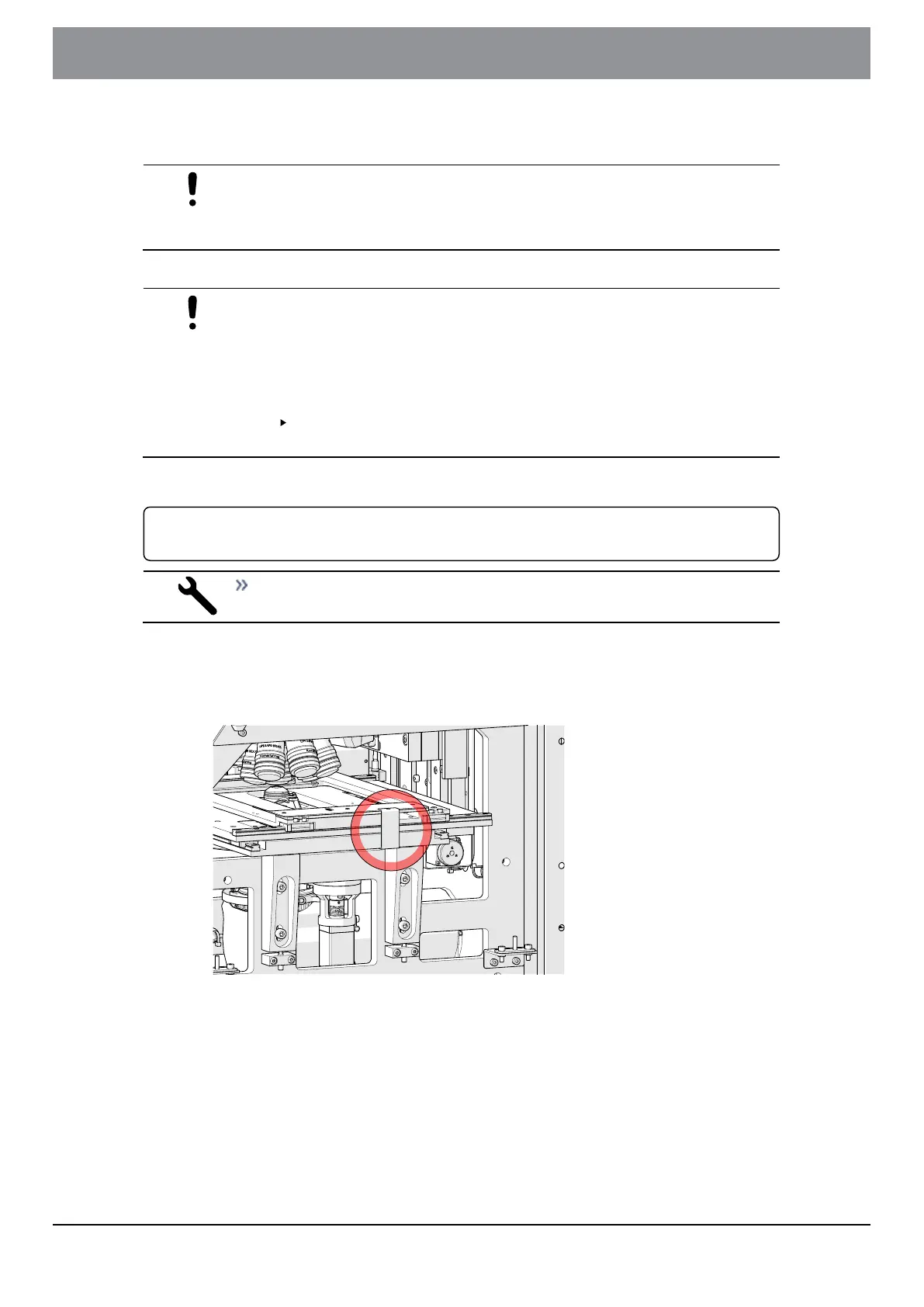

2. Remove the red transportation lock from the microscope stage. To do so,
remove the 2 hex screws (size 2.5mm).
Sideview
- 27 -
Instructions for useOLYMPUS VS200 System
