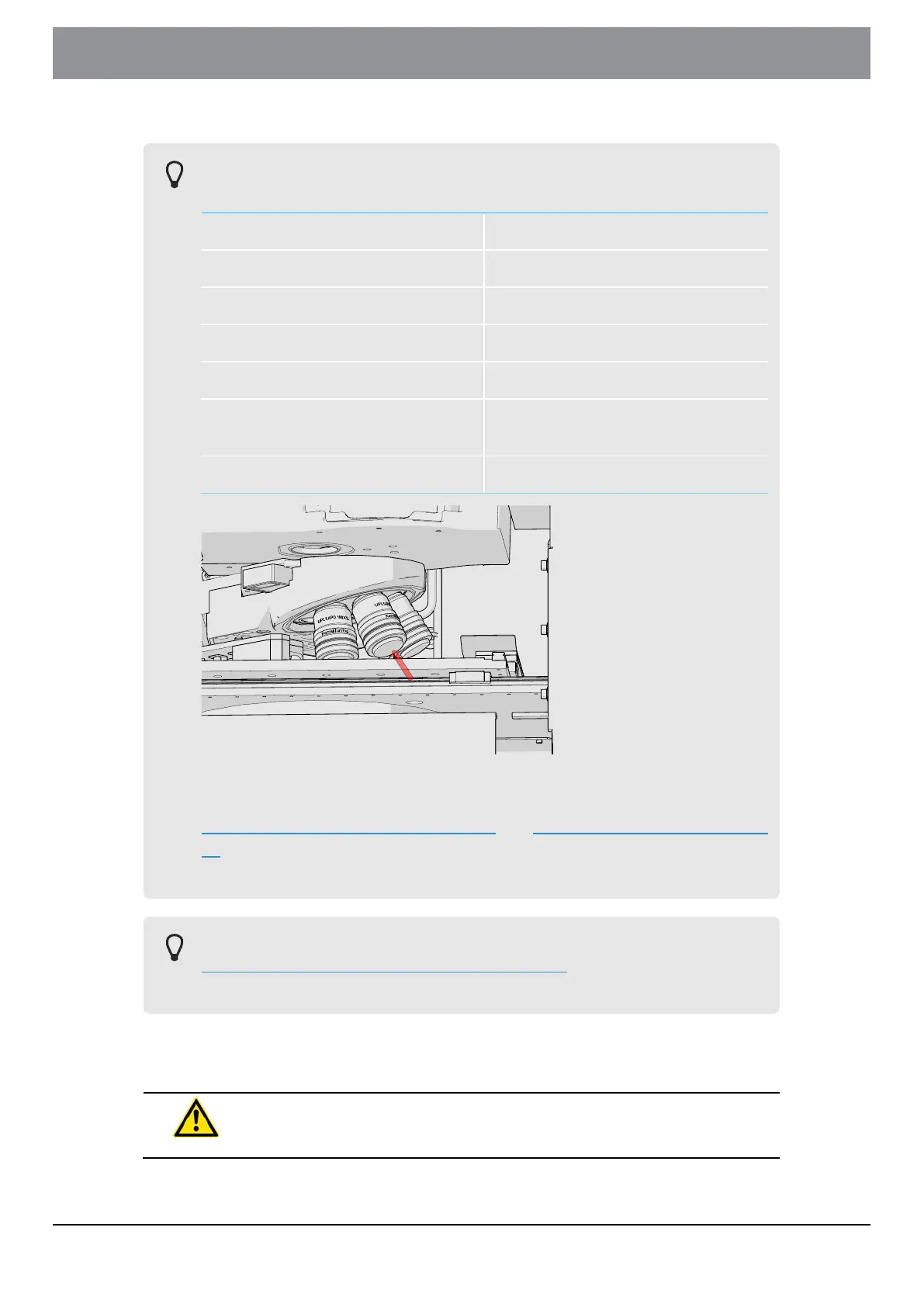

Position list for objectives
The position of the nosepiece is indicated at the center of the IX3-
nosepiece.
Nosepiece position Objective
1 2x PLN
2 20x UPLXAPO
3 10x UPLXAPO
4 40x UPLXAPO
5 Any immersion objective or phase contrast
objective
6 4x UPLFLN
If you mount objectives in a different order you must subsequently adjust
all device settings and observation methods. In this case refer to chapter
Device settings - objectives auf Seite 87 and Device customization auf Seite
90.
If you have a brightfield system only please continue with chapter
Assembly of the housing for scanner auf Seite 62.
10.1.2 Immersion Objectives
Pay attention to the following notes when using an immersion medium.
CAUTION
Certain immersion media can contain harmful substances. Make sure to read
the manufacturer's safety data sheet before using your immersion medium.
- 38 -
Instructions for use
10 Mounting of components
OLYMPUS VS200 System
