14 Assembly of the loader housing
2. Subsequently tighten all other knurled screws.
14.3 Front panels
The units described below must be assembled and adjusted by Olympus. If these units are
assembled or adjusted by the customer, the operations are not ensured.

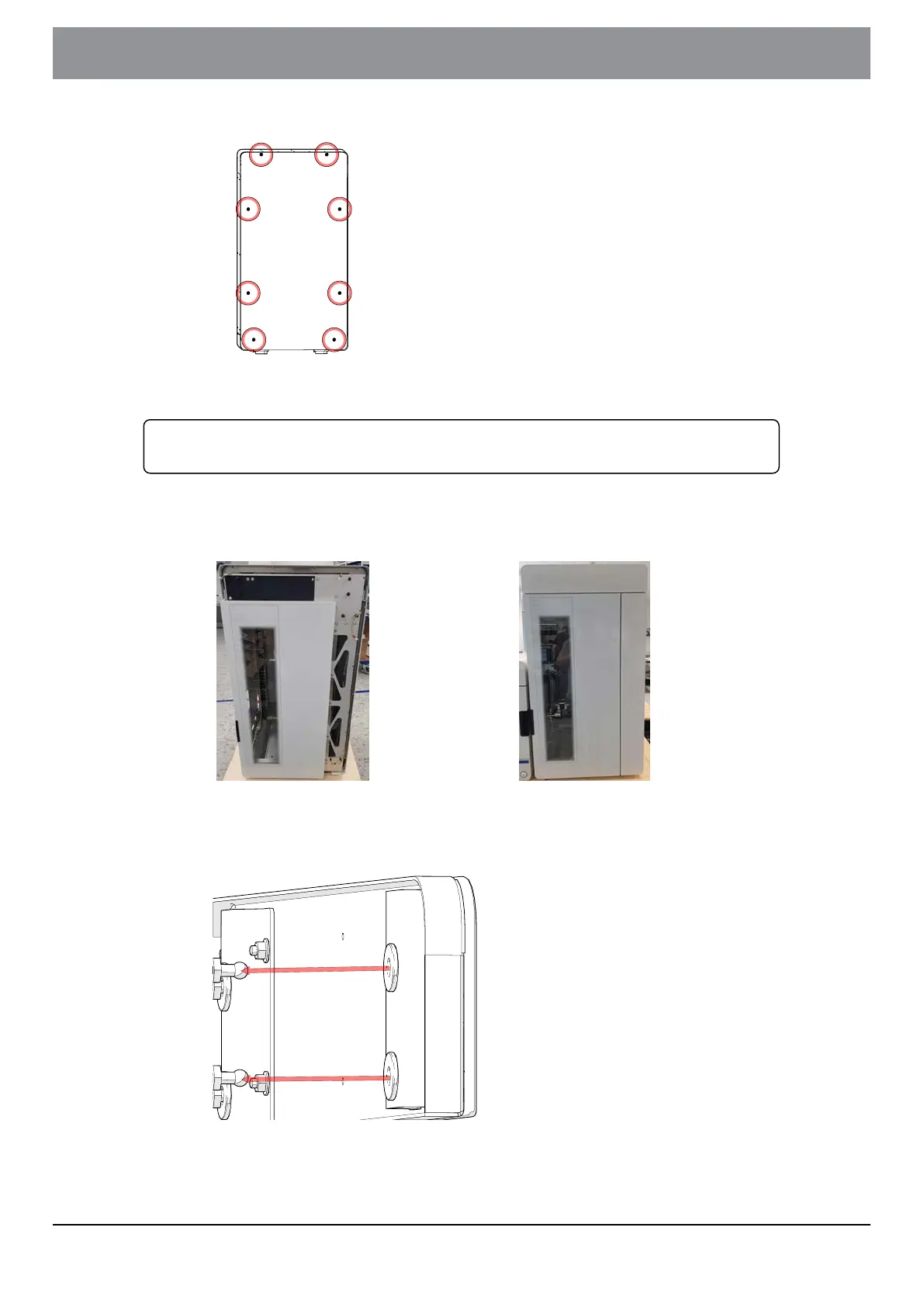

1. Mount the horizontal and vertical front panel as described in the following
steps.
Before After
2. Connect the two grounding flags to the horizontal panel and push the
panel towards the system so that the quick lock sockets of the panel fit
onto the quick lock pins of the loader.
- 73 -
Instructions for useOLYMPUS VS200 System
