9 Unboxing

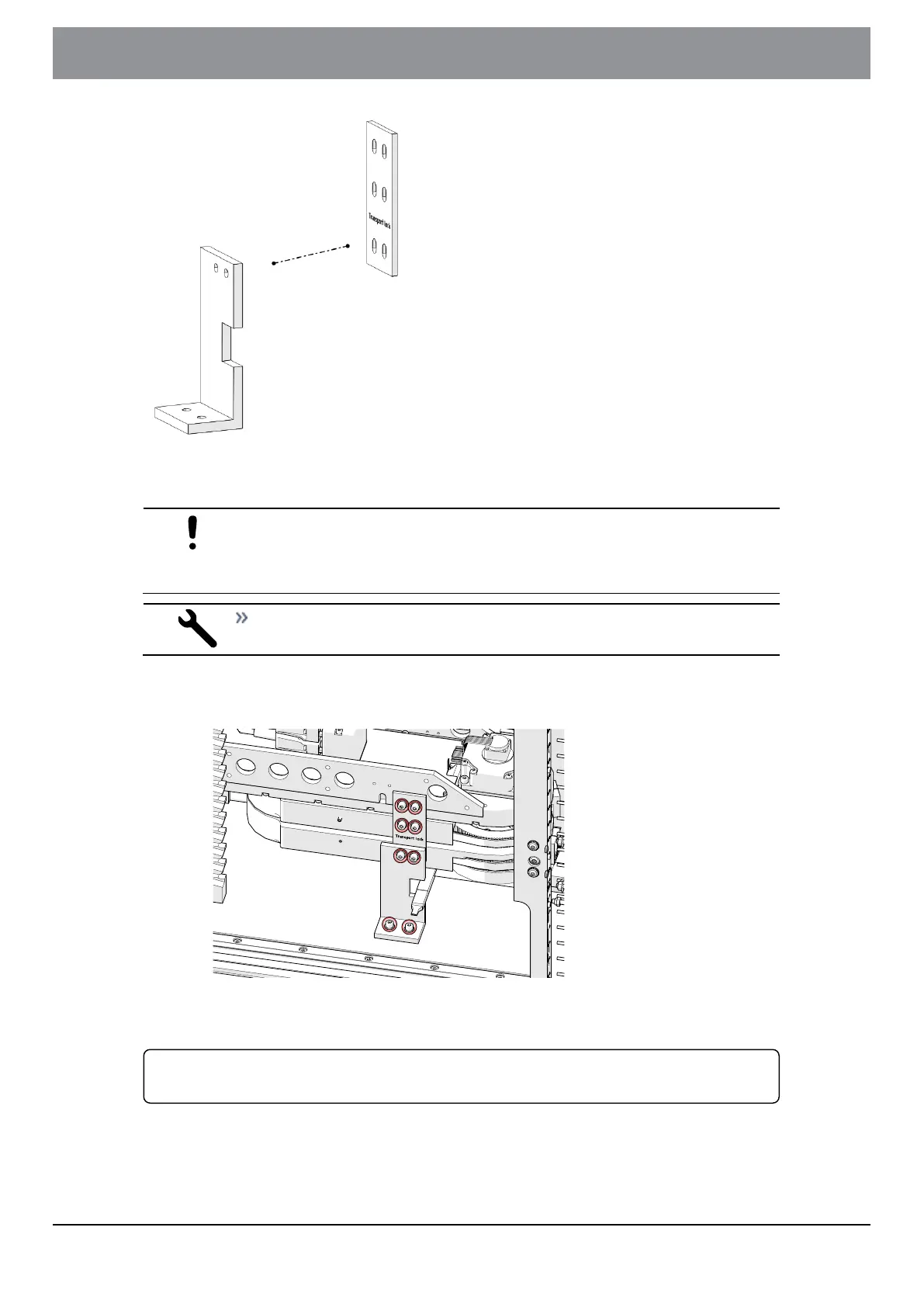

Transportation lock (2) and (3)
ATTENTION
The transportation locks must be remounted each time before the unit is trans-
ported. Make absolutely sure not to lose the transportation locks and the
mounting material.
Hex screwdriver (size 3mm)
1. Remove the red two-part transportation locks from the SCARA robot arm.
To do so, loosen the 8 hex screws (size 3 mm) indicated in the figure.
9.4.3 Removing transportation lock from SCARA robot arm’s coun-
terweight
The units described below must be assembled and adjusted by Olympus. If these units are
assembled or adjusted by the customer, the operations are not ensured.
- 35 -
Instructions for useOLYMPUS VS200 System
