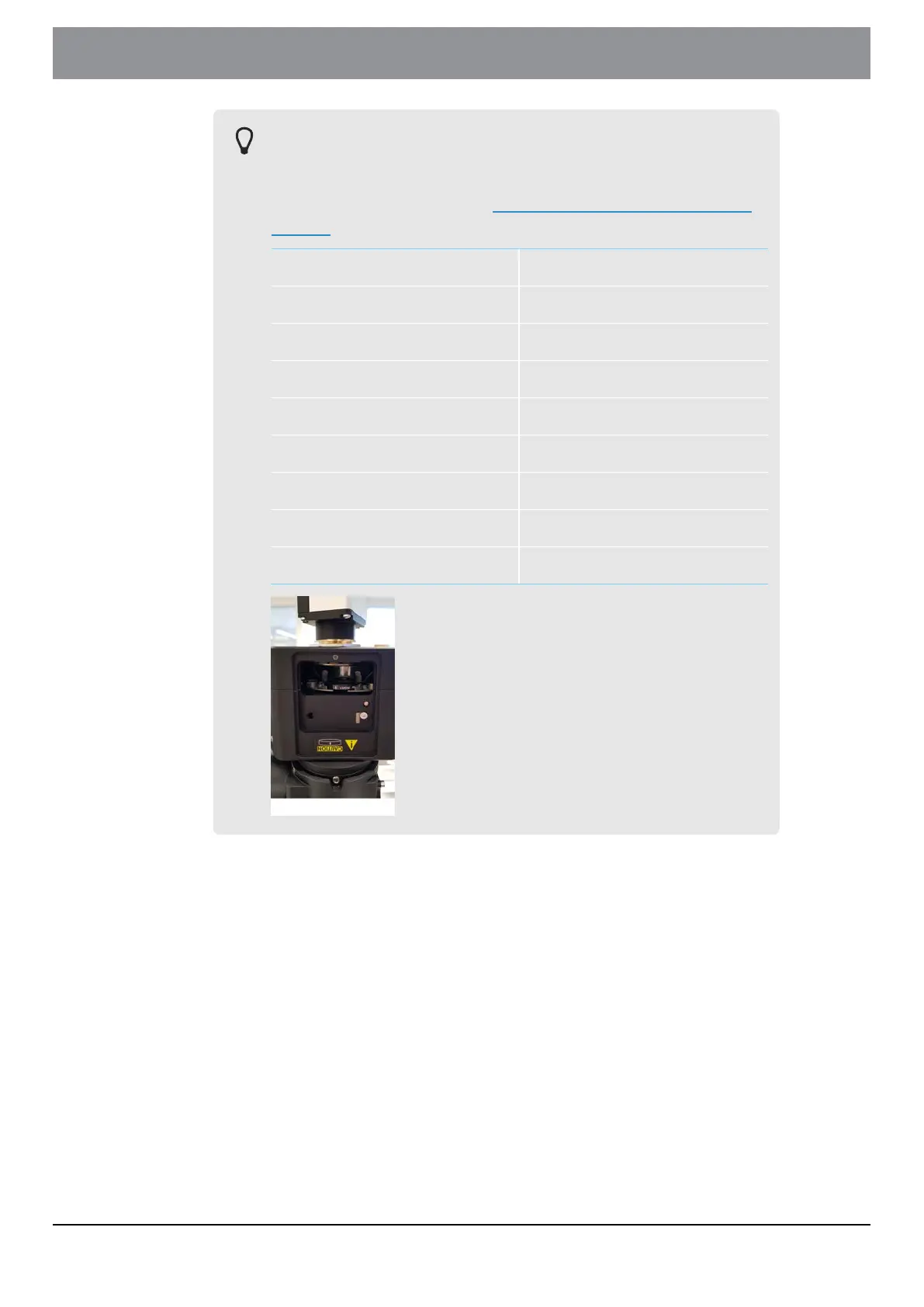

Before you mount the U-FFWO T3, make sure you insert all emis-
sion filters into the filter wheel. Note the position of the individual
filters as you might need them later for the observation method
adjustment. Refer to chapter Add or replace filter (U-FFWO) auf
Seite 51 for filter orientation.
U-FFWO T3 position 25 mm emission filter
1 DAPI 432/36
2 FITC 515/30
3 CY3 595/31
4 CY5 680/42
5 CY7
6 Black-out filter
7 Black-out filter
8 25 mm Glass
2. Refer to the U-FFWO instruction manual to chapter [Inserting the Optical
Filters] for more information about filter insertion.
3. Mount the U-FFWO T3 with the cable connector facing to the left side onto
the beam splitter and tighten the headless hex screw (3.0 mm) facing
towards the front.
- 50 -
Instructions for use
11 Mounting fluorescence components
OLYMPUS VS200 System
