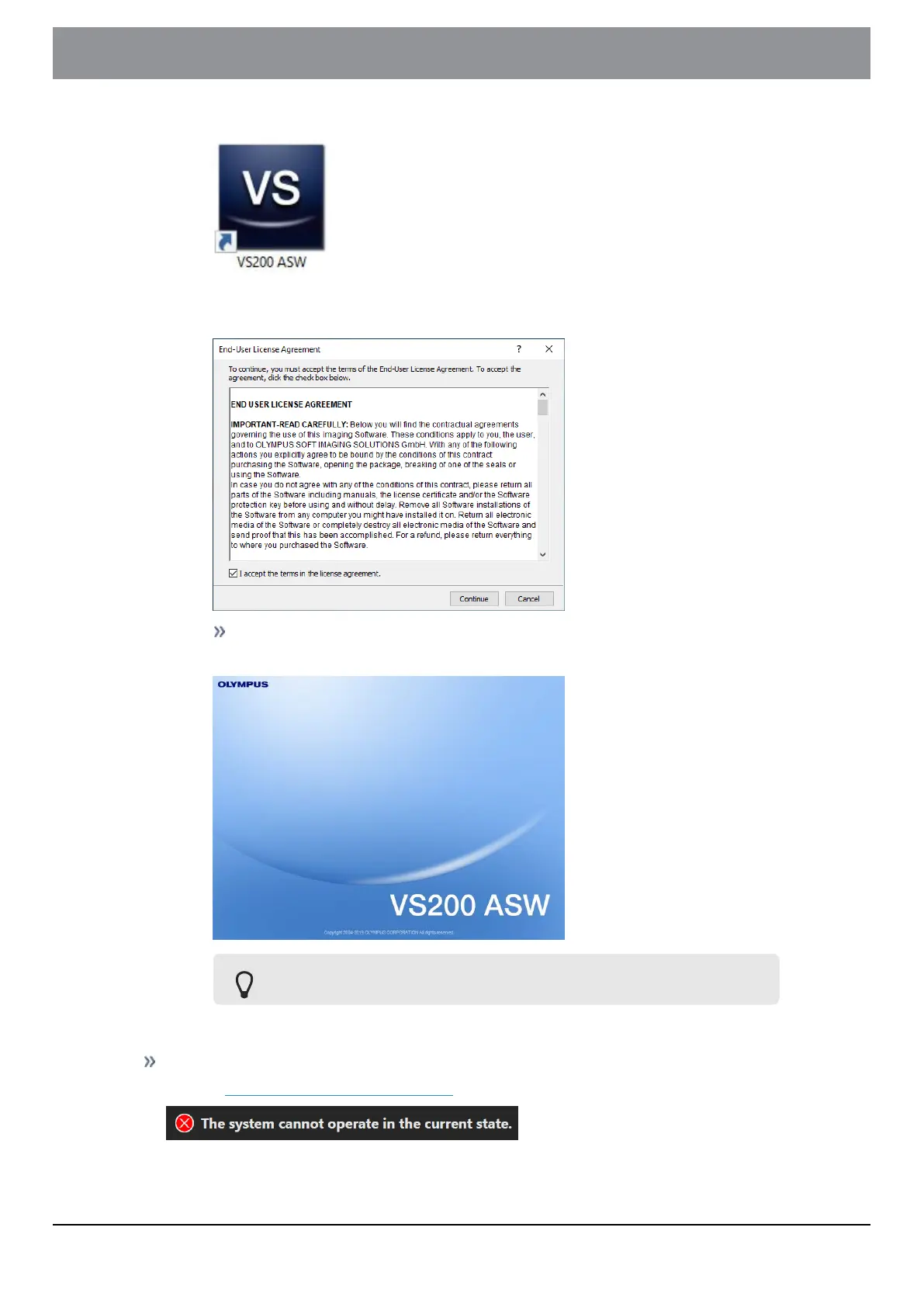

17 VS200 ASW software setup

16. To start the software double-click the VS200 ASW icon.

17. At the first start agree to the End-User License Agreement and proceed

with [Continue].

The following splash screen is displayed while the VS200 system is ini-

tializing.

The initialization process might need up to two minutes.

Error messages

If you see the error message below once the software is up and running please

refer to Troubleshooting auf Seite 179.

- 83 -

Instructions for useOLYMPUS VS200 System

Default Chapter3
- Table of Contents3
1 About this Manual7
- Notes on Qualifications7
- Intended Use7
- Other Applicable Documents8
- Symbols in this Documentation8
2 Safety9
- Categories and Symbols in the Safety Instructions9
- Caution Labels9
- Caution Labels on the Product9
- General Safety Instructions10
- Safety Instructions for the Laser13
- Safety Instructions for X-Cite Turbo and X-Cite Xylis13
3 Hinweise zum Aufstellen14
- Betriebs- und Lagerbedingungen14
4 Tools and Accessories16
5 Scope of Supply17
6 System Diagram20
- Available Fluorescence Components20
7 Trays22
- Tray Description22
- VS200 Tray Types22
8 Specifications24
9 Unboxing26
- VS200 Scanner26
  - Mounting of Handles - VS200 Scanner26
- Transportation Locks for the VS200 Scanner26
  - Removing Transportation Lock from Stage27
  - Removing Transportation Lock from Transmitted Light Condenser (BX3-UCD8A)28
- VS200 Loader30
  - VS200 Trays32
  - PC and Monitor32
- VS200 Loader Transportation Locks32
10 Mounting of Components37
- Scanner37
11 Mounting Fluorescence Components40
- IX3-RFACA and IX3-RFALFE40
- Fluorescence Filter Wheels or Camera Adapter for Monochrome Camera45
- Monochrome Camera52
  - Orientation of the Monochrome Camera53
- X-Cite Adapter56
- Objective57
- LED Light Source57
- Filter Set58
12 Assembly of the Housing for Scanner62
- Left Panel62
- Right Panel64
- Back Panel65
- Top Panel66
13 Cabling70
14 Assembly of the Loader Housing72
- Top Panel72
- Back Panel72
- Front Panels73
15 Verbindung VS200 Scanner und VS200 Loader75
- Mechanical Connection VS200 Scanner and VS200 Loader75
16 PC Operating System Language77
17 VS200 ASW Software Setup78
18 VS200 Device Configuration85
- Activate the Motorized Polarizer86
- Activate the VS200 Liquid Dispenser86
- Device Settings - Objectives87
- Device Settings - Filter88
- Manual Device Configuration89
  - ORCA Monochrome Camera90
- Device Customization90
- VS200 LED Lamp Voltages97
19 How to Insert a Slide into a Tray99
- How to Insert a Tray into the VS200 Scanner99
- Insert a Tray into the VS200 Loader100
20 Calibrate VS200 Using the Olympus Calibration Slide101
- Stage Limits - Z Axis103
