Functions

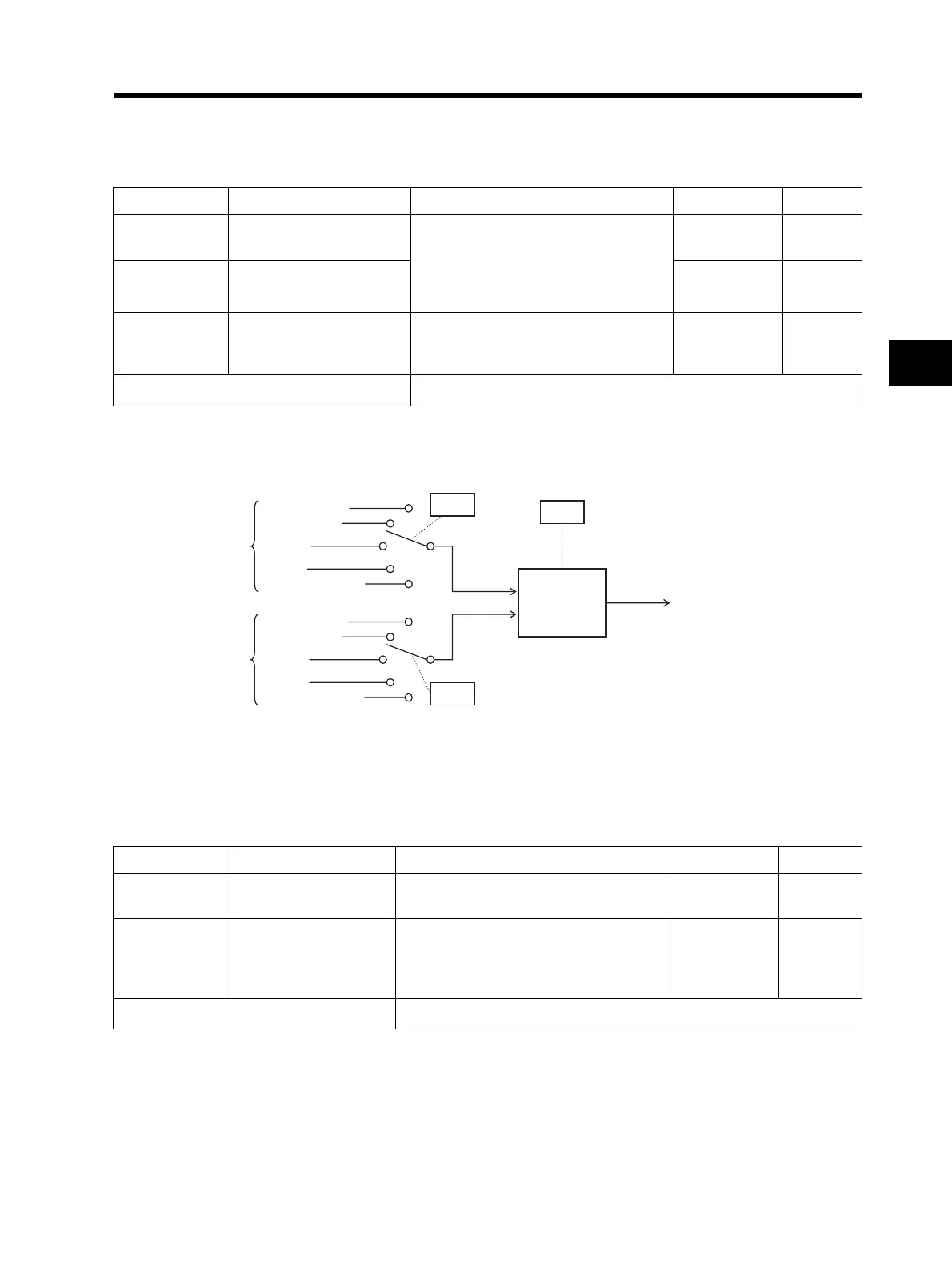

Operation Frequency Function
This function makes calculations for two inputs and reflects the result as the output frequency.
•Inputs FV and FI cannot be set simultaneously. Do not connect the signal lines for inputs FV and
FI simultaneously.
Frequency Addition Function
This function adds or subtracts the constant frequency set in A145 to/from the output frequency.
Select addition or subtraction in A146.
•Inputs FV and FI cannot be set simultaneously. Do not connect the signal lines for inputs FV and
FI simultaneously.
Parameter No. Function name Data Default setting Unit
A141
Operation frequency input
A setting
00: Digital Operator (F001)
01: Digital Operator (FREQ adjuster)
02: Input FV
03: Input FI
04: RS485 communication
01 ⎯
A142
Operation frequency input
B setting
02 ⎯
A143 Operator selection
00: Addition (A + B)
01: Subtraction (A - B)
02: Multiplication (A × B)
00 ⎯
Related functions A001 = 10
+
–
×
Input A
Input B
Digital Operator
FREQ adjuster
Input FV
Input FI
ModBus communication
A141
A143
A
AB
B
AB
AB
Result of
calculation
Output frequenc
y
A142
Digital Operator
FREQ adjuster
Input FV
Input FI
ModBus communication
Parameter No. Function name Data Default setting Unit
A145
Frequency addition
amount
0.0 to 400.0 0.0 Hz
A146
Frequency addition
direction
00: Adds the A145 value to the output
frequency
01: Subtracts the A145 value from the
output frequency
00 ⎯
Related functions C001 to C005, ADD input
