Omron 3G3JX

4-65
4-2 Function Mode
4
Functions

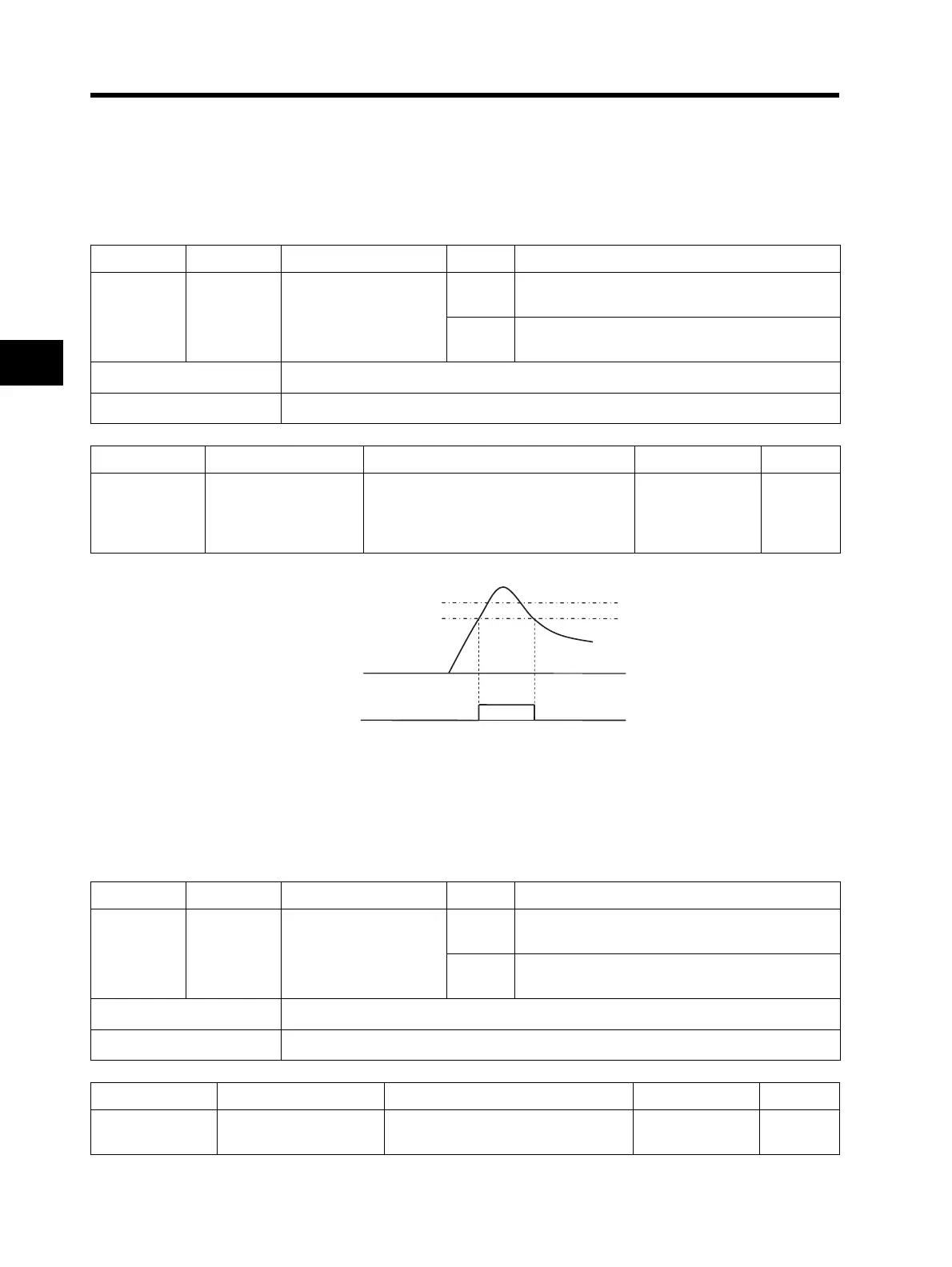

Overload Warning Signal
If the load is too large, this function outputs an overload warning signal, allowing you to readjust the
load level to prevent a trip.
This helps prevent mechanical damage due to an overload, or a conveyor line stop due to an over-
load trip of the Inverter.
Excessive PID Deviation Output
This function outputs a signal when the deviation has exceeded the set value during the use of the
PID function.
Data Symbol Function name Status Description
03 OL Overload warning
ON
The Inverter output current has exceeded the
C041 set value.
OFF
The Inverter output current has not reached the
C041 set value.
Available input terminals P1-PC, MA-MC (or MB-MC)
Required settings C021, C026, C041
Parameter No. Function name Data Default setting Unit
C041 Overload warning level
0.0: Does not operate.
0.1 to Rated current × 200%:
Outputs OL signal when reaching the
overload warning level.
Rated current A
Overload limit level
b022
Overload warning level
C041
Output current
OL
Data Symbol Function name Status Description
04 OD
Excessive PID
Deviation
ON
The PID deviation has exceeded the C044 set
value.
OFF
The PID deviation has not reached the C044 set
value.
Available input terminals P1-PC, MA-MC (or MB-MC)
Required settings C021, C026, C044
Parameter No. Function name Data Default setting Unit
C044
PID deviation excessive
level
0.0 to 100.0 3.0 %
