Omron 3G3JX

4-2
4-1 Monitor Mode
4
Functions
Multi-function Input Monitor [d005]
Displays the input status of the multi-function input terminals.
C011 to C015 (contact selection) are excluded.
Multi-function Output Monitor [d006]
Displays the output status of the multi-function output terminals and relay output terminals.
C031 and C036 (contact selection) are excluded.
This monitor indicates the signal status of the functions (C021 and C026) allocated to each multi-
function output terminal.
Output Frequency Monitor (After Conversion) [d007]
Displays a conversion value obtained by multiplying the Inverter output frequency by the coefficient
set in [b086].
Displayed value = "Output frequency [d001]" × "Frequency conversion coefficient [b086]"
(Display) [d007]
0.00 to 99.99 : Displays in increments of 0.01.
100.0 to 999.9 : Displays in increments of 0.1.
1000. to 9999. : Displays in increments of 1.
1000 to 3996 : Displays in increments of 10.
(Setting range) [b086]
0.1 to 99.9: Can be set in increments of 0.1.
(Example)
When the output frequency [d001] = 50.0 Hz, and
the frequency conversion coefficient [b086] = 1.1,
the monitor [d007] displays "55.0" through 50.0 × 1.1 = 55.0.

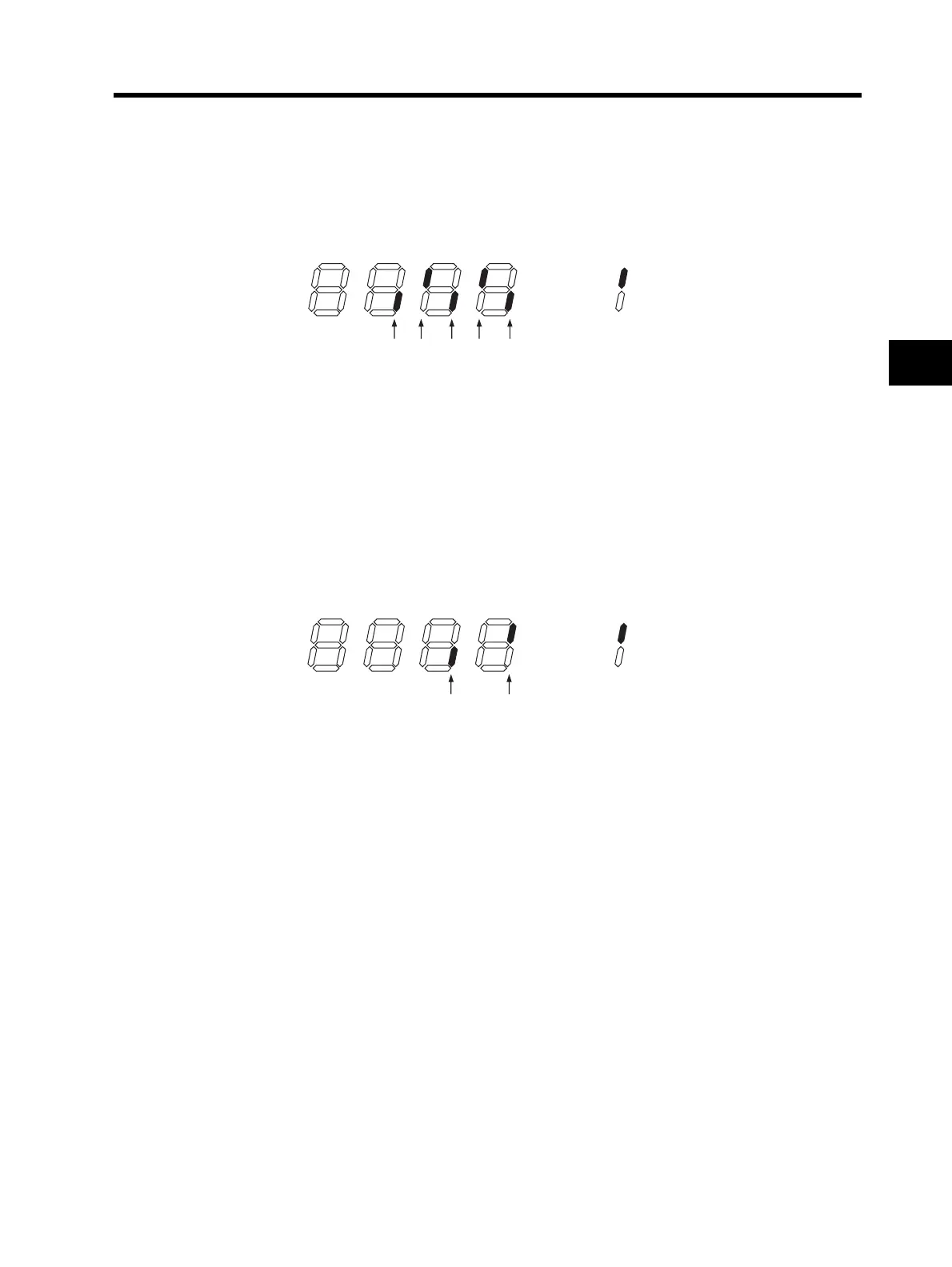

Multi-function input monitor
S1S2S3S4S5
ON
OFF
(OFF) (ON) (OFF) (ON)(OFF)
Display
: ON
: OFF
(Example) Multi-function input terminals S4, S2 : ON
Multi-function input terminals S5, S3, S1 : OFF
Multi-function output monitor
P1MA
ON
OFF
(OFF) (ON)
Display
: ON
: OFF
(Example) Multi-function output terminal P1 : ON
Relay output terminal MA : OFF
