7-2 Measurement Method of Output Voltage
7
Specifications
7-2 Measurement Method of Output
Voltage
* For 3G3JX-AE's terminal symbols, R/L1 corresponds to L1, S/L2 to L2, and T/L3 to N/L3.

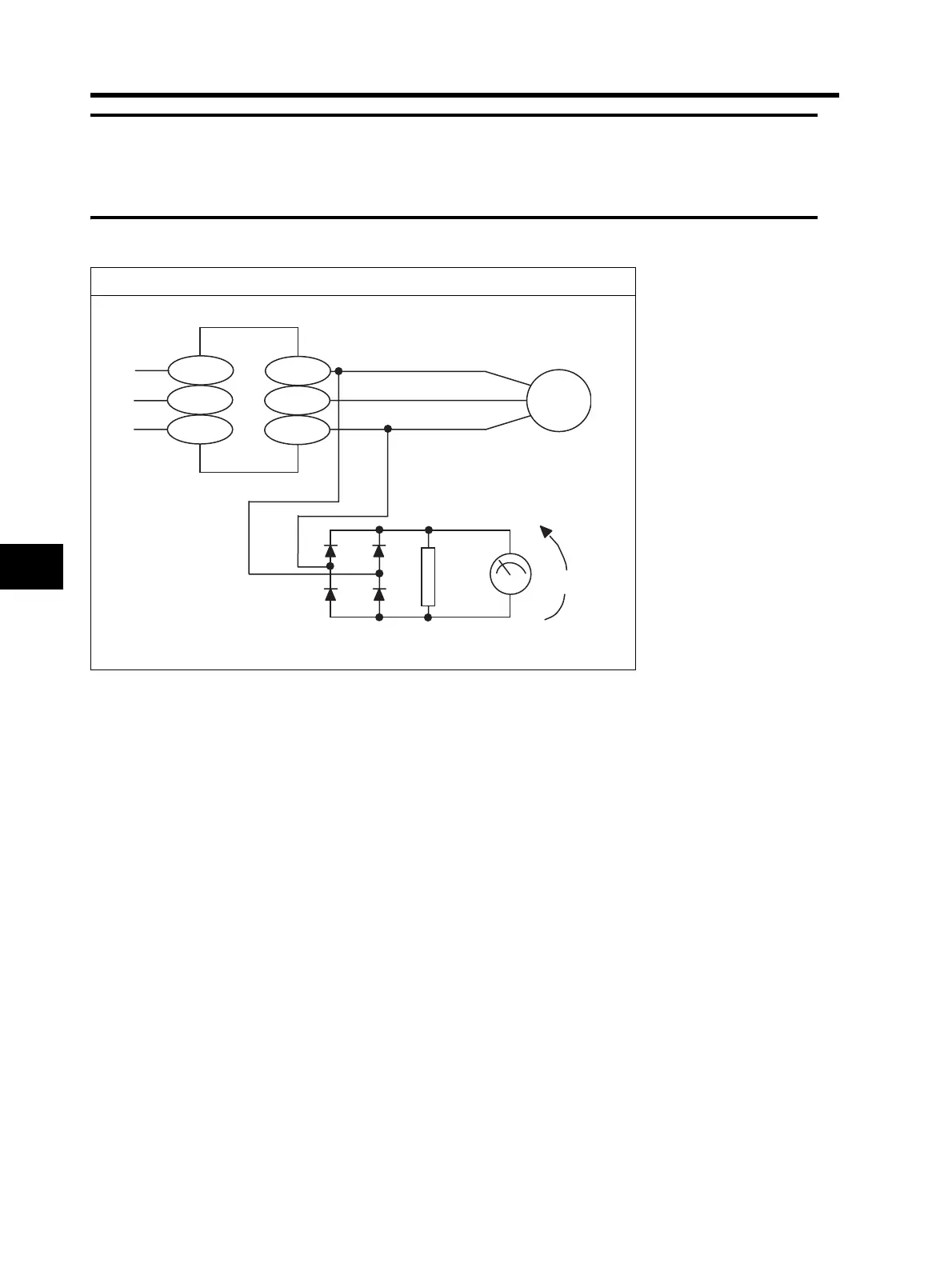

Measurement Method of Output Voltage
R/L1
*
S/L2
T/L3
U/T1
V/T2
W/T3
Motor
Diode 600 V 0.01 A min.
(200-V class)
1000 V 0.1 A min.
(400-V class)
Effective value of fundamental wave: VAC = 1.1 × VDC
220 kΩ
2 W
VDC
