Omron 3G3JX

3-6
3-2 Test Run Operation
3
Operation
Setting the Motor Capacity Selection (H003) and Motor Pole Number Selection
(H004)
Parameter
No.
Register
No.
Name Description Setting range
Unit of
setting
Default
setting
Interrupt
during
RUN
H003 1165h
Motor
capacity
selection
Sets the capacity of the
motor connected to the
Inverter.
200-V class
0.2/0.4/0.75/
1.5/2.2/3.7/
5.5/7.5
400-V class
0.4/0.75/1.5/
2.2/3.7/5.5/7.5
kW
Varies
with the
capacity.
No
H004 1166h
Motor pole
number
selection
Sets the pole number of
the motor connected to
the Inverter.
2/4/6/8 Pole 4 No

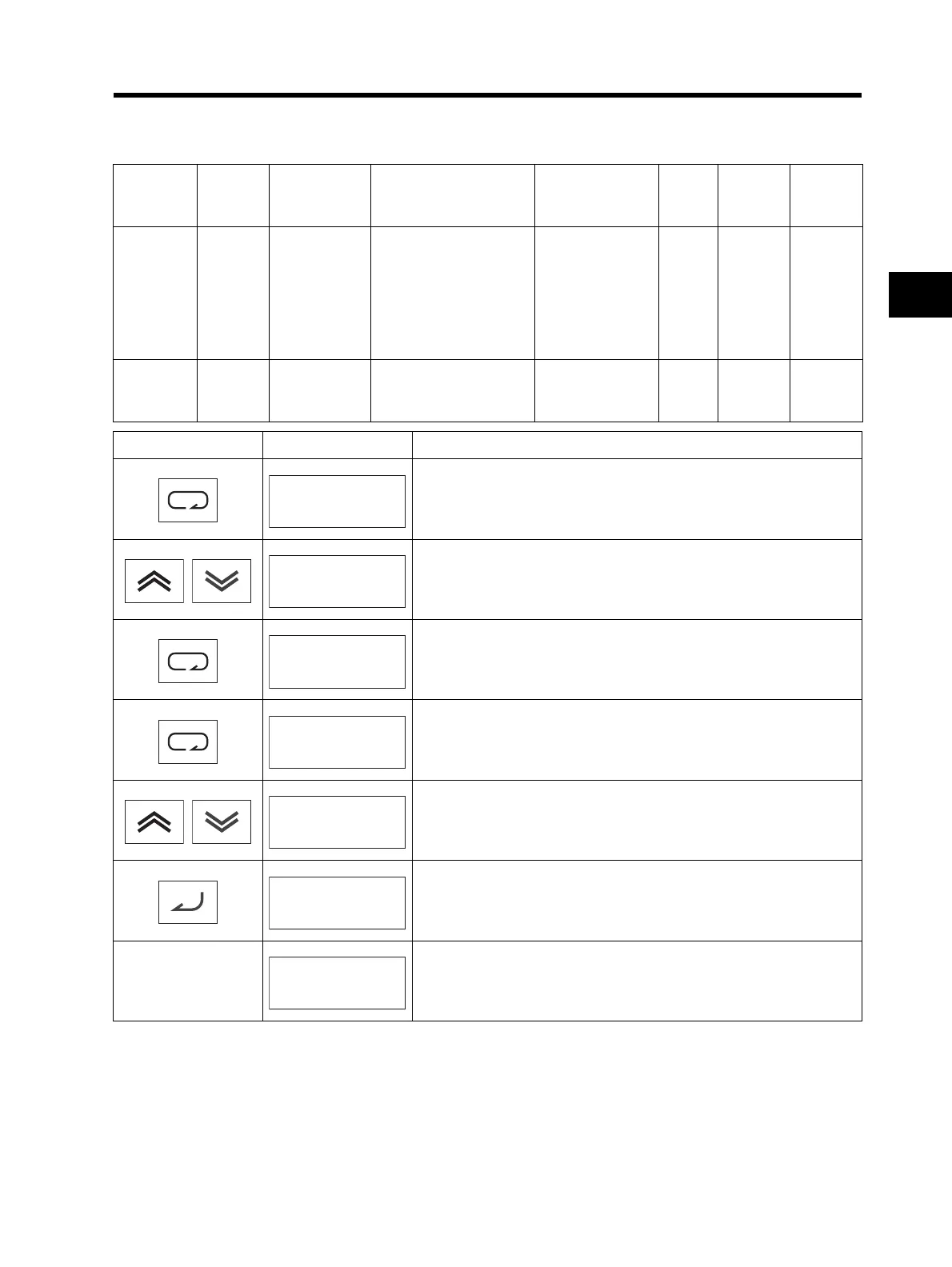

Key sequence Display example Description
Press the Mode key twice to display the mode selection.
Use the Increment or Decrement key to display "H---".
Press the Mode key. "H003" is displayed.
Press the Mode key. The set value in "H003" is displayed.
Use the Increment or Decrement key to set the rated motor capacity.
Press the Enter key. The set value is entered.
(In approx. 1 s) The parameter number is displayed again.
bk-k-k-
hk-k-k-
hk0k0k3
0.2k0
0.4k0
0.4k0
hk0k0k3
