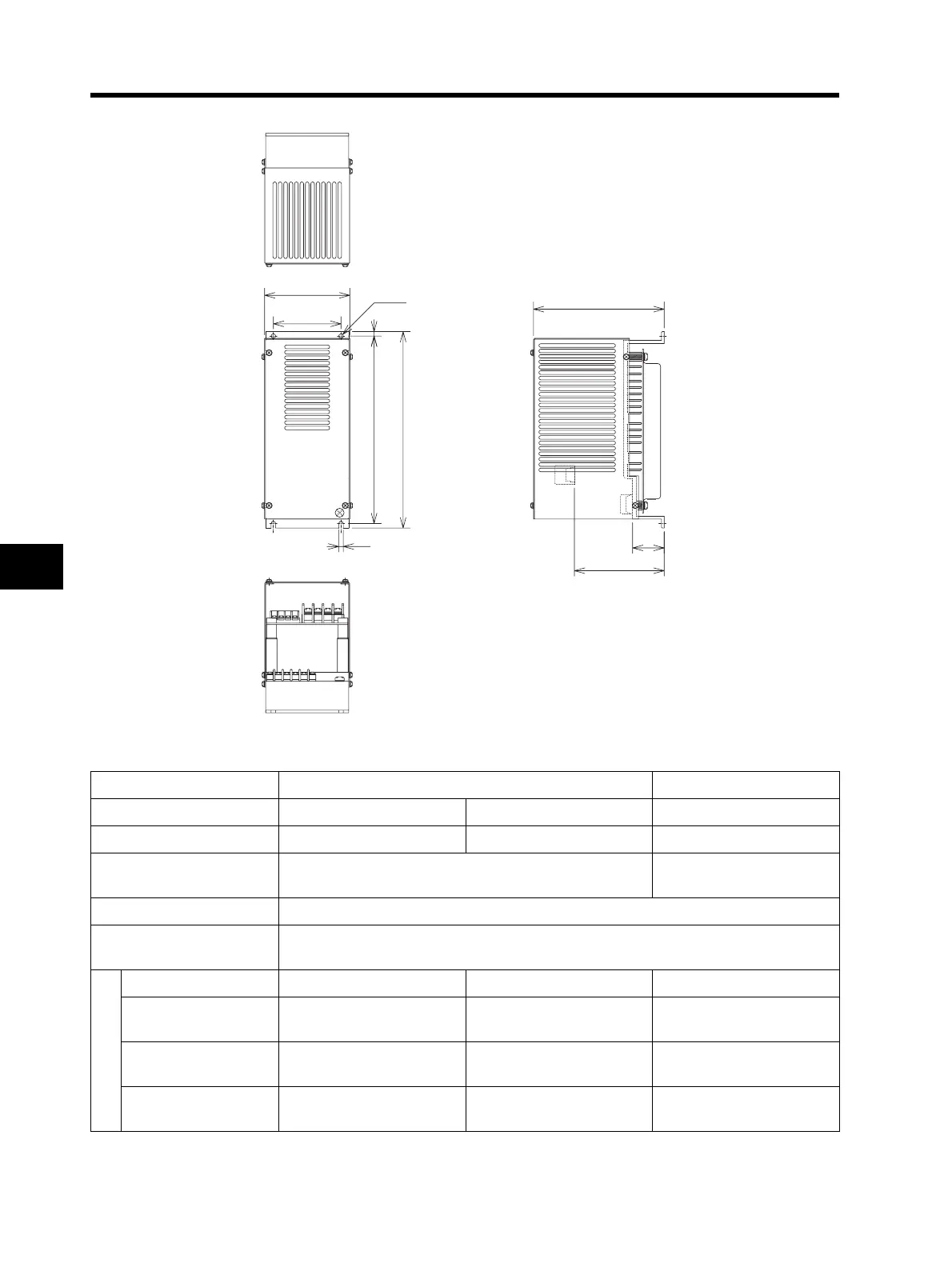

Specifications
3G3AX-RBU41
Specifications
95
75
2-φ5
208
218
5
145
35
100
5
Applicable voltage class 200-V class 400-V class
Model 3G3AX-RBU21 3G3AX-RBU22 3G3AX-RBU41
Connectable resistance 17 Ω min. 17 Ω min. 34 Ω min.
Operating voltage ON/OFF
ON: 362.5 ± 5 V
OFF: 355 ± 5 V
ON: 725 ± 5 V
OFF: 710 ± 5 V
Operation indication LED ON (Lit)
Parallel interlocking
operation function
5 units max.
Built-in resistor
Resistance 120 W, 180 Ω 120 W, 20 Ω 120 W, 180 Ω × 2 in series
Allowable consecutive
ON time
10 s max. 0.5 s max. 10 s max.
Allowable operation
cycle
Cycle 1/10
(ON for 10 s, OFF for 90 s)
Cycle 1/80
(ON for 0.5 s, OFF for 40 s)
Cycle 1/10
(ON for 10 s, OFF for 90 s)
Power consumption
Instantaneous 0.73 kW
Short-time rating 120 W
Instantaneous 6 kW
Short-time rating 120 W
(Instantaneous 0.73 kW,
rating 120 W) × 2 in series
