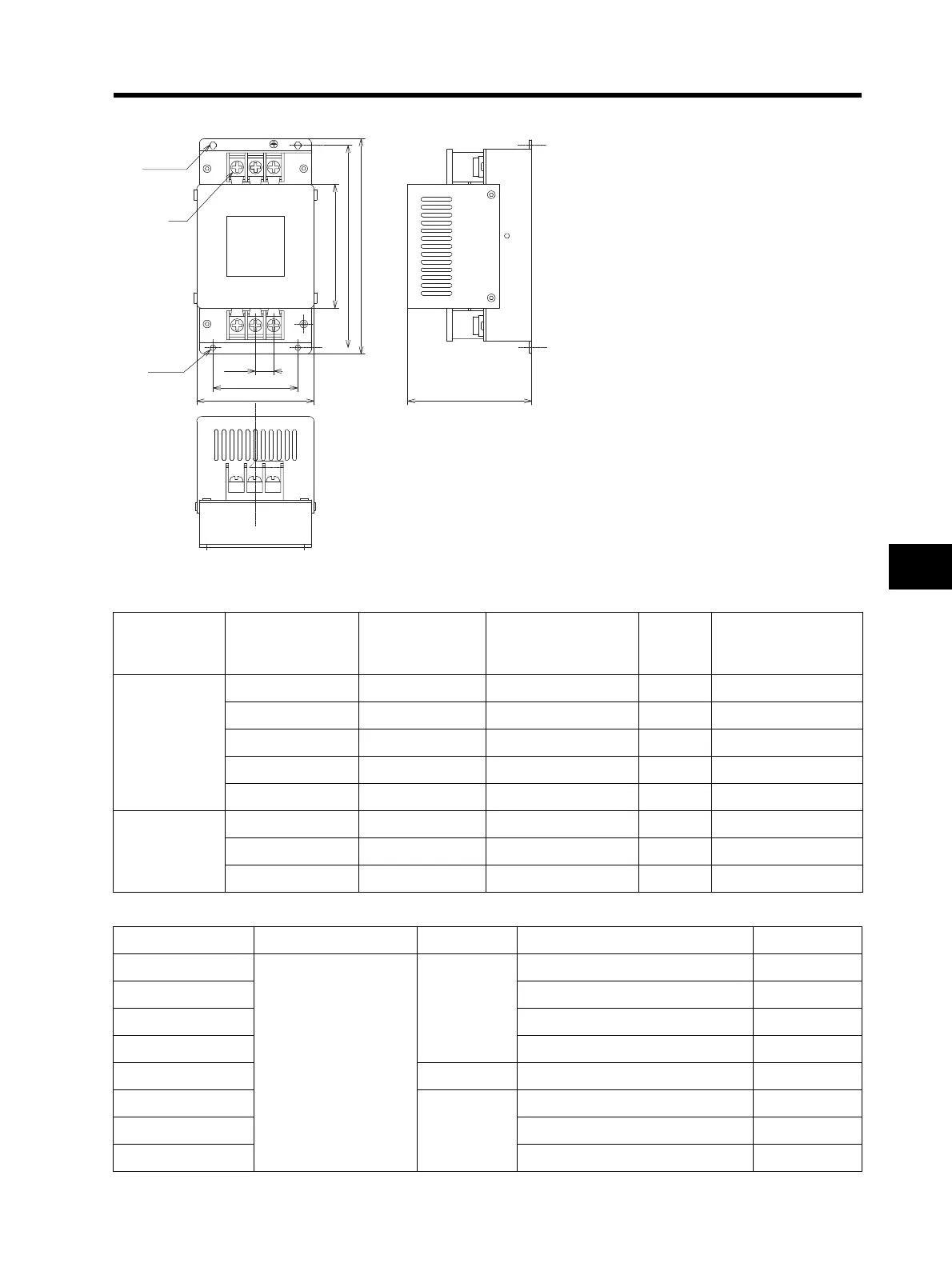

7-5 Options
7
Specifications
3G3AX-NFI25
Specifications
Inverter side
65
90
(16)
L1' L2' L3'
L1 L2 L3
155
165
2-φ4.5
M6
(95)
Power supply
side
2-4.5×6
95
Power supply Model
Applicable
Inverter capacity
(kw)
Rated input current In
(A) at an ambient
temperature of 50
°C
Power
loss (W)
Leakage current
(mA/phase)
at 60 Hz
3-phase
250 V +10%
Max.
3G3AX-NFI21 0.2 to 0.75 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI22 1.5 3 × 10 A 4 < 1.5 (250 V)
3G3AX-NFI23 2.2, 3.7 3 × 20 A 6 < 1.5 (250 V)
3G3AX-NFI24 5.5 3 × 30 A 9 < 1.5 (250 V)
3G3AX-NFI25 7.5 3 × 40 A 12 < 1.5 (250 V)
3-phase
480 V +10%
Max.
3G3AX-NFI41 0.4 to 2.2 3 × 7 A 2 < 7.5 (250 V)
3G3AX-NFI42 3.7 3 × 10 A 4 < 7.5 (250 V)
3G3AX-NFI43 5.5, 7.5 3 × 20 A 6 < 7.5 (250 V)
Model Case, Enclosure rating Screw size Wire size Weight (kg)
3G3AX-NFI21
Plastic, IP00
M4
1.25 mm
2
0.5
3G3AX-NFI22 2 mm
2
0.6
3G3AX-NFI23 2 mm
2
, 3.5 mm
2
0.7
3G3AX-NFI24 5.5 mm
2
0.8
3G3AX-NFI25 M5 8 mm
2
1.4
3G3AX-NFI41
M4
1.25 mm
2
, 2 mm
2
0.7
3G3AX-NFI42 2 mm
2
0.7
3G3AX-NFI43 2 mm
2
, 3.5 mm
2
0.7
