190
FINS Commands Section 5-3

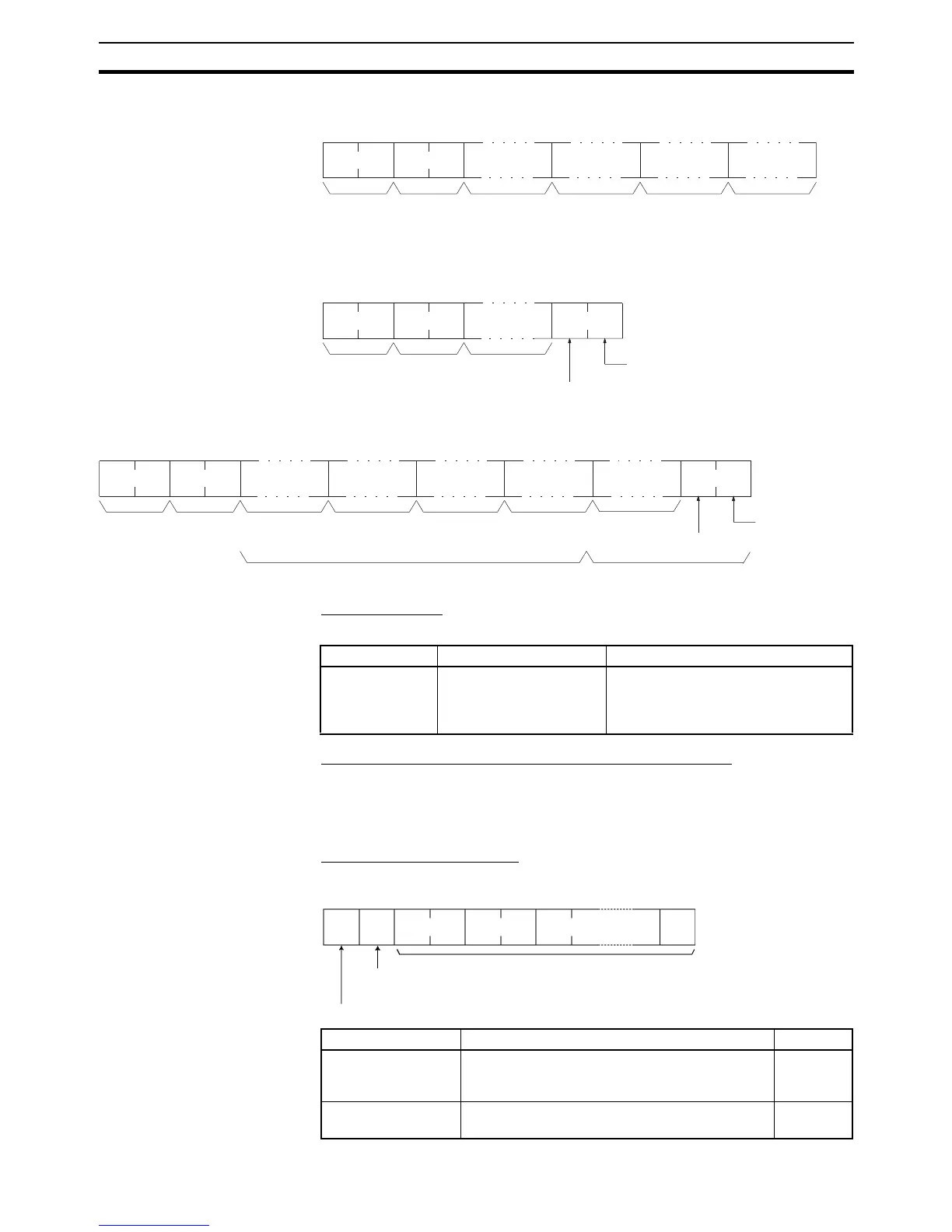

Response Format The format is as shown below if 00 (hex) is specified as the data to be read,
i.e., from the CPU Unit model to the area data.
The format is as shown below if 01 (hex) is specified as the data to be read,
i.e., from the CPU Bus Unit configuration to the CPU Unit information.
The format is as shown below if nothing is entered as the data to be read, i.e.,
all data from the CPU Unit model to the CPU Unit information.
Parameters Data (command)
Specify the data to be read as follows:
CPU Unit model and internal system version (response)
Each is returned in not more than 20 bytes in ASCII (i.e. 20 ASCII characters).
If the model or internal system version requires less than 20 characters, the
model field will be filled with spaces and the internal system version field will
be filled with null codes.
For system use (response)
Reserved for system use.
0105
CPU Unit
model
CPU Unit
internal system
version
For system
use
Area data End codeCommand
code
20 bytes 20 bytes 40 bytes 12 bytes
Remote I/O data
01
05
CPU Bus
Unit configuration
End codeCommand
code
64 bytes
CPU Unit information
64 bytes
01
05
CPU Unit
model
For system
use
Area data End codeCommand
code
20 bytes 20 bytes 40 bytes
12 bytes
Remote I/O data
CPU Bus
Unit configuration
CPU Unit information
Data read for 00 (Hex) Data read for 01 (Hex)
CPU Unit
internal system
version
Value 00 01
Data to be read CPU Unit model
CPU Unit internal system
version
Area data
CPU Bus Unit configuration
Remote I/O data
CPU Unit information
Item Meaning Unit
DIP switch data Status of DIP switch on front panel of CPU Unit:
Pins 0 to 7 correspond to bits 0 to 7 (ON: 1; OFF:
0)
---
Largest EM bank
number
Largest number, 0 to 19, in CPU Unit’s EM area. Bank
1st byte 2nd byte
34rh byte
DIP switch data
Largest EM bank number
Reserved for system.
