Omron CPM1 Programming Manual

131
Differential Monitor Section 2-4
CQM1 Application
Example

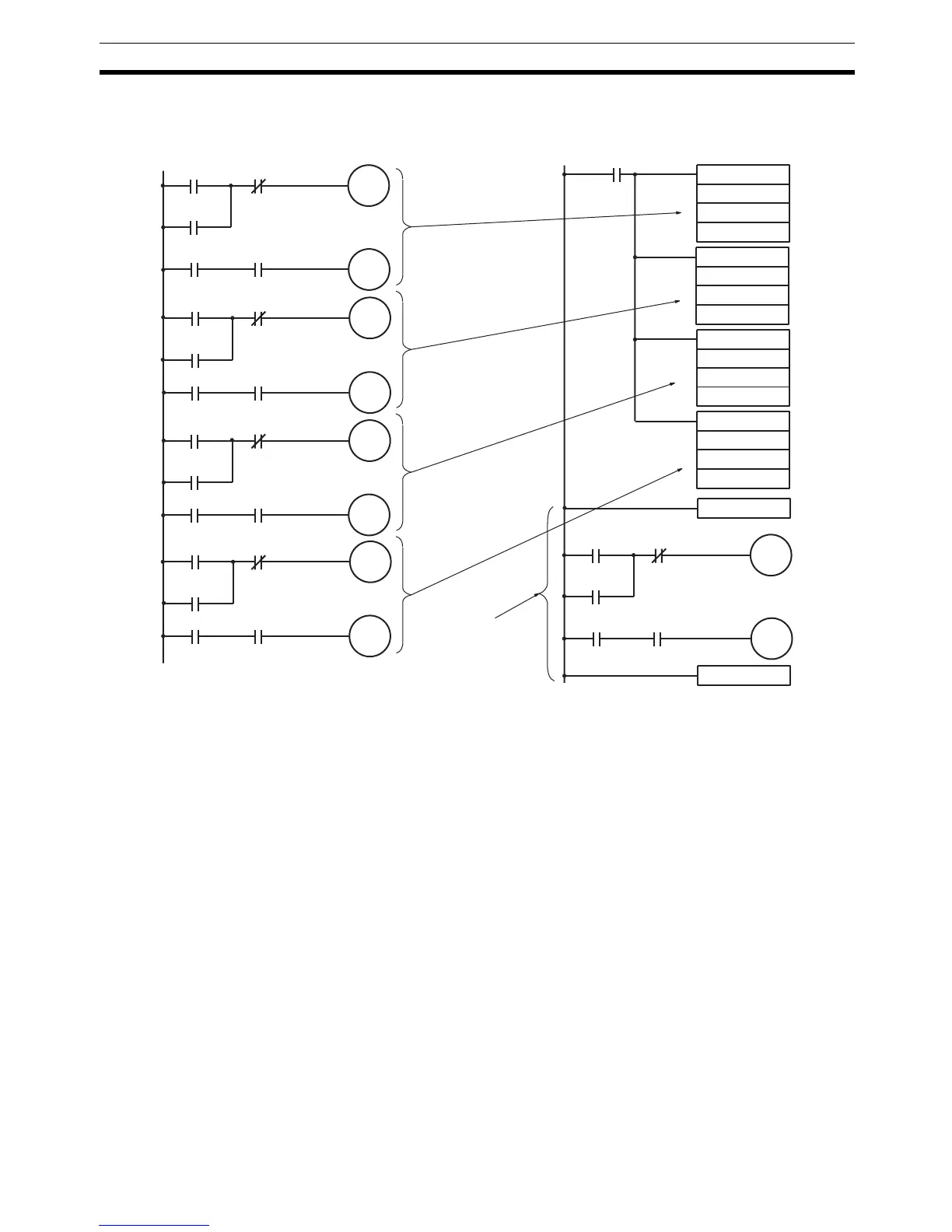

When a macro is used, the program can be simplified as shown below.
CPM1/CPM1A/SRM1
Application Example
The CPM1/CPM1A/SRM1 program can be simplified like the one shown
above, but words SR 232 through SR 235 would be used instead of IR 096
through IR 099 and words SR 236 through SR 239 would be used instead of
IR 196 through IR 199.
2-4 Differential Monitor
The CQM1/CPM1/CPM1A/SRM1 support differential monitoring from either
the Programming Console or the SSS. The operator can detect on OFF-to-ON
or ON-to-OFF transition in a specified bit. When the specified transition takes
place, the transition is indicated on the display and a buzzer sounds to enable
easy recognition of the transition.
Refer to the CQM1 Operation Manual, CPM1 Operation Manual, CPM1A
Operation Manual or SRM1 Master Control Units Operation Manual for details
on the Programming Console Differential Monitor procedure and to the SSS
Operation Manual: C-series PCs for the SYSMAC Support Software proce-
dure.
10000
00000 10001
10000
10001
00001
10500
00200 10501
10500
10501
00201 00202
12000
00500 12001
12000
12001
00501 00502
15000
01000 15001
15000
15001
01001 01002
19600
09600 19601
19600
19601
09601
RET(93)
MCRO(99)
090
000
100
MCRO(99)
090
002
105
MCRO(99)
090
005
120
MCRO(99)
090
010
150
25313 (Always ON)
00002
19602
SBN(92) 090
Macro not used Macro used
Subroutine used
to define macro

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
