Advanced I/O Instructions (CQM1 Only) Section 2-2
2-2-2 HEXADECIMAL KEY INPUT – HKY(––)
This instruction inputs 8 digits in hexadecimal from a hexadecimal keyboard. It
utilizes 5 output bits and 4 input bits.

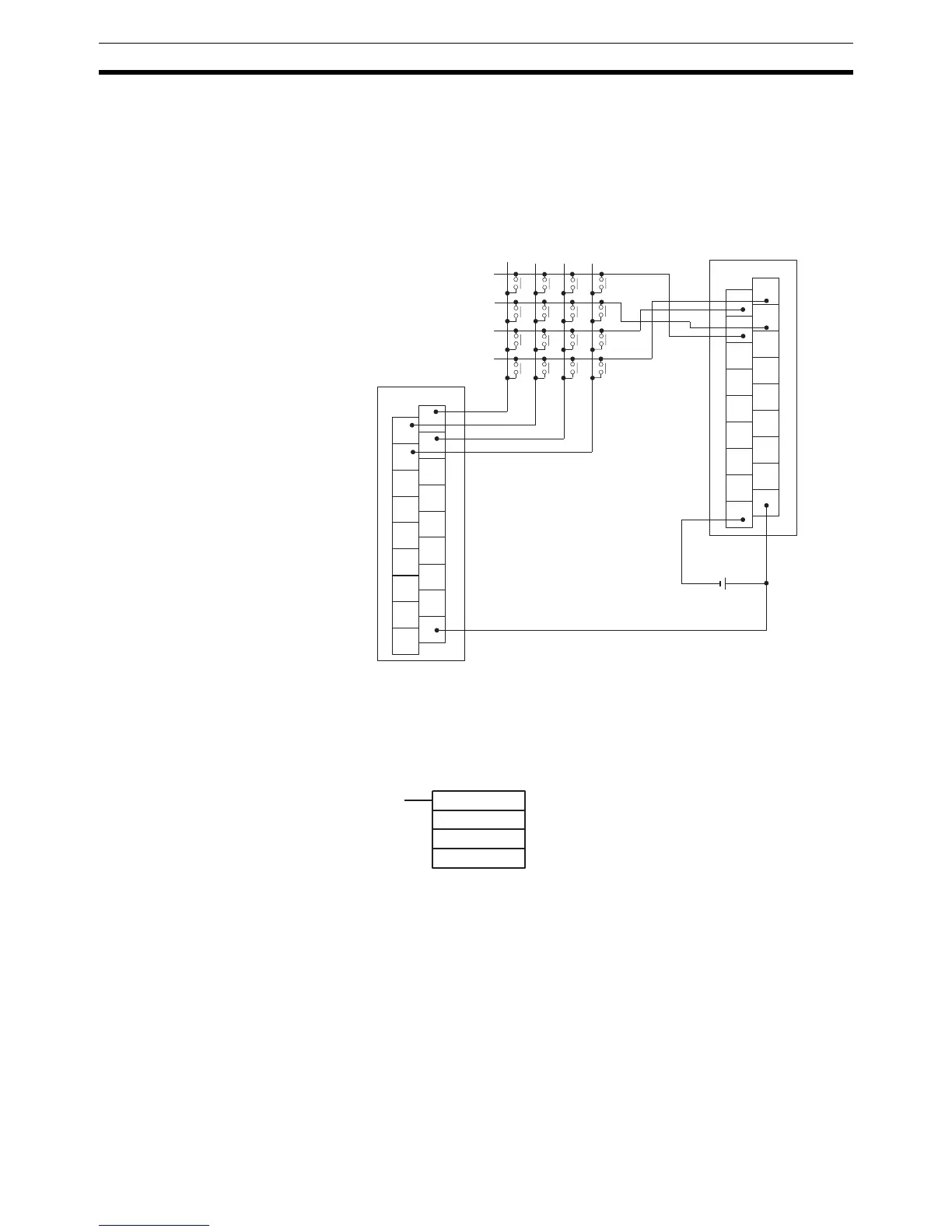

Hardware Prepare the hexadecimal keyboard, and connect the 0 to F numeric key
switches, as shown below, to input points 0 through 3 and output points 0
through 3. Output point 4 will be turned ON while any key is being pressed,
but there is no need to connect it.
The inputs can be connected to the input terminals on the CPU Unit or a DC
Input Unit with 8 or more input points and the outputs can be connected from
a Transistor Output Unit with 8 points or more.
Using the Instruction
1
3
5
7
9
11
13
15
COM
0
2
4
6
8
10
12
14
COM
ID212
1
3
5
7
9
11
13
15
COM
0
2
4
6
8
10
12
14
COM
OD212
C
8
4
0
D
9
5
1
E
A
6
2
F
B
3
7
Input Unit
Output Unit
HKY
IW
0W
D
IW: Input word
OW: Control signal output word
D: First register word

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
