Omron CPM1 Programming Manual

108
Communications Functions Section 1-9

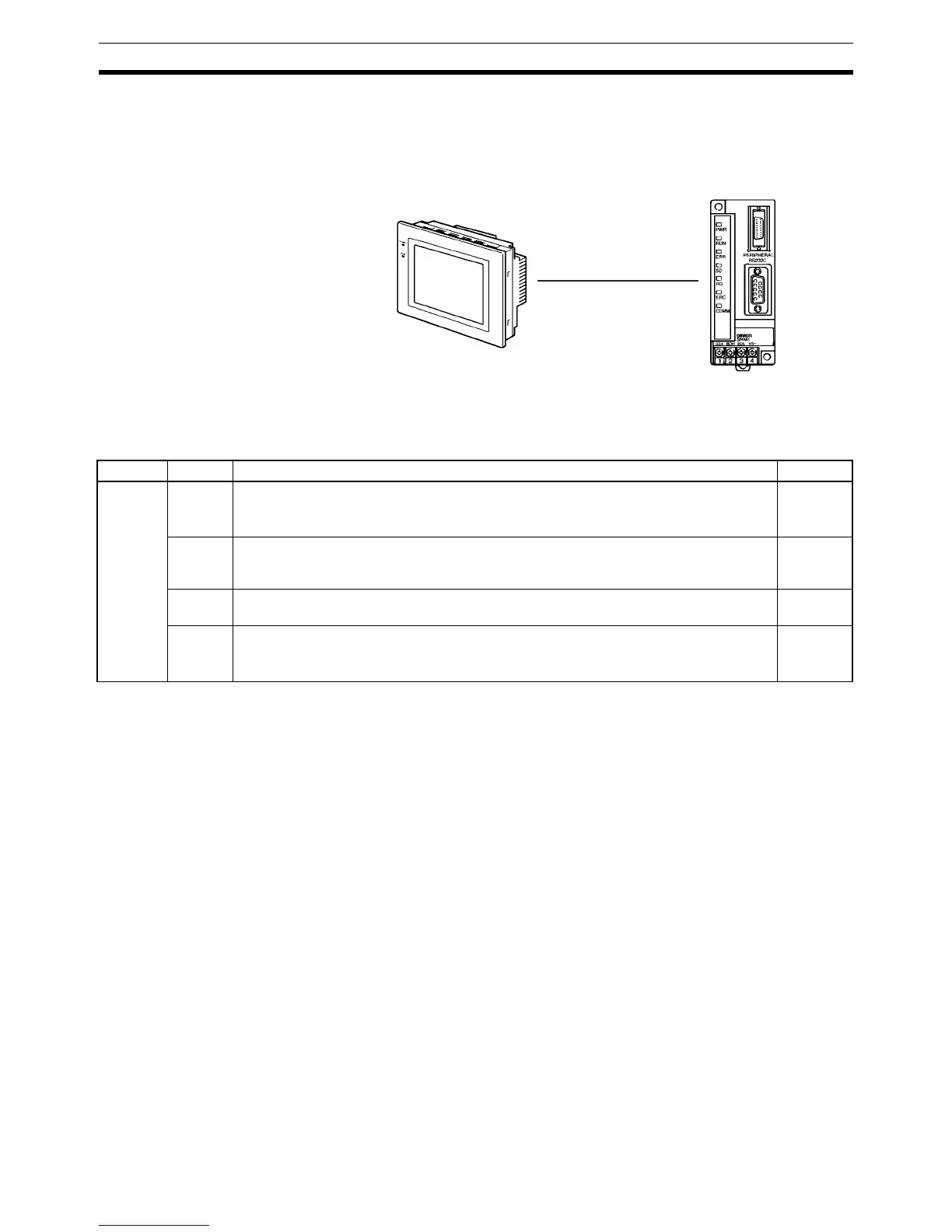

1-9-11 SRM1 NT Link Communications
Using the NT link, the SRM1 PC can be connected to the Programmable Ter-
minal (NT Link Interface.) The RS-232C port can be used to the NT Link.
NT Link is possible only with the SRM1-C02-V1, which has an RS-232C port.
PC Setup Settings The settings relating to NT link PC communications must be set as shown in
the following table.
Note 1. If an improper setting is used, a non-fatal error will occur, AR 1302 will be
turned ON, and the default setting (0 or 00) will be used.
2. For information on the NT link settings for another OMRON PC, refer to that
PC’s Operation Manual.
3. If an out-of-range value is set, the following communications conditions will
result. In that case, reset the value so that it is within the permissible range.
Communications mode: Host Link
Communications format: Standard settings
(1 start bit, 7-bit data; even parity, 2 stop bits,
9,600 bps)
Transmission delay: No
Node number: 00
Programmable Terminal
SRM1
Word Bit Function Setting
DM 6645 00 to 03
Port settings
1
00: Standard (1 start bit, 7-bit data, even parity, 2 stop bits, 9,600 bps)
01: Settings in DM 6646
00
(Any value
is OK)
04 to 07 CTS control settings
0: Disable
1: Set
0
(Any value
is OK)
08 to 11 Link area for one-to-one PC link via peripheral port
0: LR 00 to LR 15
0
12 to 15
Communications mode
1
0: Host link; 1: No protocol; 2: 1-to-1 PC link (slave); 3: 1-to-1 PC link (master); 4: NT
link
4

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
