Omron CPM1 Programming Manual

20
Basic PC Operation and I/O Processes Section 1-2
CPM1/CPM1A PCs Set the input time constants for CPM1/CPM1A inputs from a Peripheral
Device.
Input Time Constants for IR 000
Input Time Constants for IR 001 to IR 009
The nine possible settings for the input time constant are shown below. Set
only the rightmost digit for IR 000.
0: 8 ms 1: 1 ms 2: 2 ms 3: 4 ms 4: 8 ms
5: 16 ms 6: 32 ms 7: 64 ms 8: 128 ms
The CPM1/CPM1A’s I/O response time is the input time constant (1 ms to
128 ms; default is 8 ms) + the cycle time.
Refer to 7-2 CPM1/CPM1A Cycle Time and I/O Response Time for more
details.
1-2-8 High-speed Timers (CQM1 Only)
Make the settings shown below to set the number of high-speed timers cre-
ated with TIMH(15) that will use interrupt processing.
The setting indicates the number of timers that will use interrupt processing
beginning with TIM 000. For example, if “0108” is specified, then eight timers,
TIM 000 to TIM 007 will use interrupt processing.
Note High-speed timers will not be accurate without interrupt processing unless the
cycle time is 10 ms or less.

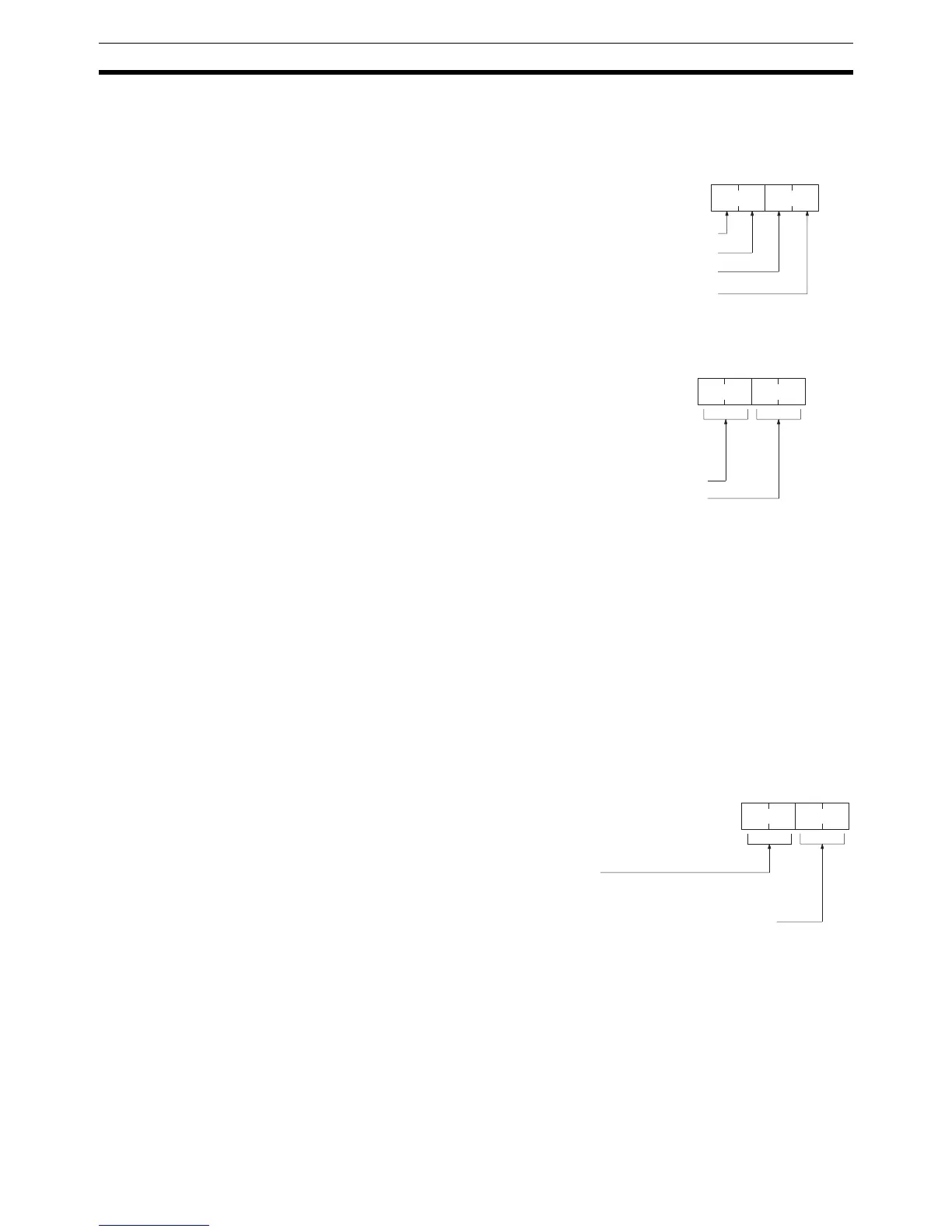

15
0
Bit
Time constant for IR 00007 to IR 00011 (1 digit BCD; see below.)
Time constant for IR 00005 to IR 00006 (1 digit BCD; see below.)
Time constant for IR 00003 to IR 00004 (1 digit BCD; see below.)
Time constant for IR 00000 to IR 00002 (1 digit BCD; see below.)
Default: 0000
(
8 ms for each
)
DM 6620
15 0
Bit
DM 6621: IR 001 and IR 002
DM 6622: IR 003 and IR 004
DM 6623: IR 005 and IR 006
DM 6624: IR 007 and IR 008
DM 6625: IR 009
Time constant for IR 002, IR 004, IR 006, and IR 008
Time constant for IR 001, IR 003, IR 005, IR 007, and IR 009
Default: 0000 (8 ms for each)
DM 6621 to DM 6625
15 0
DM6629
Bit
High-speed timer interrupt setting enable
00: Setting disabled (Interrupt processing for all high-speed timers, TIM 000 to TIM 015)
01: Enabled (Use setting in bits 00 to 07.)
Number of high-speed timer for interrupts (valid when bits 08 to 15 are 01)
00 to 15 (2 digits BCD)
Default: Interrupt processin
g
for all hi
g
h-speed timers,TIM 000 to TIM 015.

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
