Omron CPM1 Programming Manual

35
Pulse Output Function (CPM1A Only) Section 1-4

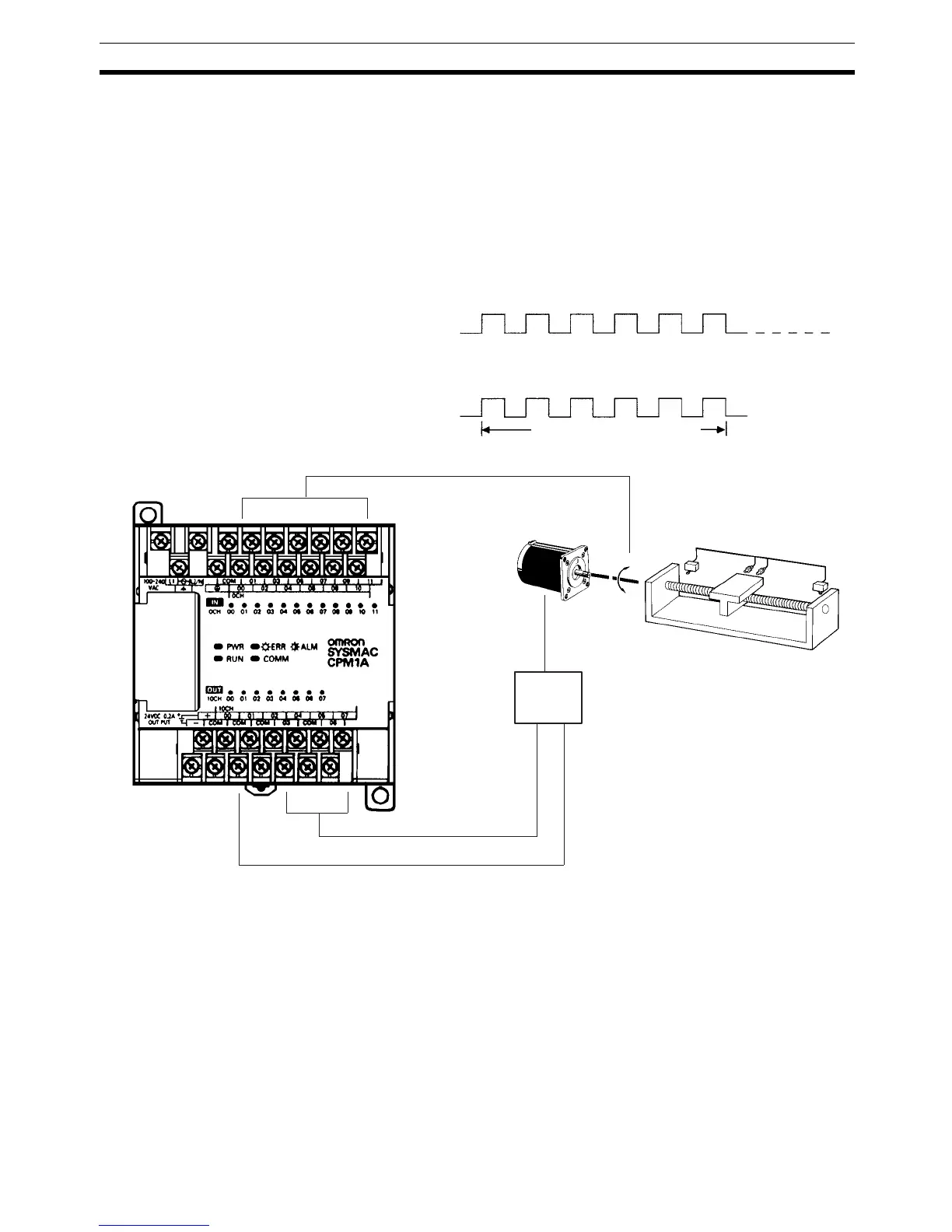

1-4 Pulse Output Function (CPM1A Only)
The CPM1A PCs with transistor outputs have a pulse output function capable
of outputting a pulse of 20 Hz to 2 kHz (single-phase). Either IR 01000 or
IR 01001 can be selected for pulse output, and the pulse output can be set to
either the continuous mode, under which the output can be stopped by an
instruction, or the independent mode, under which the output is stopped after
a preset number of pulses (1 to 16,777,215).
Refer to the CPM1A Operation Manual for details on hardware connections to
output points and ports.
Note 1. The CPM1A uses a single-phase pulse output. The control signal for the
direction of rotation (CW/CCW) for the motor driver must be written in the
program.
2. Be sure to use a CPU Unit with transistor outputs.
Continuous mode
Single mode
Pulses are output at the specified frequency until stopped.
Pulse output is stopped automatically when the specified
number of pulses has been output.
Specified number off pulses
Stepping motor
Control input
Motor
controller
CW/CCW control output
Pulse output
(single-phase output)
IR 01000 or IR 01001
Stepping motor

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
