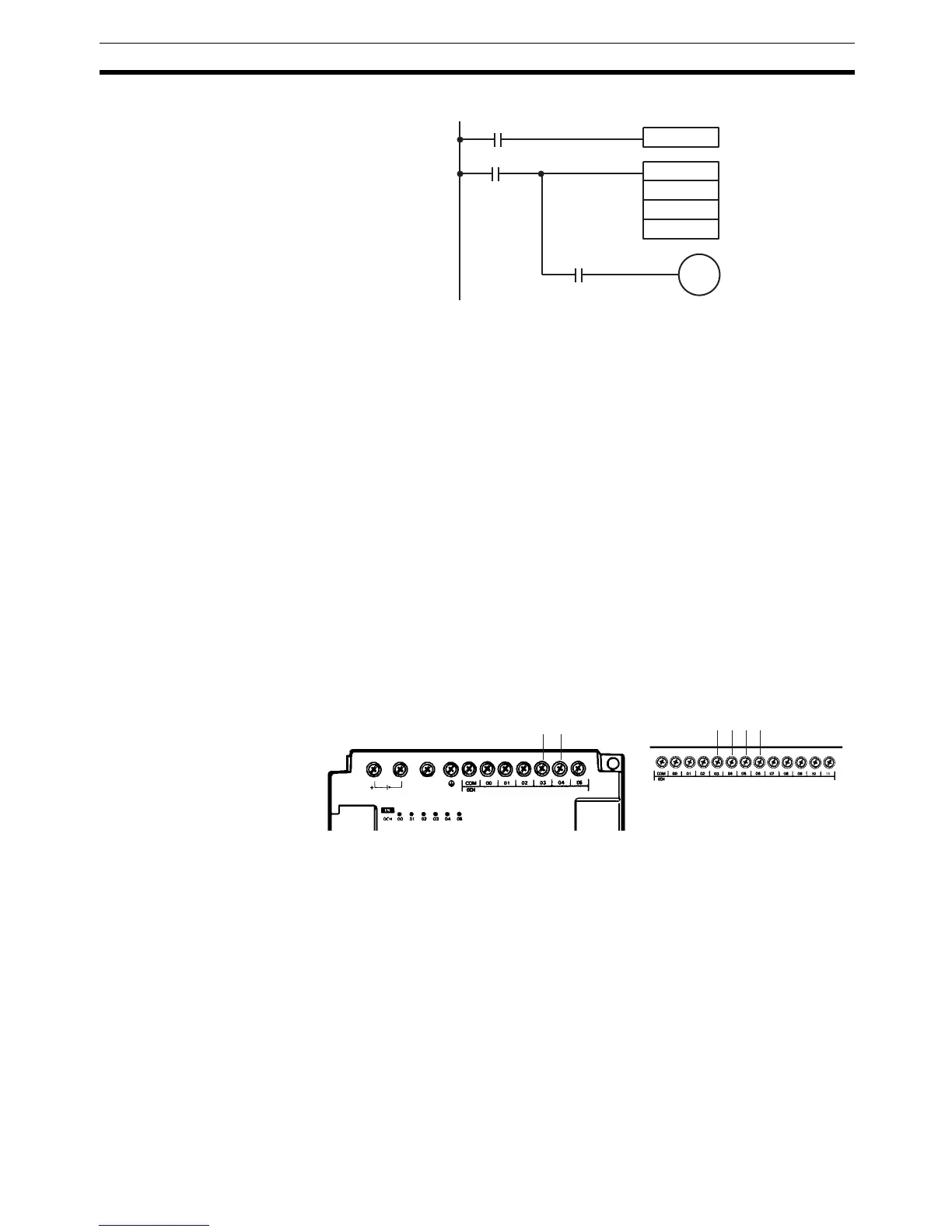

Omron CPM1 Programming Manual

69
CPM1/CPM1A Interrupt Functions Section 1-6
2. This is the program section from the interrupt subroutine:
Note 1. Define interrupt routines at the end of the main program with SBN(92) and
RET(93) instructions, just like regular subroutines.
2. When defining an interrupt routine, a “SBS UNDEFD” error will occur dur-
ing the program check operation, but the program will be executed normal-
ly.
1-6-2 Input Interrupts
The 10-pt CPU Units (CPM1-10CDR-@ and CPM1A-10CDR-@) have two
interrupt inputs (00003 and 00004).
The 20-, 30-, and 40-pt CPU Units (CPM1-20CDR-@, CPM1A-20CDR-@,
CPM1-30CDR-@(-V1), CPM1A-30CDR-@
and CPM1A-40CDR-@) have four
interrupt inputs (00003 to 00006).
There are two modes for input interrupts: input interrupt mode and counter
mode.
CPM1 PCs
SBN(92) 000
@CTBL(63)
000
000
DM 0000
25313
25313
LR
0000
10-pt CPU Units
(CPM1-10CDR-@)
20- and 30-pt CPU Units
(CPM1-20CDR-@and
CPM1-30CDR-@(-V1))
00003 00004 00005 00006
00003 00004
24VDC
NC

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
