CPM1/CPM1A Cycle Time and I/O Response Time Section 7-2
7-2 CPM1/CPM1A Cycle Time and I/O Response Time
7-2-1 The CPM1/CPM1A Cycle

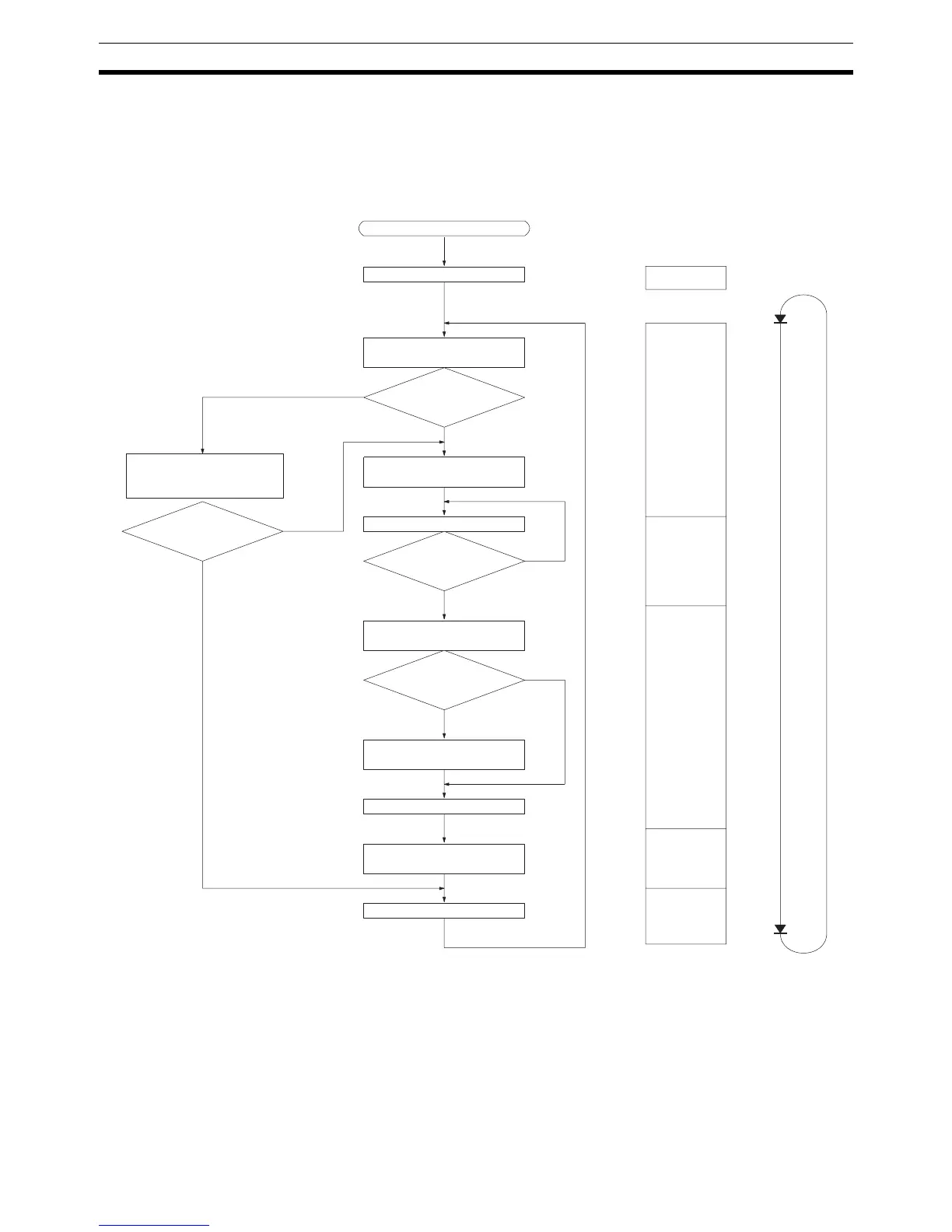

The overall flow of CPM1/CPM1A operation is as shown in the following flow-
chart.
Note Initialization processes include clearing the IR, SR, and AR areas, presetting
system timers, and checking I/O Units.
Power application
Check hardware and
Program Memory.
Check OK?
Preset cycle time
monitoring time.
Execute user program.
End of program?
Check cycle time set-
ting.
Minimum
cycle time set?
Wait until minimum cycle
time expires.
Compute cycle time
.
Refresh input bits and
output terminals.
Service peripheral port.
Set error flags and
activate indicators.
ERROR or ALARM?
No
ERROR
(lit)
ALARM
(flashing)
Initialization
Overseeing
processes
Program
execution
Cycle time
processing
I/O refreshing
Service
peripheral
port.
Cycle
time
No
Ye s
No
Ye s
Ye s
Initialization processes

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
