Omron CPM1 Programming Manual

281
Conversion Instructions Section 5-19
Indirectly addressed DM word is non-existent. (Content of *DM word
is not BCD, or the DM area boundary has been exceeded.)
S and S+15 are not in the same data area.
EQ: ON when the content of D is zero; otherwise OFF.

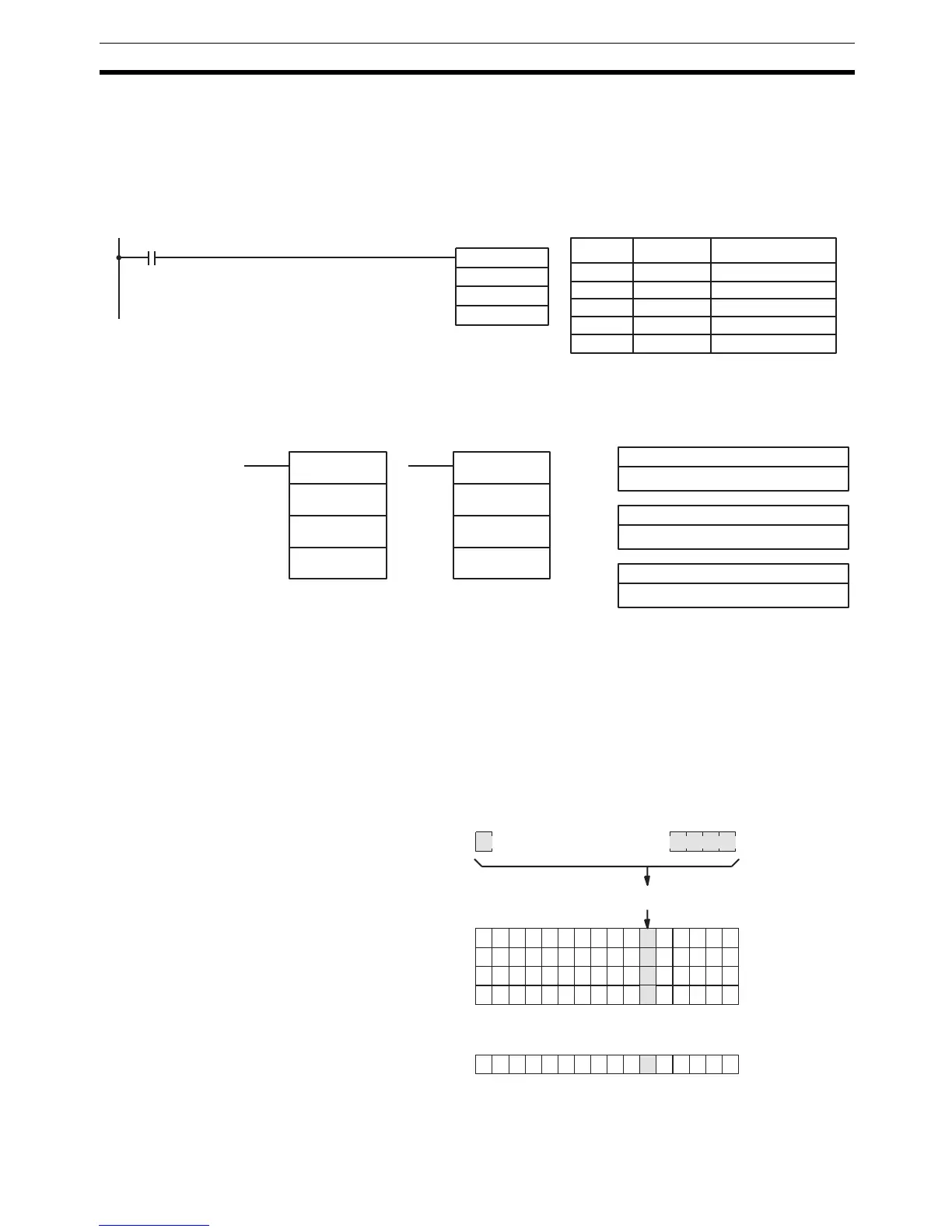

Example The following example shows how to use LINE(––) to move bit column 07
from the set (IR 100 to IR 115) to DM 0100.
5-19-16LINE-TO-COLUMN – COLM(––)
Limitations This instruction is available in the CQM1 only.
D and D+15 must be in the same data area.
DM 6129 to DM 6655 cannot be used for D.
C must be BCD between #0000 and #0015.
Description When the execution condition is OFF, COLM(––) is not executed. When the
execution condition is ON, COLM(––) copies the 16 bits of word S (00 to 15)
to the column of bits, C, of the 16-word set (D to D+15).
Flags ER: The bit designator C is not BCD, or it is specifying a non-existent bit
(i.e., bit specification must be between 00 and 15).
LINE(––)
100
#0007
DM 0100
00000
Address Instruction Operands
00000 LD 00000
00001 LINE(––)
100
# 0007
DM 0100
S: Source word
IR, SR, AR, DM, HR, TC, LR
C: Column bit designator (BCD)
IR, SR, AR, DM, HR, TC, LR, #
Ladder Symbols
Operand Data Areas
D: First word of the destination set
IR, SR, AR, DM, HR, TC LR
COLM(––)
S
D
C
@COLM(––)
S
D
C
0
0 0 0 0 1 1 1 0 0 0 1 0 0 0 0 1
Bit
15
Bit
00
D
C
1 1 0 1 0 0 1 0 0 1 1 1 0 0 0 1
D+1
0 0 0 1 1 0 1 1 0 0 1 0 0 1 1 1
D+2
.
.
.
.
.
.
.
.
.
.
0 1 1 1 0 0 0 1 1 0 0 0 1 0 1 0
D+15
1 0 0 0 0 0 1 1 0 0 0 0 0 1 1 1
D+3
0 1 1
S
1
Bit
15
Bit
00
. . . . . .
.
.
.

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
