Omron CPM1 Programming Manual

193
Coding Right-hand Instructions Section 5-5

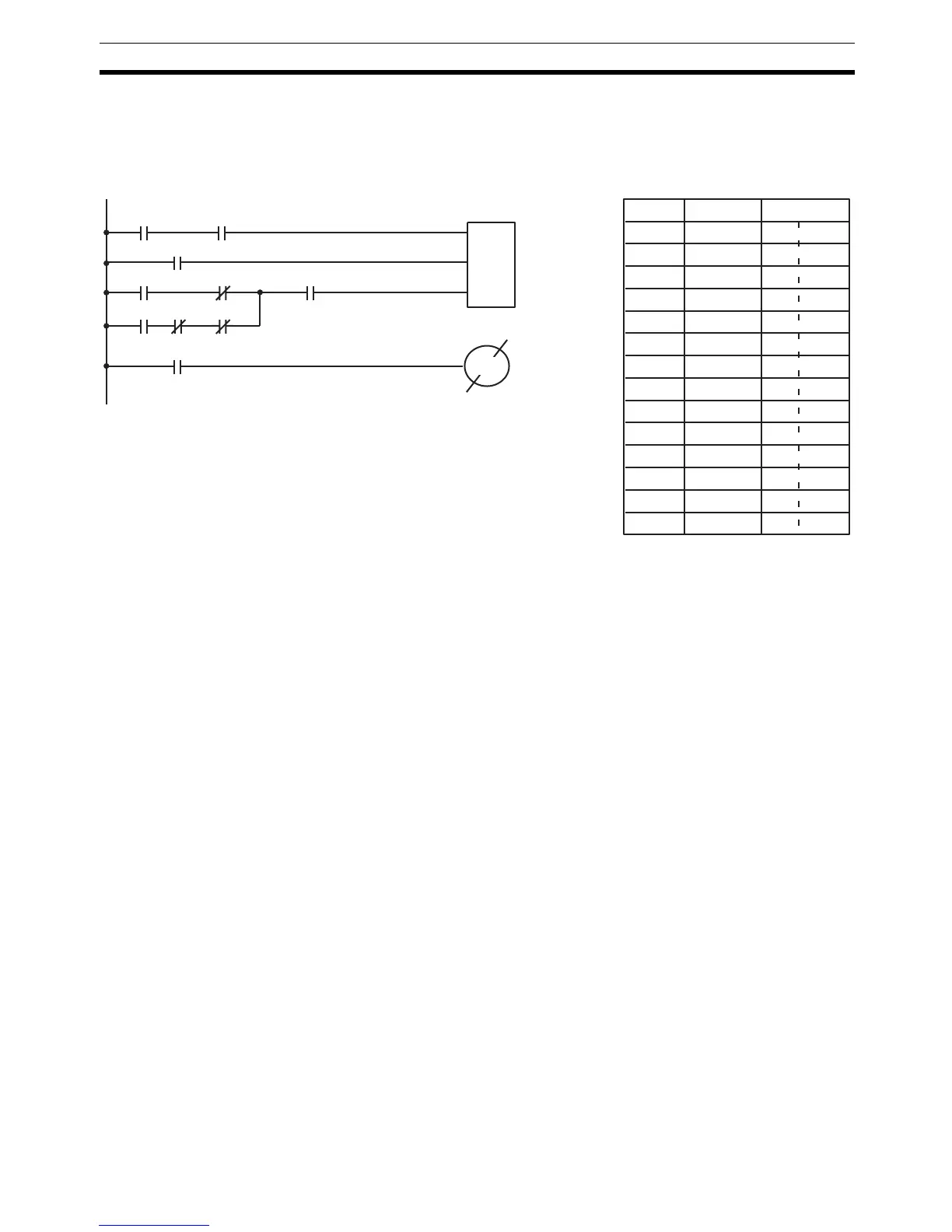

Multiple Instruction Lines If a right-hand instruction requires multiple instruction lines (such as
KEEP(11)), all of the lines for the instruction are entered before the right-hand
instruction. Each of the lines for the instruction is coded, starting with LD or
LD NOT, to form `logic blocks’ that are combined by the right-hand instruction.
An example of this for SFT(10) is shown below.
I
P
R
SFT(10)
HR 00
HR 00
Address Instruction Data
00000 LD 00000
00001 AND 00001
00002 LD 00002
00003 LD 00100
00004 AND NOT 00200
00005 LD 01001
00006 AND NOT 01002
00007 AND NOT LR 6300
00008 OR LD ––
00009 AND 21600
00010 SFT(10) HR 00
HR 00
00011 LD HR 0015
00012 OUT NOT 00500
00100 00200
00500
01001 01002 LR 6300
21600
00002
HR 0015
00000 00001

Omron CPM1 Specifications

General

Model	CPM1
Manufacturer	Omron
Instruction Set	Basic and advanced instructions
Power Supply	100 to 240 VAC or 24 VDC
Communication	RS-232C
I/O Points	10, 20, 30, or 40 points depending on the model
Timers	Yes, multiple timers available
Counters	Yes, multiple counters available
Input Voltage	24V DC
Output Type	Relay or transistor
Number of I/O Points	10, 20, 30, 40
Communication Ports	RS-232C (optional)
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C
Humidity	10% to 90% (non-condensing)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Program Memory	2048 steps (2K steps)
