6 Installation
6 - 30
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
• To avoid overheating the conduits when using conduits for wiring, do not place wires for a single
circuit in separate conduits.
• Power cables and signal cables adversely affect each other. Do not wire them in parallel.
• Noise induction may occur if the EtherNet/IP Slave Terminal is installed in a panel that includes
high-voltage devices. Whenever possible, wire and install them separately.
• Either install the EtherNet/IP Slave Terminal a minimum of 200 mm away from high-voltage lines
or power lines, or place the high-voltage lines or power lines in metal tubing and completely
ground the metal tubing to 100 Ω or less.

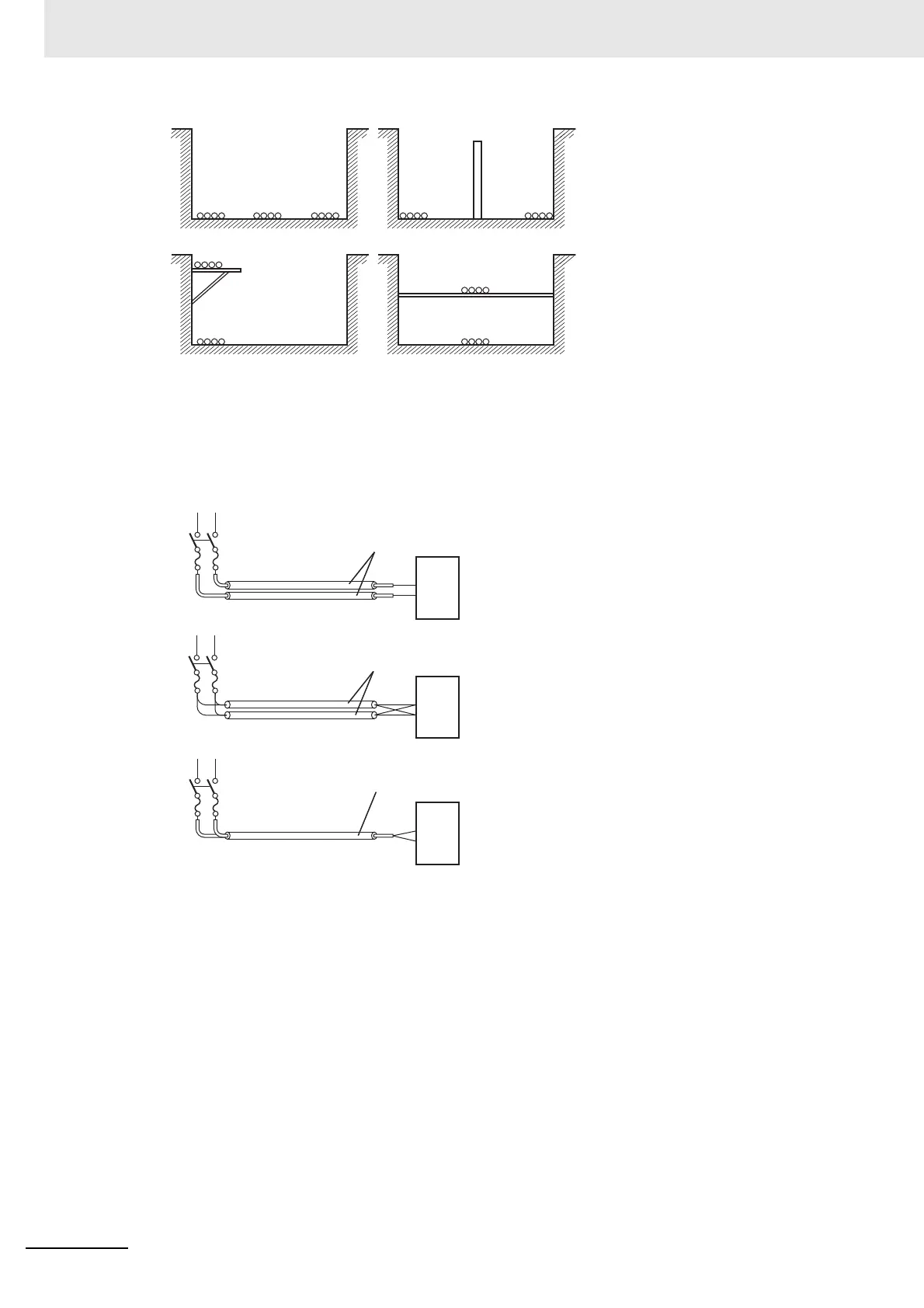

Partitioning Methods for Signal and Power Supply Cables
(b)
(c) (d)
Signal cables
Signal cables
Signal cables
Power supply cables
Power supply cables
Partition
Signal
cables
(group A)
Signal
cables
(group C)
Signal
cables
(group B)
(a)
Power
supply
cables
Parallel Wiring (Single Phase)
Correct
Correct
Power supply
Incorrect
Power supply
Power supply
Load
Load
Load
Conduits
Conduits
Conduits
NG
OK
OK
To Next Page
