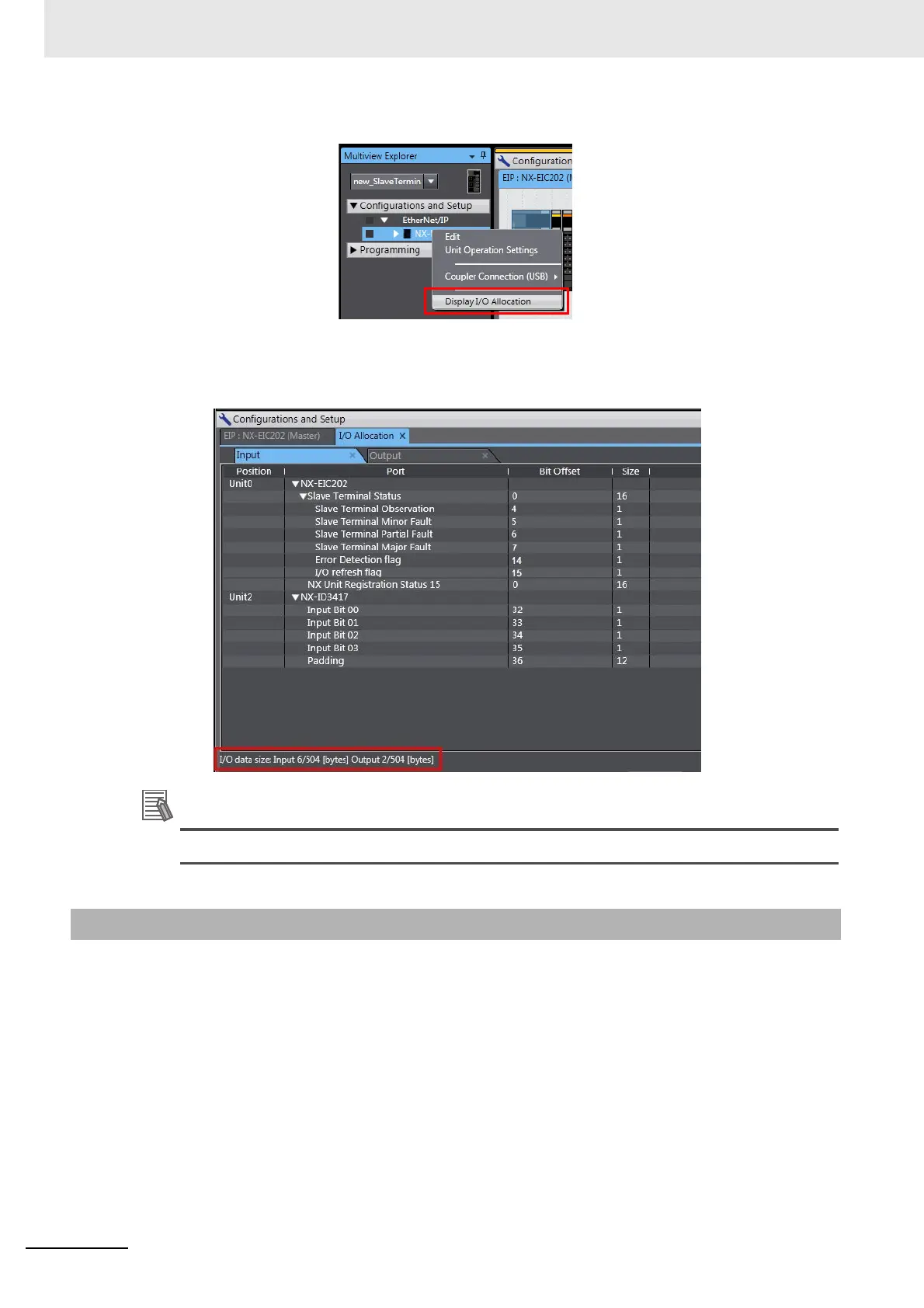

2 The I/O allocation indicates the input and output tag sizes (bytes) for the present configuration.
Additional Information
Refer to 9-6-2 Support Software I/O Allocation Functions on page 9-73 for more details.
The tag sets and set member tags required to create connections for a registered EtherNet/IP Unit must
be created. The I/O memory addresses or network symbols that are used in the control programs can
be set for the tags (using network symbols is supported only by the CJ2H-CPU6
□-EIP21 and
CJ2M-CPU3
□). This section first describes the basic procedure for creating tags and tag sets for using
the Network Configurator's device parameter editing function.
(1) Creating tags and tag sets with the Network Configurator’s Device Parameter Editing Func-
tion
Next, the following two procedures, which can be used to effectively use network symbols in tags, are
described.
(2) Importing Network Symbols Created with the CX-Programmer to the Network Configurator
(3) Importing Network Symbols That Were Registered to tags with the Network Configurator to
the CX-Programmer
9-5-5 Creating Tags and Tag Sets
