9 Setting Up Slave Terminals
9 - 66
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

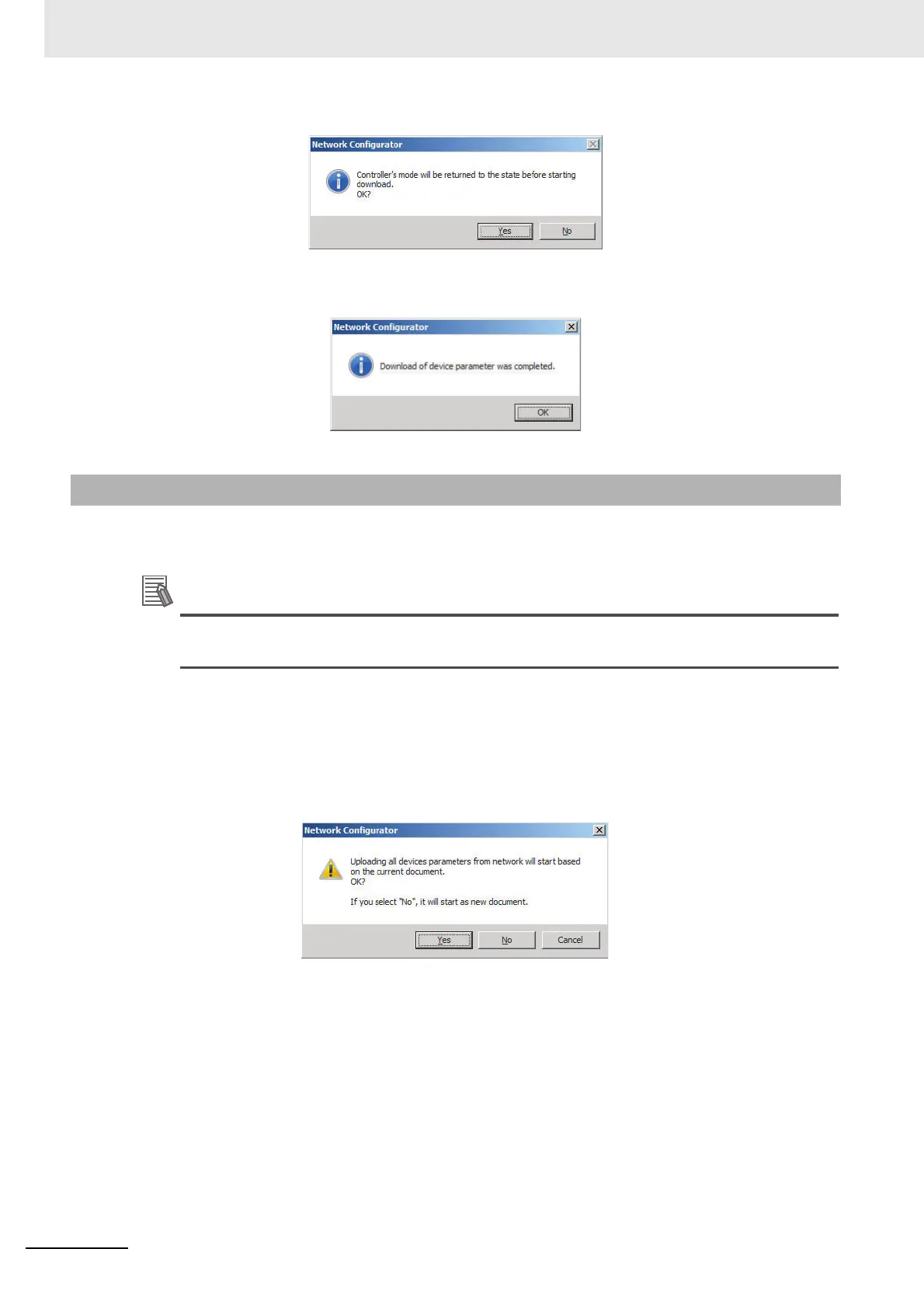

4 The following dialog box is displayed to show that the download was completed.
Tag data link parameters (such as the tag set settings and connection settings) can be uploaded from
devices in the EtherNet/IP network. The following procedure shows how to upload the parameters.
Additional Information
Refer to the CS and CJ Series EtherNet/IP Units Operation Manual (Cat. No. W465) for more
for information on how to connect the Network Configurator online.
There are two ways to upload the parameters.
Uploading from All Devices in the Network
1 Connect the Network Configurator online, and then select Upload from the Network Menu.
2 The following dialog box will be displayed.
Clicking the Yes button:
Parameters will be uploaded only from the devices registered in the Network Configuration
Pane. Parameters will not be uploaded from devices that are not registered in the Network Con-
figuration Pane.
Clicking the No button:
• If parameters are being uploaded from all devices in the network, the parameters will be
newly uploaded from all devices. The current network configuration information will be lost.
• If parameters are being uploaded from specified devices only, the upload operation will be
cancelled and the upload will not be performed.
Clicking the Cancel button:
The upload operation will be cancelled and the upload will not be performed.
9-5-9 Uploading Tag Data Link Parameters
