9-5-9 Uploading Tag Data Link Parameters

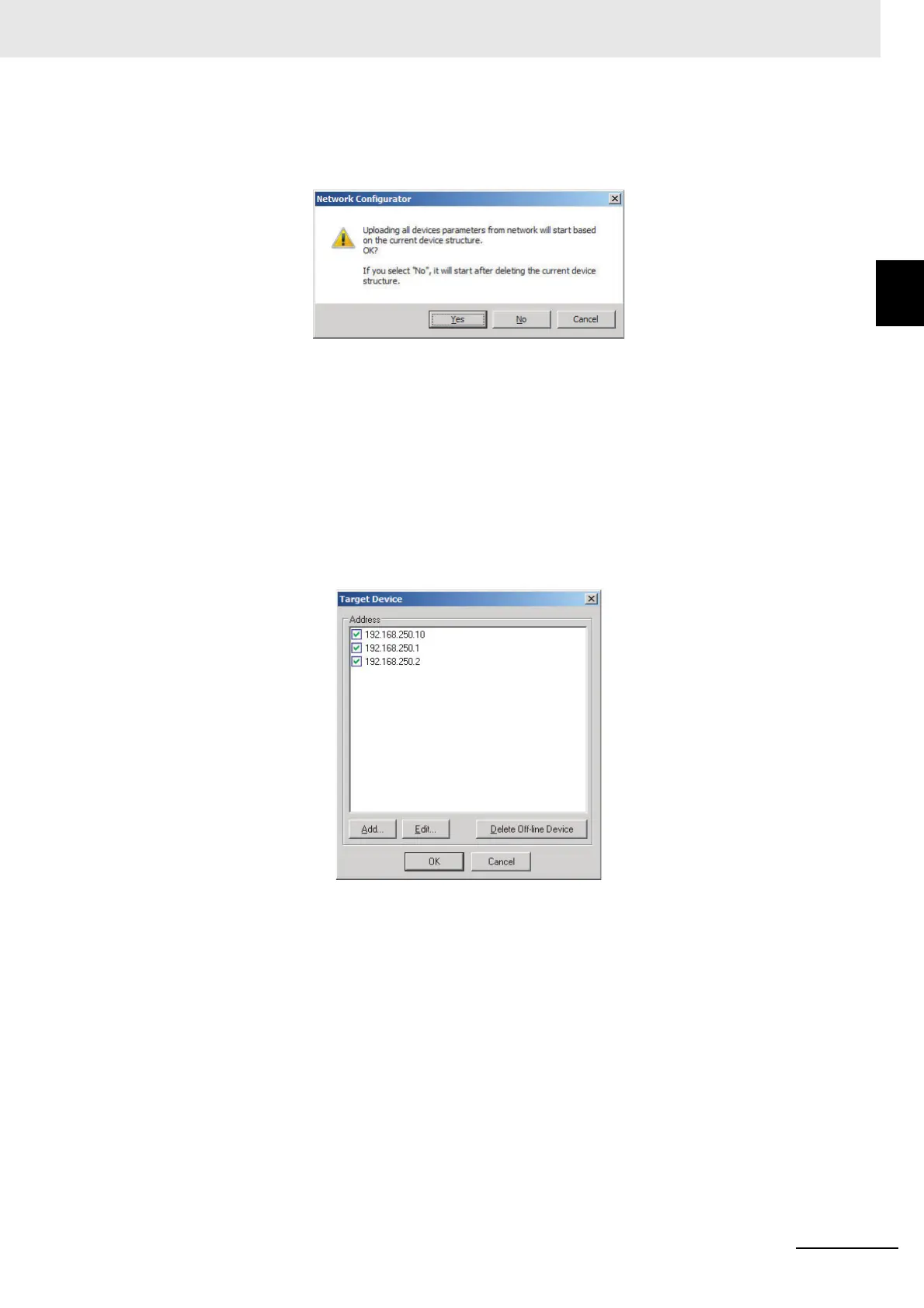

3 If you click the Yes button in step 2, the following dialog box is displayed.
Clicking the Yes button:
Parameters are uploaded only from the devices registered in the Network Configuration Pane.
Parameters are not uploaded from devices that are not registered in the Network Configuration
Pane.
Clicking the No button:
Performing a Batch Upload over the Network Parameters are uploaded from all devices on the
network. The current Network Configuration Information will be lost.
The following dialog box will be displayed. Select the devices for which to upload parameters
and click the OK button.
Clicking the Cancel button:
The upload operation is cancelled. The upload is not performed.
4 If you click the No button in step 2, the following dialog box is displayed.
Select the devices for which to upload parameters and click the OK button.
