7 - 15
7 Wiring
NX-series EtherNet/IP Coupler Unit User’s Manual (W536)
7-2 Connecting the Power Supply and Ground Wires
7

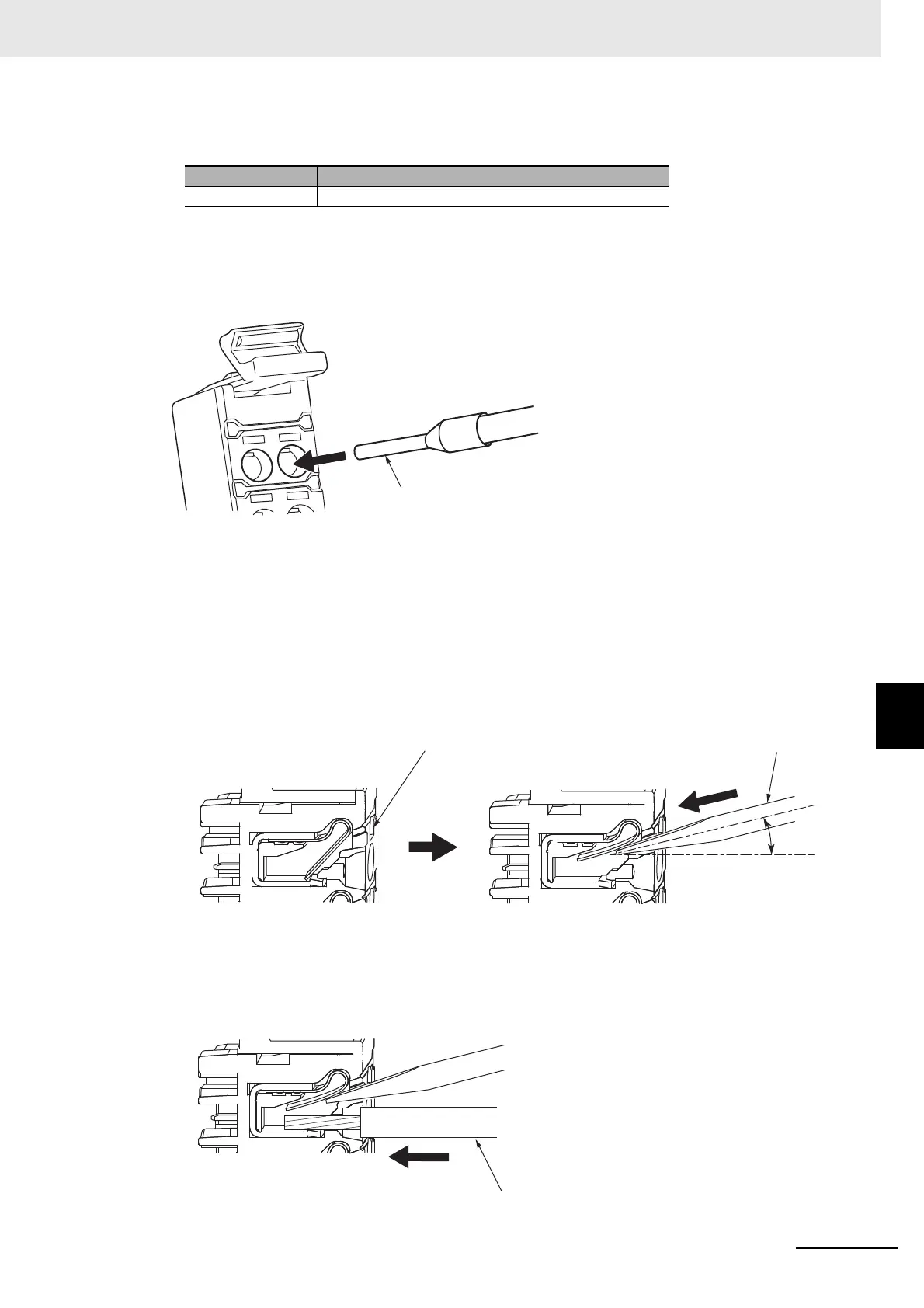

7-2-5 Wiring to the Screwless Clamping Terminal Block
Recommended screwdriver
Connecting Ferrules
Insert the ferrule straight into the terminal hole.
It is not necessary to press a flat-blade screwdriver into the release hole.
After you make a connection, make sure that the ferrule is securely connected to the terminal block.
Connecting Twisted Wires/Solid Wires
Use the following procedure to connect the twisted wires or solid wires to the terminal block.
1 Press the a flat-blade screwdriver diagonally into the release hole.
Press at an angle of 10° to 15°.
If you press in the screwdriver correctly, you will feel the spring in the release hole.
2 Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the
solid wire into the terminal hole.
Insert the twisted wire or the solid wire until the stripped portion is no longer visible to prevent
shorting.
Model Manufacturer
SZF 0-0,4X2,5 Phoenix Contact
10 to 15°
Release hole
Flat-blade screwdriver
1
Twisted wire/Solid wire
2
To Next Page
