7 Wiring
7 - 18
NX-series EtherNet/IP Coupler Unit U
ser’s Manual (W536)
3

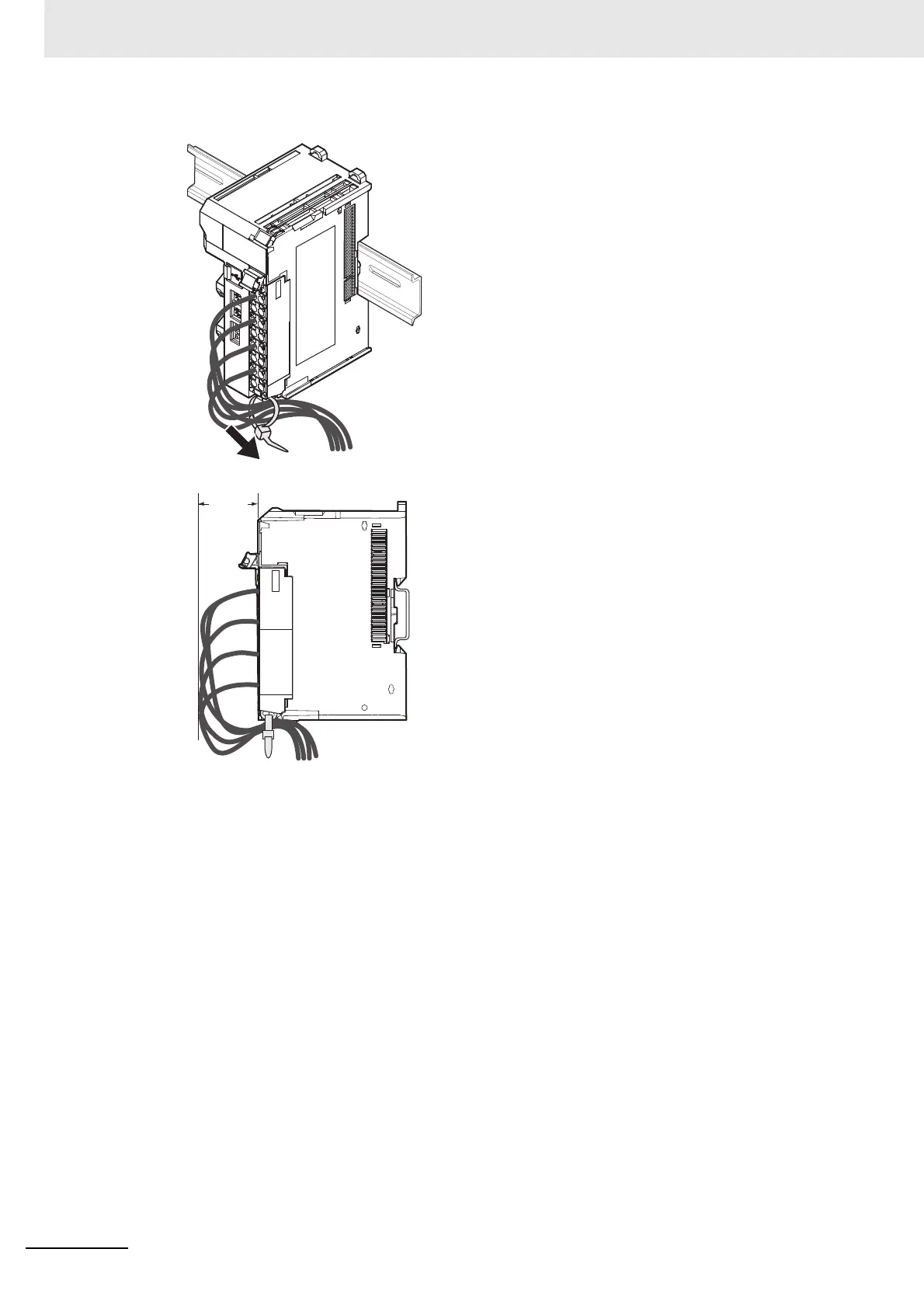

Bundle
the wires with
a cable tie a
nd secure
them to the
screwless cla
mping termin
al block.
Secure wires within the
range of 30 mm fr
om the screwless cla
mping terminal block.
30 mm
155
157
