7 Wiring

7 - 24

NX-series EtherNet/IP Coupler Unit User’s Manual (W536)

Precautions for Correct Use

• OMRON uses the holes other than No. 1 to 6 in the figure on the previous page. If you insert

a Coding Pin into one of the holes used by OMRON on the terminal block side, it would be

impossible to mount the terminal block on a Unit.

• Do not use Coding Pins that have been attached and then removed. If you use them again,

they may fall off.

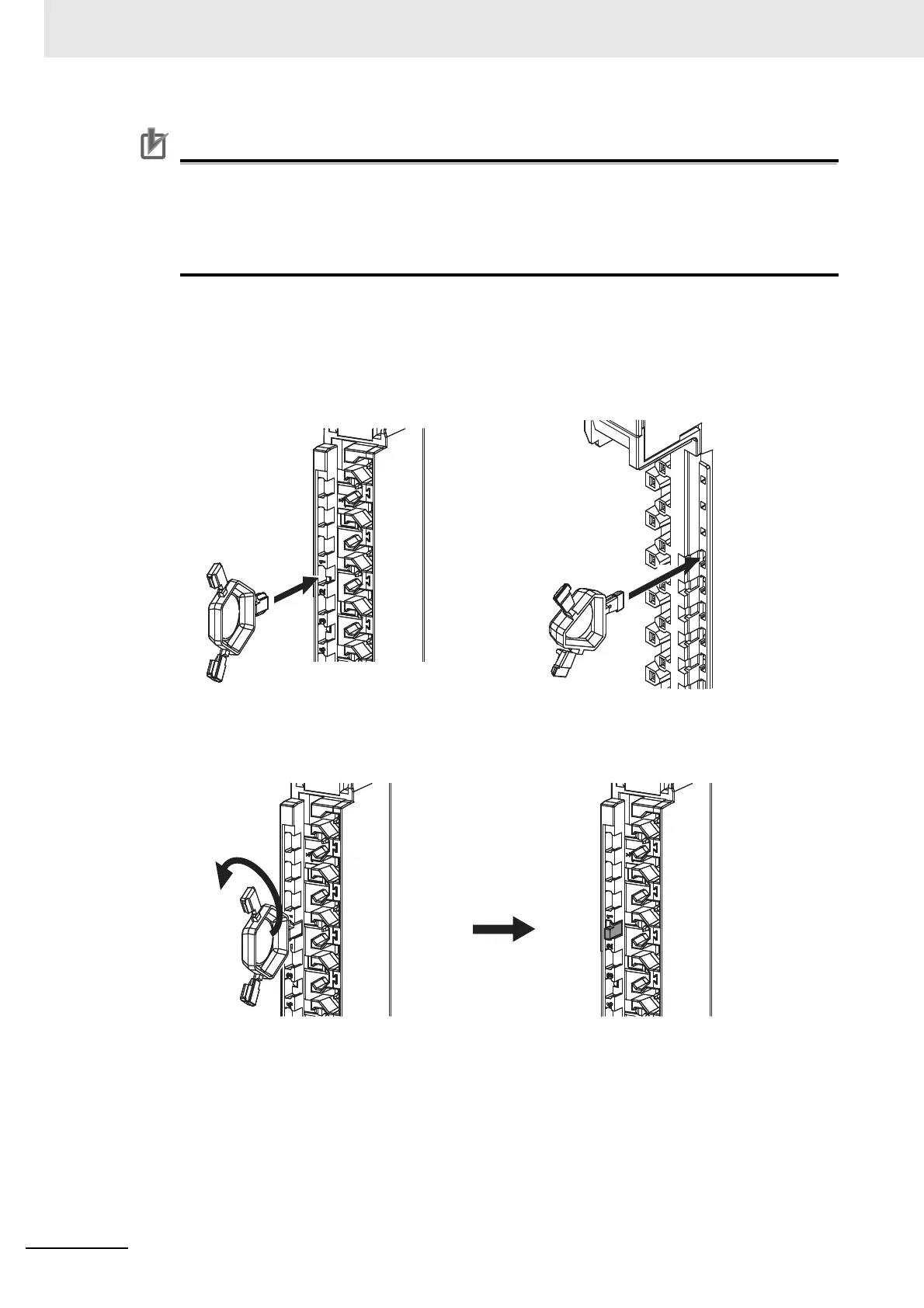

 Inserting the Coding Pins

1 Hold the pins by the runner and insert a pin into one of the incorrect attachment prevention

holes on the terminal block or on the Unit.

2 Rotate the runner to break off the Coding Pin.

Terminal block

Unit
