1
1 EtherNet/IP C
oupler Unit Functions
11
-
1
6
NX-series EtherNet/IP Coupler Unit U
ser’s Manual (W536)

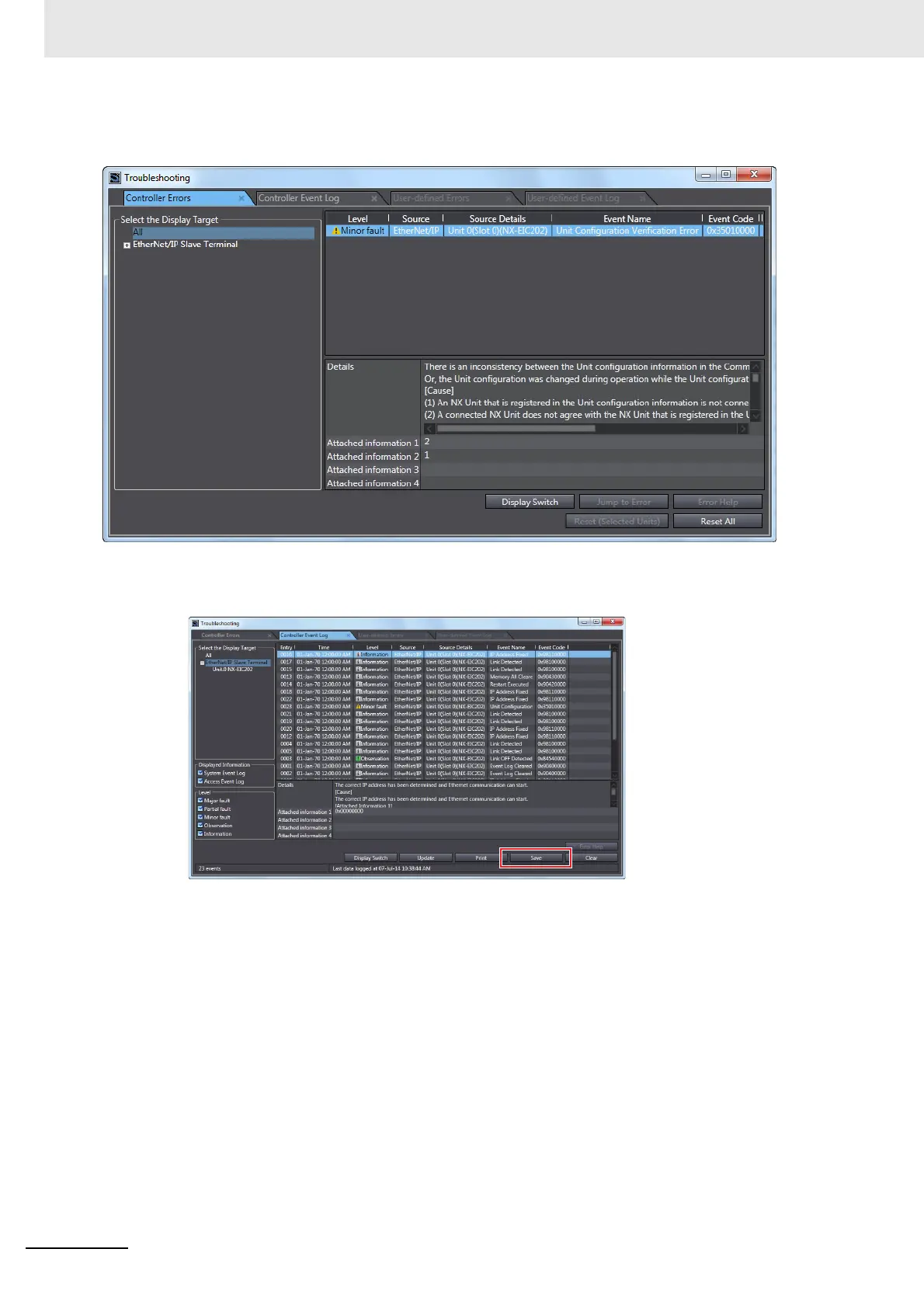

The following T
roubleshooting
Dialog Box is displayed.
2
In the Select the Display T
arget Area of the Co
ntroller Event Log T
ab Page, select the Unit for
which to export the events and click the
Save
button.
The Save Dialog Box is displayed.
3
Input the file name,
and then click the
Save
button.
The Controller event logs are saved
in CSV format.
271
