Wiring Section 2-3

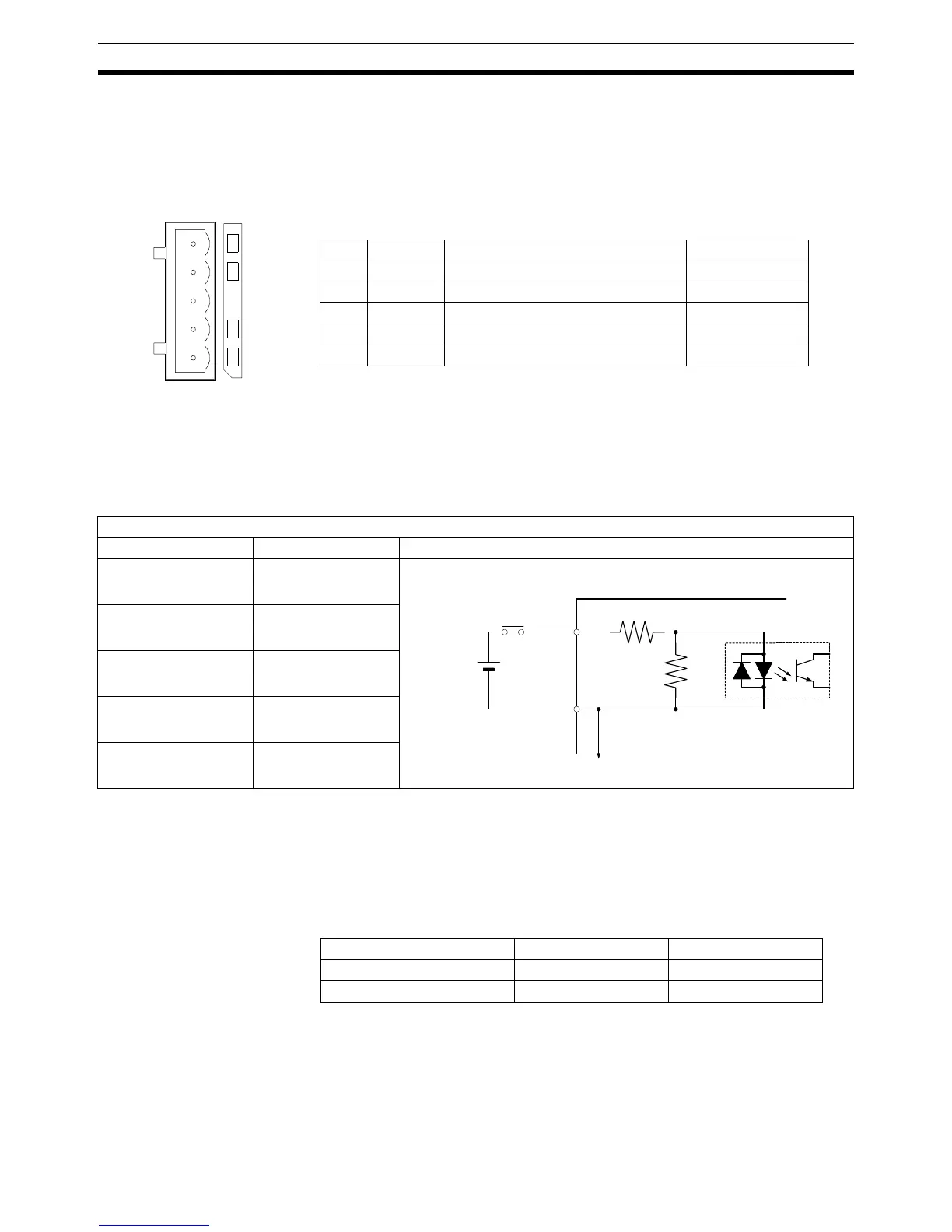

2-3-3 DeviceNet Connection
This section explains the pin allocation of the DeviceNet connector for the
DeviceNet network. For further details on how to connect the DeviceNet net-
work, refer to DeviceNet Operation Manual (W267).
2-3-4 I/O Specifications
The following tables provide specifications and circuits for the I/O and
Encoder connections.
Digital Inputs
Input Response times
The response times given in the following table are the times between the
change in the input voltage and the corresponding change in the IN parame-
ter.
These times are depending on the MC Unit’s Servo Period and the priority of
the corresponding BASIC task and they include the physical delays in the
input circuit.
Print Registration delay time
The print registration is used to capture position data in hardware triggered by
either a digital input or the Z-marker encoder signal. For the encoder axis 1
the print registration delay times are given by
Pin Symbol Signal Color of Cable
1 V+ Power line, positive voltage Red
2 CAN-H Communications line, high White
3 Shield Shield -
4 CAN-L Communications line, low Blue
5 V- Power line, negative voltage Black
Digital inputs: I0 to I7
Item Specification Circuit Configuration
Ty pe P NP
Maximum voltage
24 VDC + 10
%
Input current 7.0 mA at 24 VDC
ON voltage 11 V min.
OFF voltage 1 V max.
0V common for input circuits
0V_IN 17
I0/R0 9
Motion Control Unit
External power
supply 24V
3.3Ω
3.3kΩ
Task Priority \ Servo Period 0.5 ms 1.0 ms
High Priority 1.8 ms (max.) 2.3 ms (max.)
Low Priority 2.8 ms (max.) 3.3 ms (max.)
To Next Page
