3-18
3-1 Servo Drive Specifications
3
Specifications

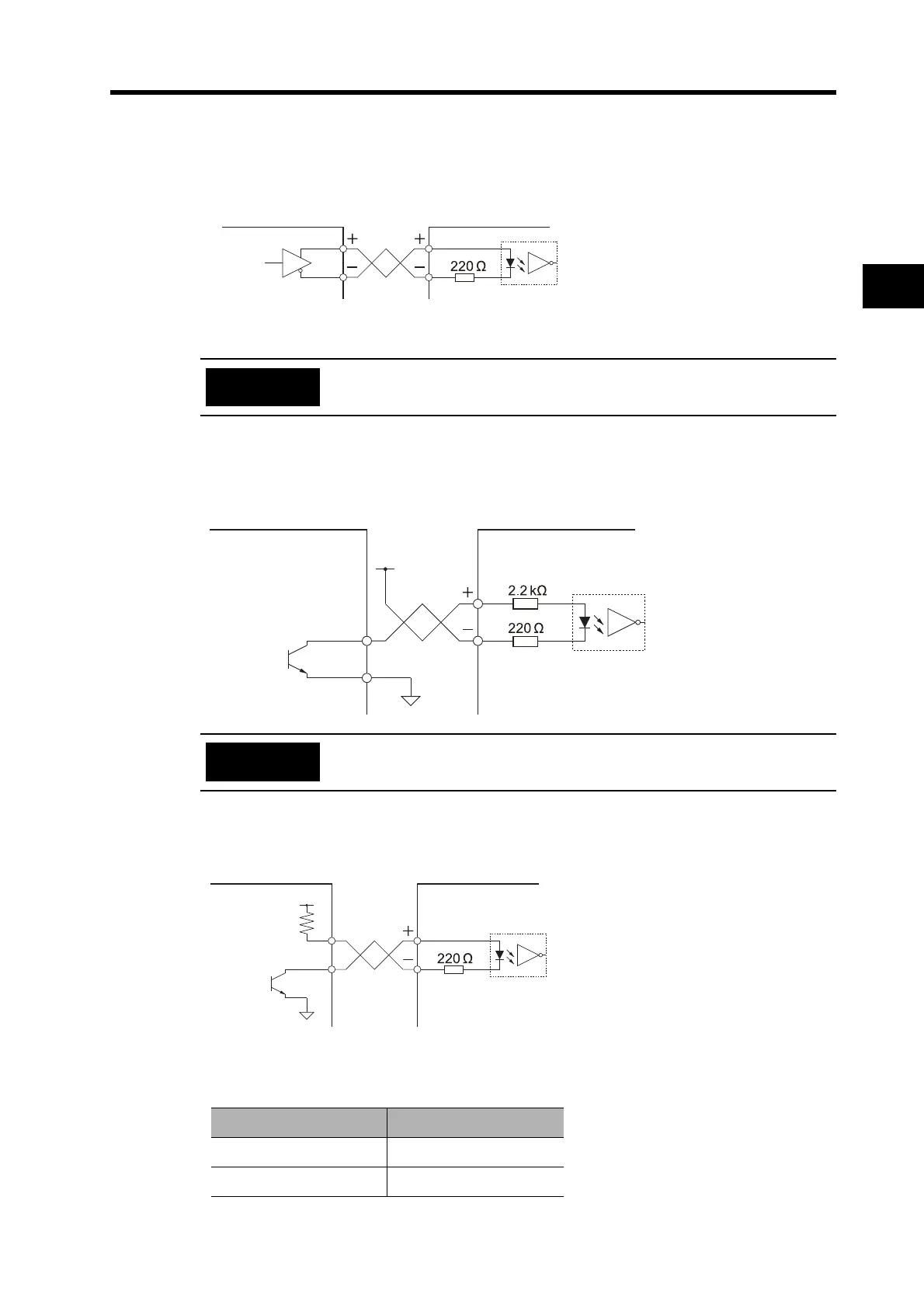

Position Command Pulse Input (Photocoupler Input)
Line Driver Input (500 kpps Maximum)
(+CW:3, CW:4, +CCW:5, CCW:6)
Open-collector Input
External 24-V power supply without a current-limiting resistor (200 kpps maximum)
(+24VCW: 1, CW: 4, +24VCCW: 2, CCW: 6)
External control power supply (200 kpps maximum)
(+CW: 3, CW: 4, +CCW: 5, CCW: 6)
Select a resistance R value so that the input current will be from 7 to 15 mA. Refer to the following
table.
The twisted-pair cable should not exceed 10 m in length.
The open-collector wiring should not exceed 2 m in length.
VCC R
24 V 2 kΩ (1/2 W)
12 V 1 kΩ (1/2 W)
Input current: 9 mA, 3 V
Servo Drive
Controller
Applicable line driver:
AM26LS31A or
the e
q
uivalent
Precautions
for Correct Use
Vcc 24 V
Servo DriveController
Precautions
for Correct Use
Input current: 7 to 15 mA
Vcc
R
Servo DriveController
