3-4 Cable and Connector Specifications
3
Specifications
Connector Terminal Block Cables (XW2Z-@J-B24)
This Cable is for the connector terminal block of the Servo Drive's control I/O connector (CN1). All
of the pins in the control I/O connector (CN1) can be converted to terminals on the terminal block.
Cable Models

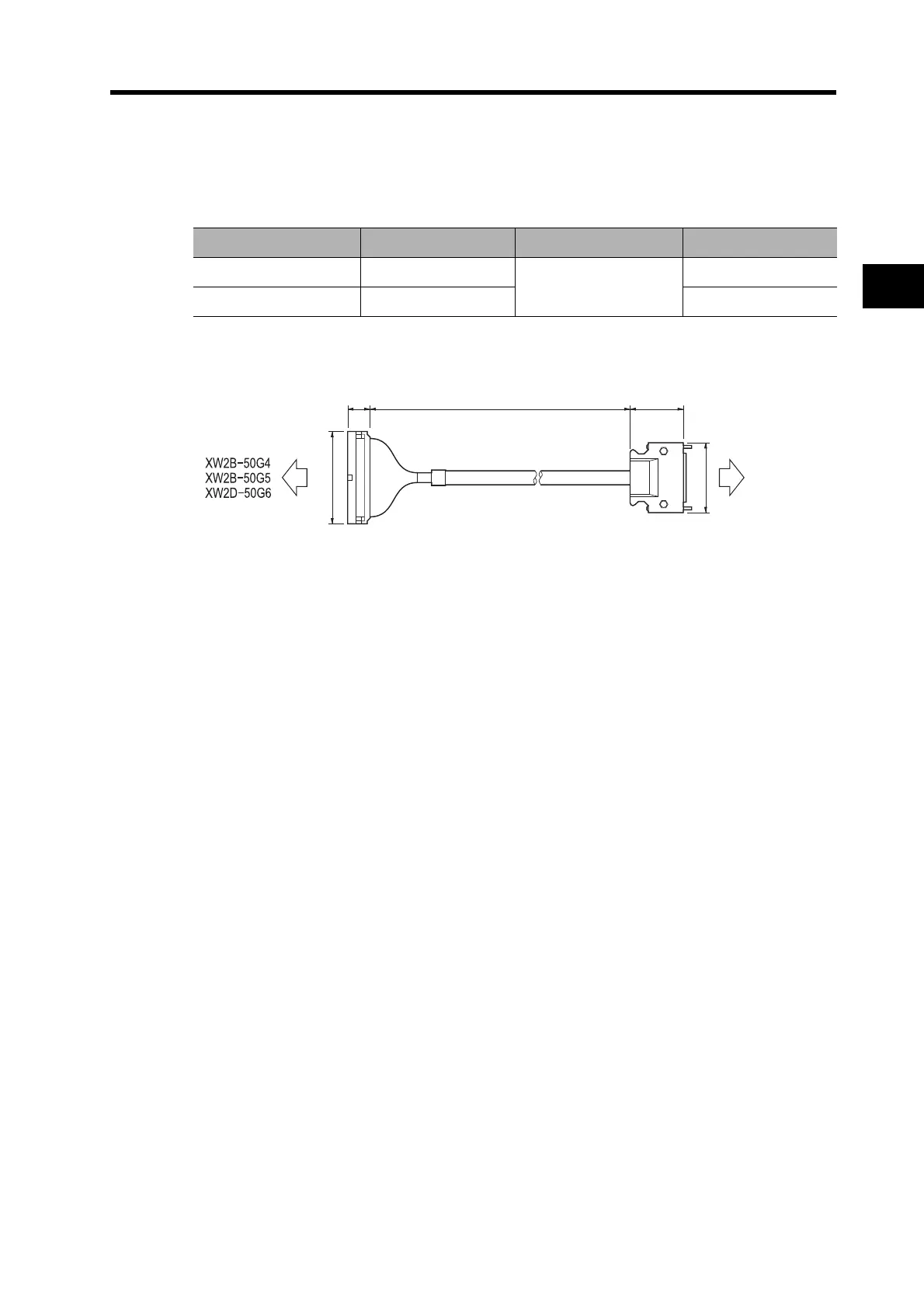

Connection Configuration and Dimensions
Model Length (L) Outer diameter of sheath Weight
XW2Z-100J-B24 1 m
11.2 dia.
Approx. 0.2 kg
XW2Z-200J-B24 2 m Approx. 0.4 kg
Connector terminal
block
52.4
39L16.1
68.1
t = 18t = 6.1
Servo Drive
R88D-G@
To Next Page
