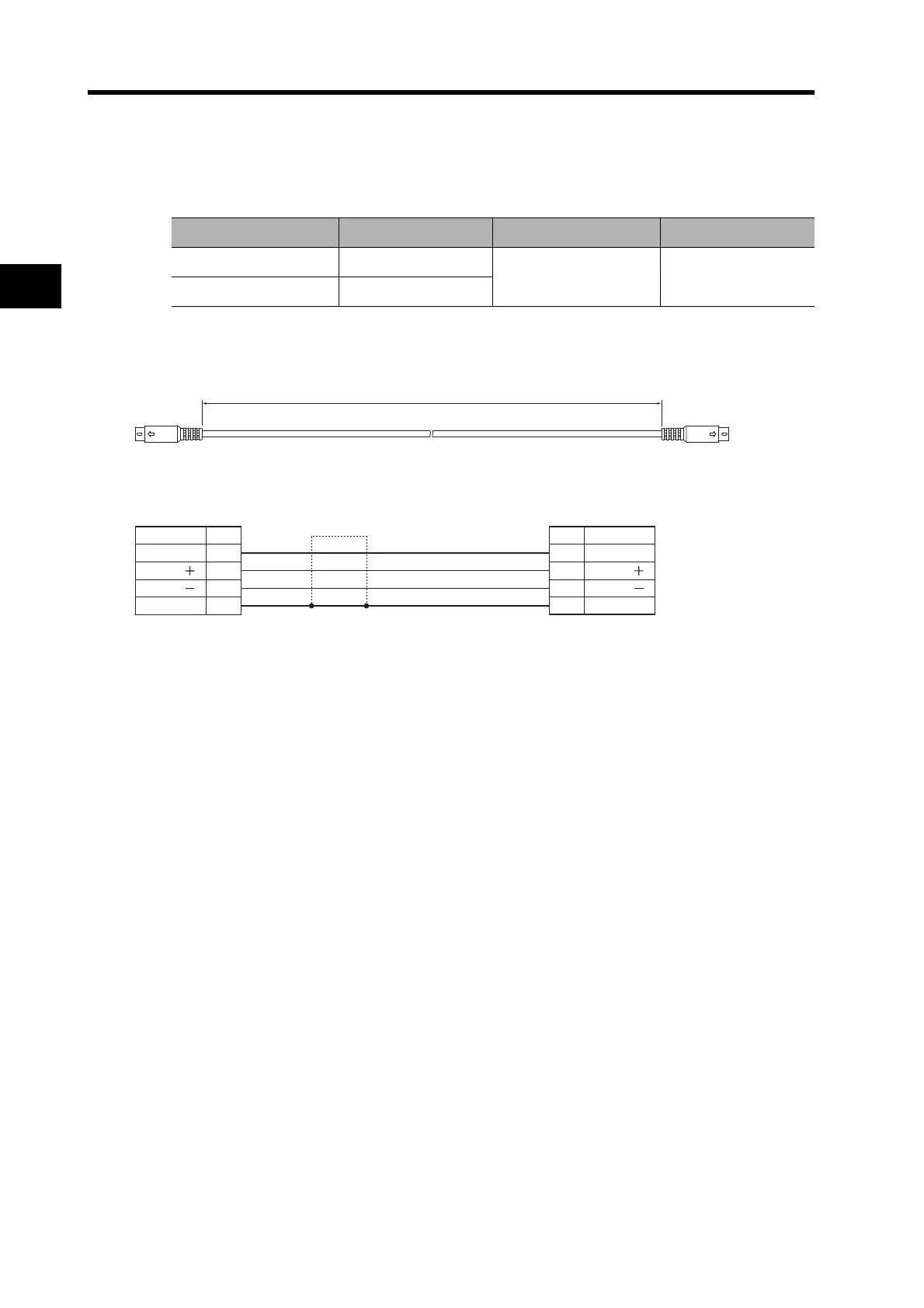

Page #186 background image
3-85
3-4 Cable and Connector Specifications
3
Specifications
Communications Cables
Cable Models
Cables for RS-485 Communications
Connection Configuration and Dimensions
Wiring
Model Length (L) Outer diameter of sheath Weight
R88A-CCG0R5P4 0.5 m
4.2 dia. Approx. 0.1 kg
R88A-CCG001P4 1 m
L
No.
GND 4
RS485 7
RS485 8
FG
Cable: AWG28 × 3C UL20276
No.
4
7
8
GND
RS485
FG
RS485
Shell
Shell
Servo DriveServo Drive
Signal
Signal
