6-4 Setting the Mode
6
Operation
Auxiliary Function Mode
Auxiliary Function Mode includes the alarm reset, automatic offset adjustment, absolute encoder
reset, and jog operation.
Displaying Auxiliary Function Mode
Alarm Reset
1. Executing Alarm Reset
2. Returning to Auxiliary Function Mode

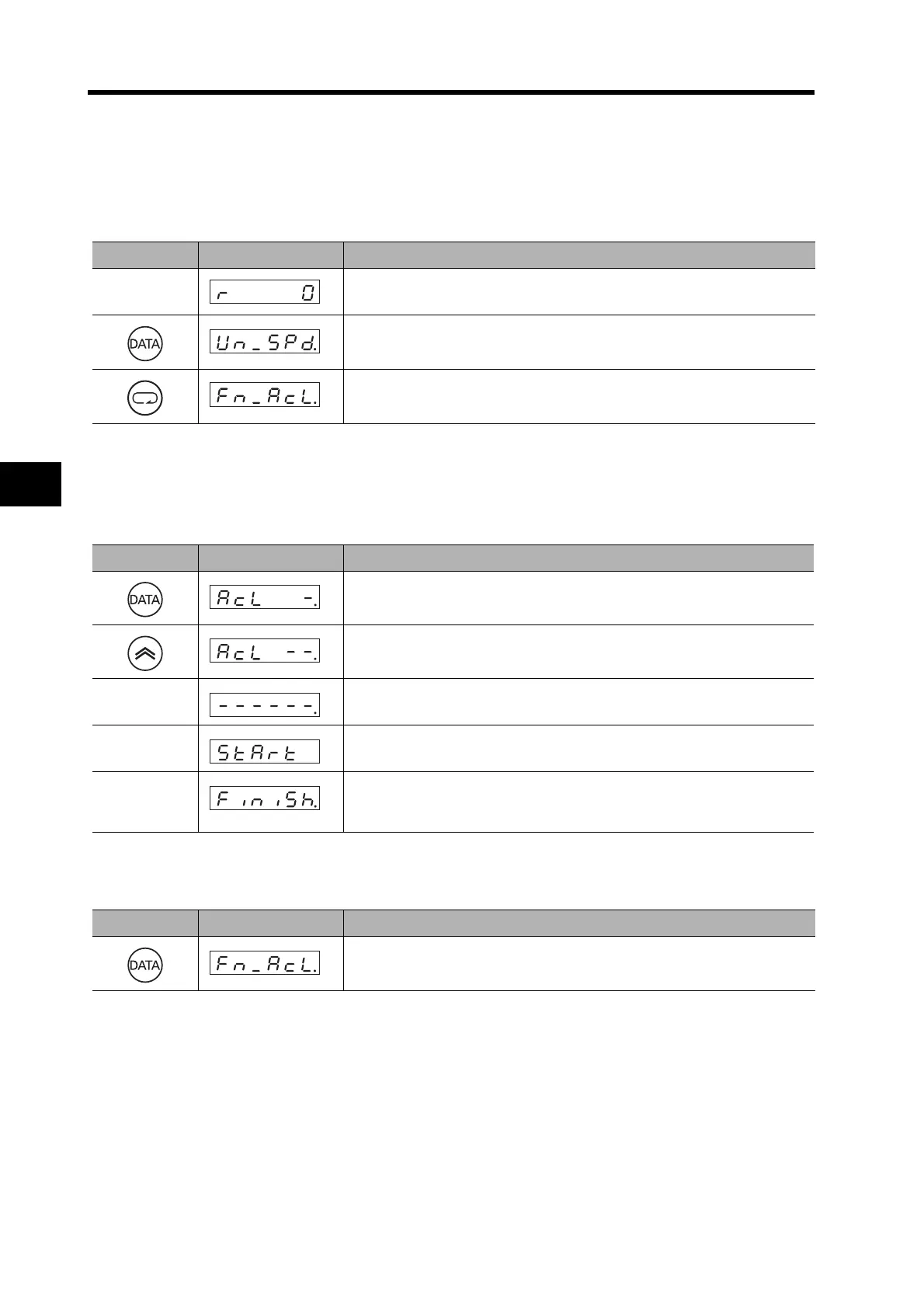

Key operation Display example Explanation
The item set for the Default Display (Pn01) is displayed.
Press the Data key to display Monitor Mode.
Press the Mode key four times to display Auxiliary Function Mode.
Key operation Display example Explanation
Press the Data key to enter Alarm Reset Mode.
Press and hold the Increment key until “Start” is displayed.
The bar indicator will increase when the key is pressed for 5 s or longer.
The bar indicator will increase.
Alarm reset will start.
This display indicates a normal completion.
“Error” will be displayed if the alarm could not be reset. Reset the power
supply to clear the error.
Key operation Display example Explanation
Press the Data key to return to Auxiliary Function Mode.
