3-96
3-4 Cable and Connector Specifications
3
Specifications

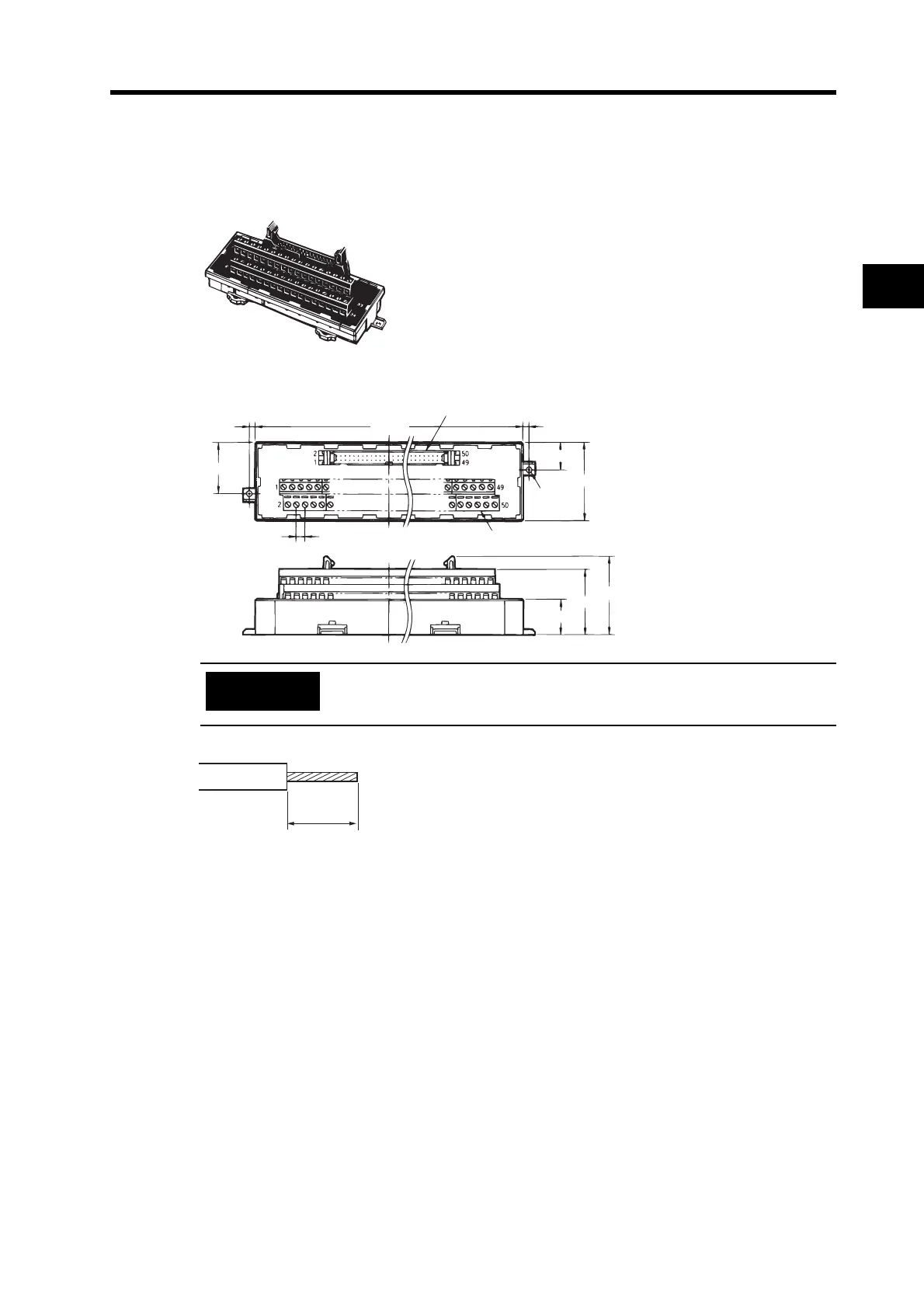

Connector-Terminal Block Conversion Unit
The Connector-Terminal Block Conversion Unit can be used along with a Connector Terminal Block
Cable (XW2Z-@J-B24) to convert the Servo Drive's control I/O connector (CN1) to a terminal block.
XW2B-50G4 (M3 screw terminal block)
• Dimensions
• Use 0.30 to 1.25 mm
2
wire (AWG22 to AWG16).
• The wire inlet is 1.8 mm (height) × 2.5 mm (width).
• Strip the insulation from the end of the wire for 6 mm as shown below.
3.5
15.5
45
3.5
29.5
5.08
20.5
38.1
(45.3)
157.5
Flat cable connector (MIL plug)
Two,
3.5 dia.
Terminal block
Precautions
for Correct Use
6 mm
To Next Page
