3-4 Cable and Connector Specifications
3
Specifications
General-purpose Control Cables (R88A-CPG@S)
A General-purpose Control Cable connects to the Servo Drive's control I/O connector (CN1). The
connector for the controller is not provided. When connecting to a Position Control Unit which
doesn’t have a specified cable or connecting to another company’s controller, prepare wiring suited
for the controller to be connected.
• When connecting to a controller which doesn’t have a specified cable, either use a General-
purpose Control Cable or a Connector Terminal Block Cable and a Connector Terminal Block.
Cable Models

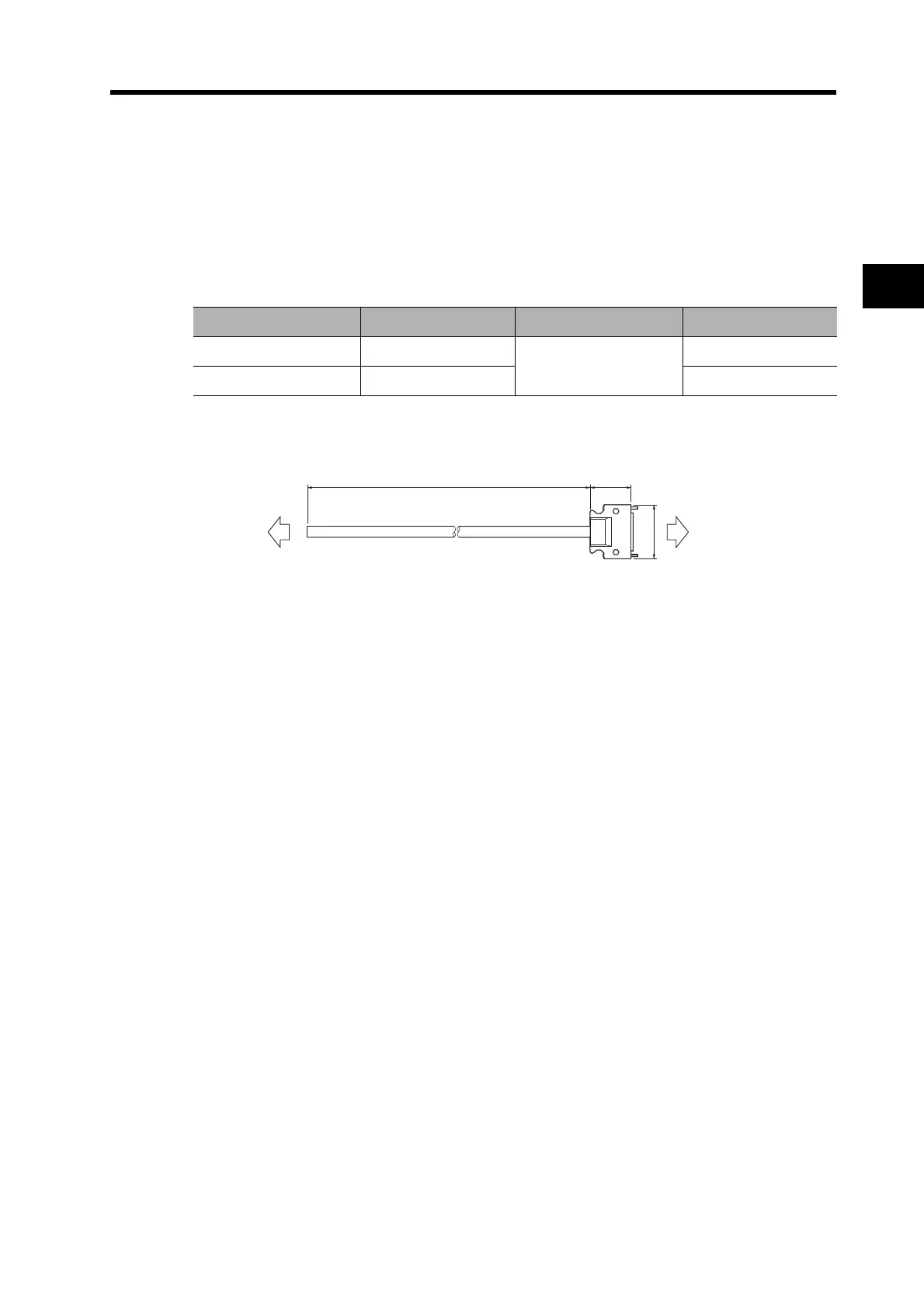

Connection Configuration and Dimensions
Model Length (L) Outer diameter of sheath Weight
R88A-CPG001S 1 m
12.8 dia.
Approx. 0.3 kg
R88A-CPG002S 2 m Approx. 0.6 kg
Controller
52.4
39L
t = 18
Servo Drive
R88D-G@
