6-4 Setting the Mode
6
Operation
Copying from the Parameter Unit to the Servo Drive
1. Displaying Copy Mode
2. Checking the Servo Drive Model Code
3. Different Model Codes

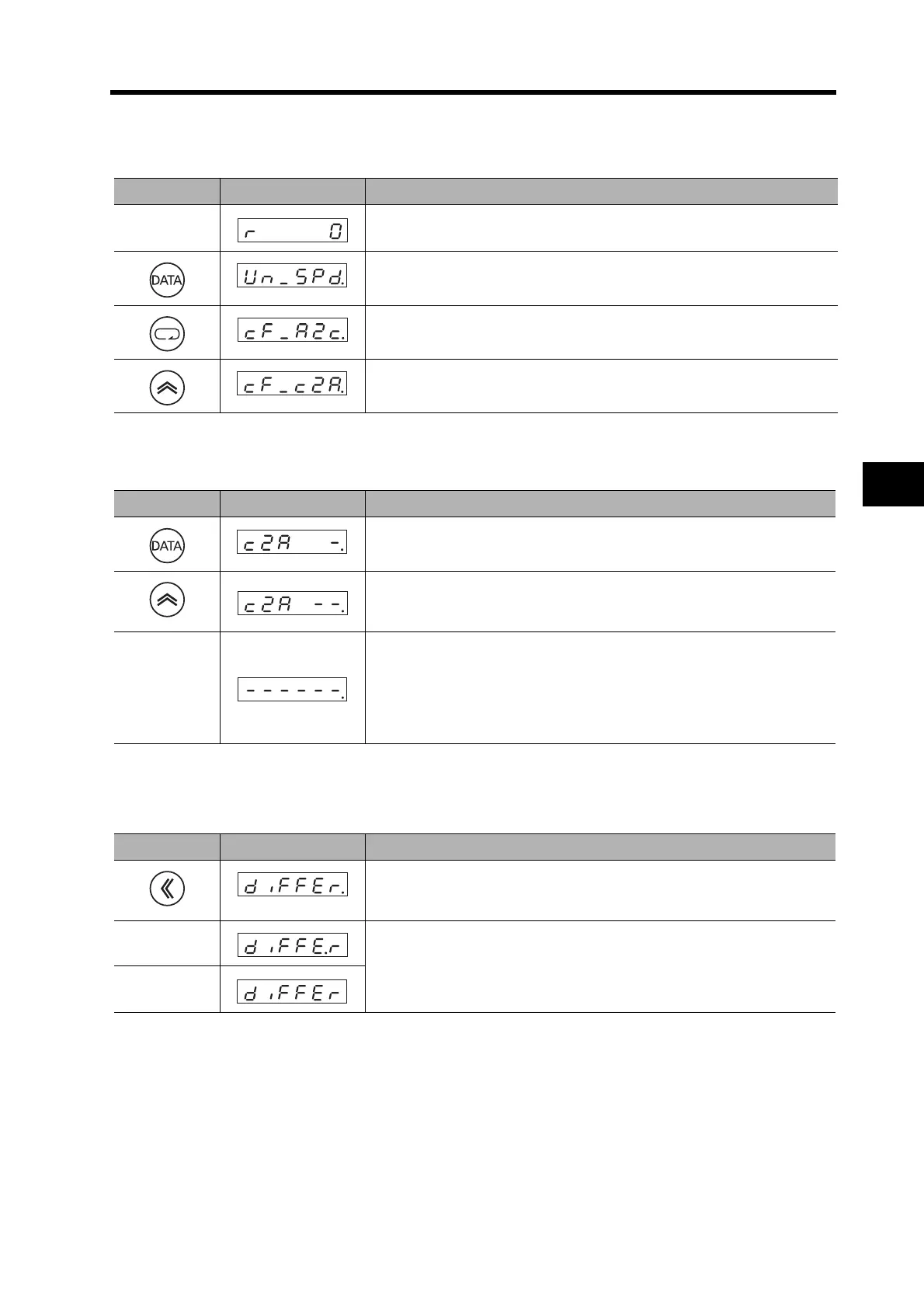

Key operation Display example Explanation
The item set for the Default Display (Pn01) is displayed.
Press the Data key to display Monitor Mode.
Press the Mode key five times to display Copy Mode.
Press the Increment key to switch to the copy display for copying from the
Parameter Unit to the Servo Drive.
Key operation Display example Explanation
Press the Data key to enter Copy Mode.
Press and hold the Increment key until “EEP_CH” is displayed.
“DIFFER” will be displayed if a different model code is entered.
The bar indicator will increase when the key is pressed for 3 s or longer.
The bar indicator will increase.
The Servo Drive model code is being checked. If a different model code has
been entered, refer to 3. Different Model Codes below to perform the
procedure.
If the model codes match, the display will proceed to the display in 4. Exe-
cuting Copying.
Key operation Display example Explanation
The decimal point will move to the left when the Shift key is pressed for 3 s
or longer.
The model codes are being matched.
Press the Data key to cancel copying before completion.
To Next Page
