4-1 Installation Conditions
4
System Design
Installing the Decelerator

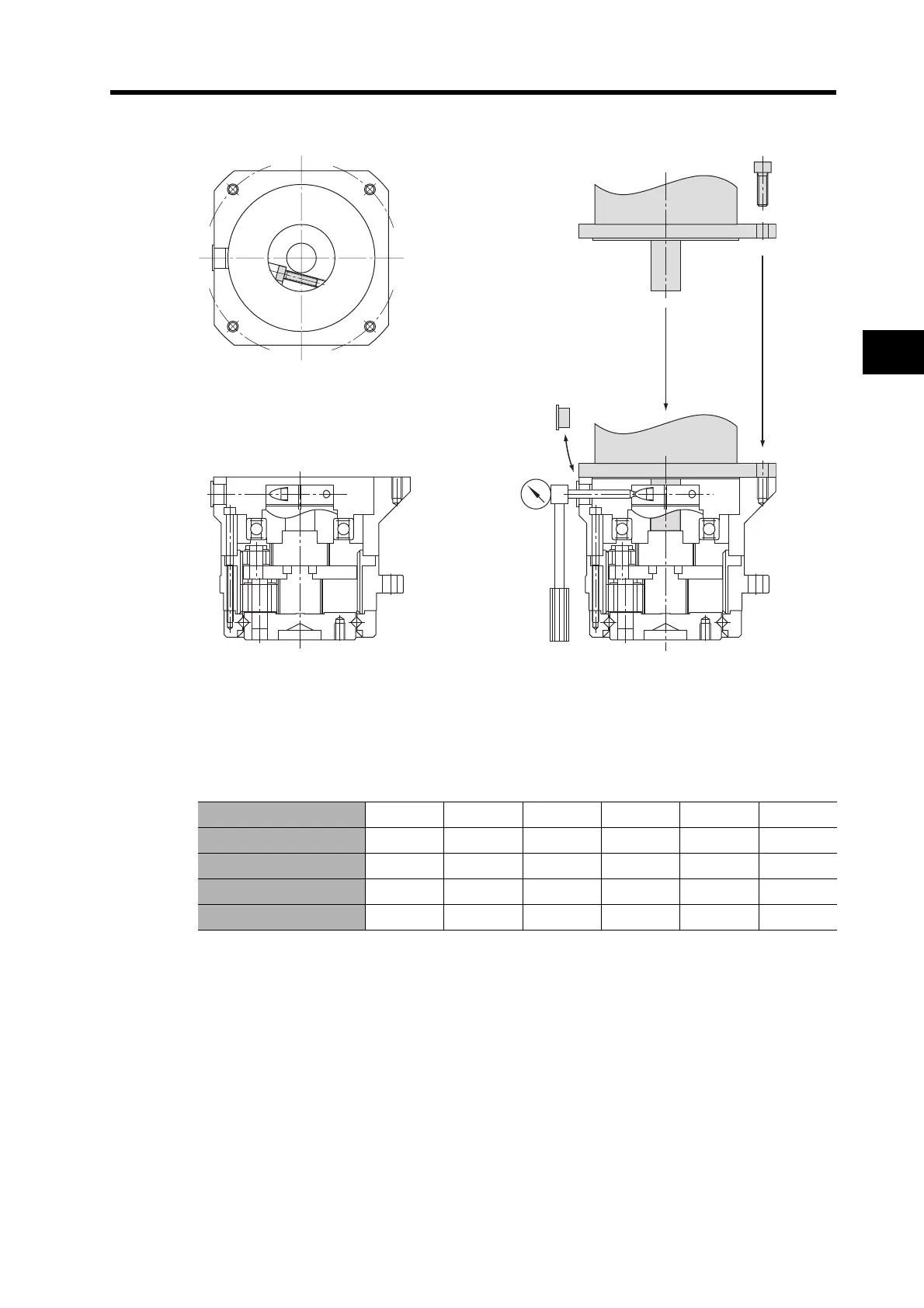

When installing the R88G-HPG@@@, first make sure that the mounting surface is flat and that there
are no burrs on the tap sections, and then bolt on the mounting flanges.
Mounting Flange Bolt Tightening Torque for Aluminum
R88G-HPG 11 14 20 32 50 65
Number of bolts 4 4 4 4 4 4
Bolt size M3 M5 M8 M10 M12 M16
Mounting PCD (mm) 46 70 105 135 190 260
Tightening torque (N·m) 1.4 6.3 26.1 51.5 103 255
E
D
C
A
B
F
