4-3 Wiring Conforming to EMC Directives
4
System Design
3G3AX-NF003/-NF004/-NF005/-NF006
Model

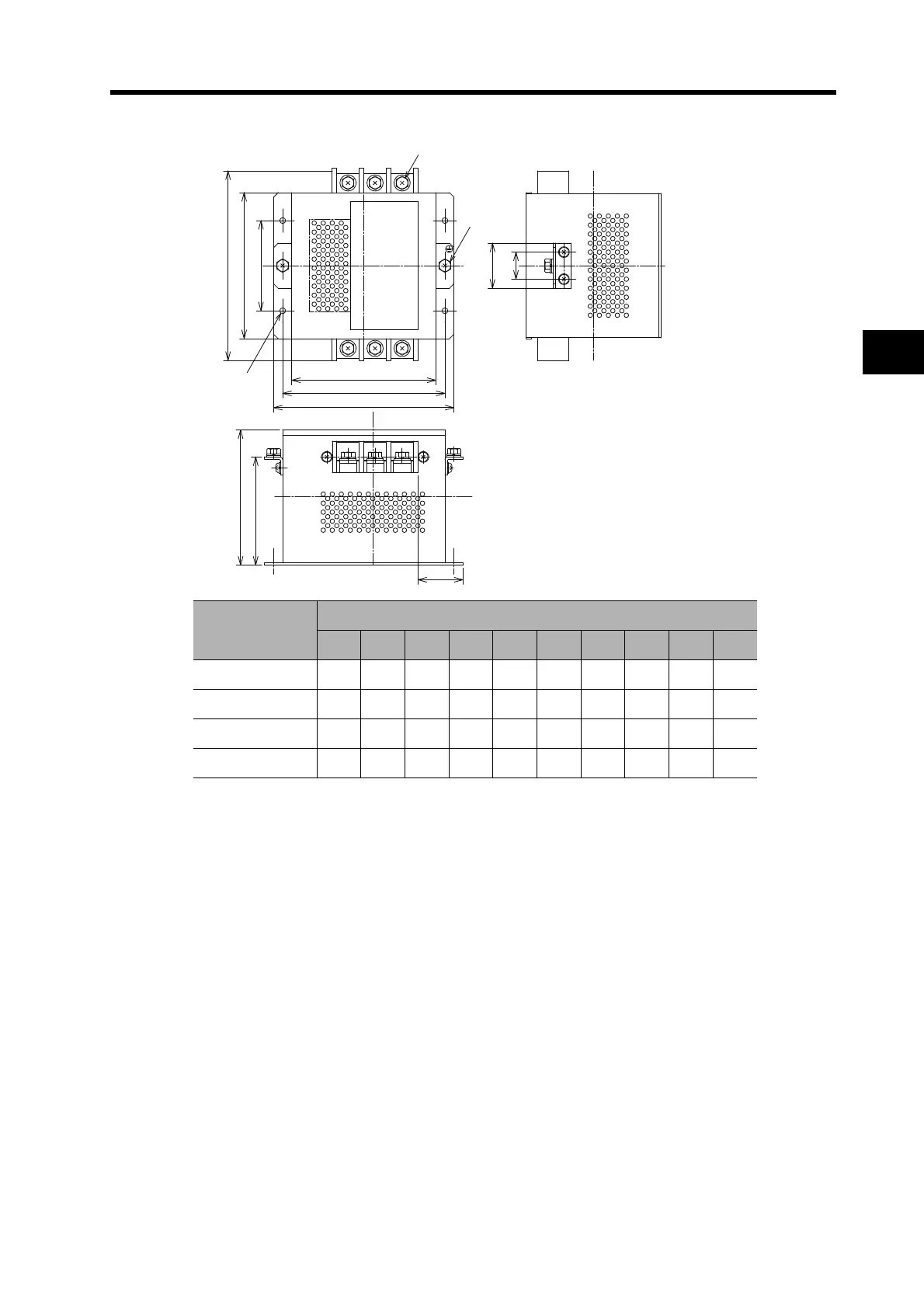

Dimensions (mm)
A B C E F H J N O P
3G3AX-NF003 160 145 130 80 112 120 --- --- M4 154
3G3AX-NF004 200 180 160 100 162 150 120 M5 M5 210
3G3AX-NF005 220 200 180 100 182 170 140 M6 M6 230
3G3AX-NF006 220 200 180 100 182 170 140 M8 M8 237
C
B
A
P
F
E
Six, O
Two, N
50 30
50
H
J
Four, 6.5 dia.
